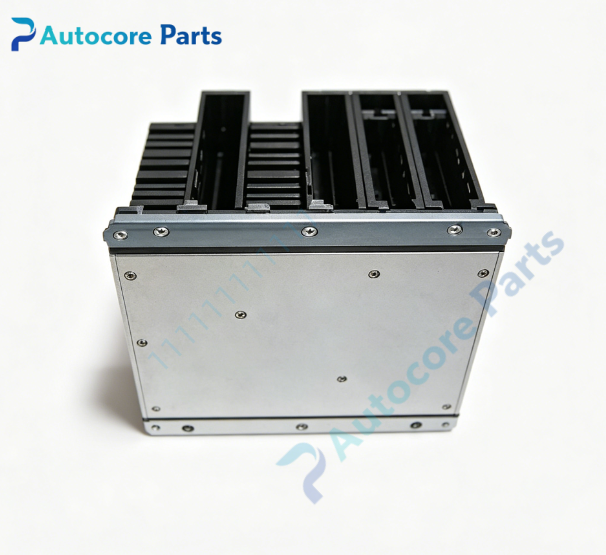

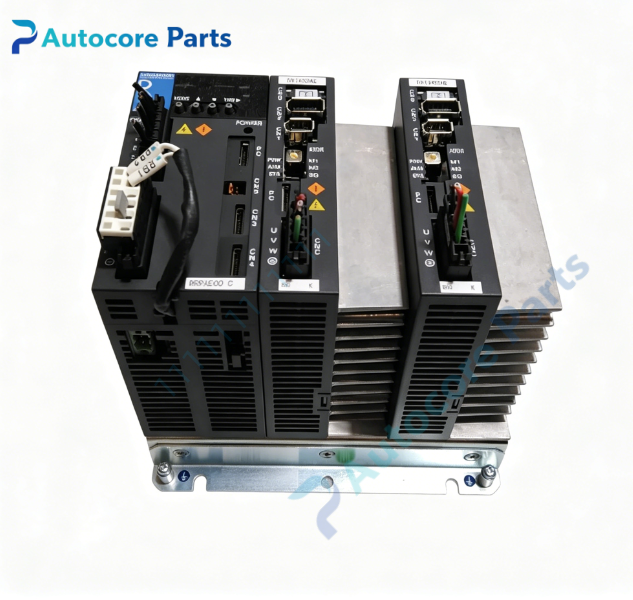

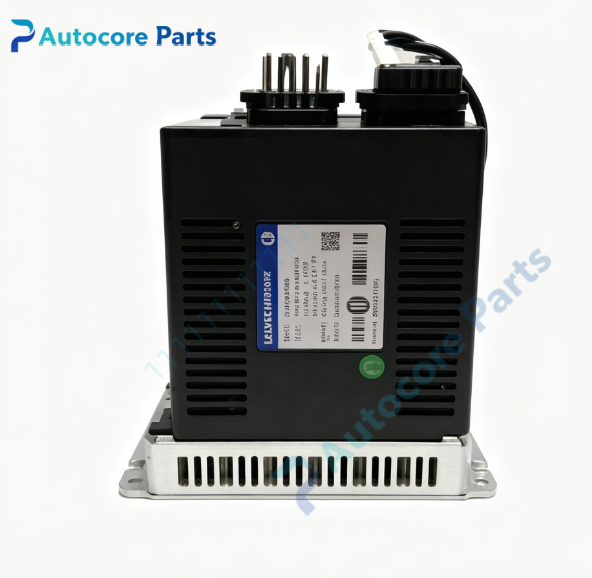

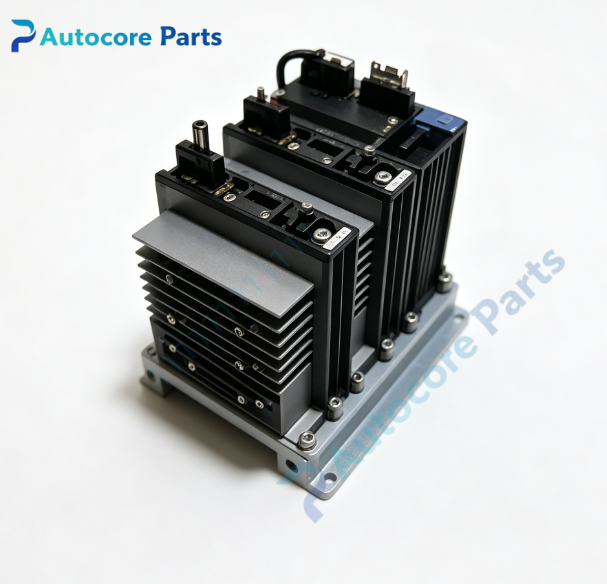

Sanyo Denki RRPAE00 Servo Amplifier

Module Feature

Sanyo Denki RRPAE00 belongs to SANMOTION RR series digital AC servo amplifier. AC200V single/three phase input. It adopts current and speed dual closed-loop vector control algorithm, fast dynamic response and good low speed stability. Supports position, speed, torque three control modes, pulse train and analog command input. Built-in multi-protection functions including overcurrent, overvoltage, undervoltage, overheat, overload, encoder fault and emergency stop protection. Compact DIN rail mounting structure, easy cabinet installation and maintenance. Widely used for precision motion axis in semiconductor wet bench and chemical delivery automation equipment.

Working principle

The upper motion controller transmits motion instructions to this servo amplifier. The drive converts AC200V input power into three-phase variable frequency AC power to drive matched SANMOTION series servo motors. Encoder feeds back real-time rotor position and speed signal to amplifier, high speed digital closed-loop calculation adjusts output current to realize precise torque, speed and position control. When fault detected, the amplifier will cut off power output immediately and trigger alarm signal.

Onboard components

Power IGBT module,digital main control PCB,pulse / analog command terminal block,encoder feedback connector,AC power terminal,front panel LED status indicators,emergency stop terminal

LED indicators

Front panel LED indicators for power, servo ready, servo enable, fault alarm and communication status.

Hardware self-diagnosis

Visual inspection of power terminals and encoder connectors; power-on self-test; input voltage detection; motor wiring continuity inspection; read alarm code and verify signal loop.

Programming software

Sanyo Denki SANMOTION servo setup software for motor parameter auto recognition, servo gain tuning and alarm log reading.

Electrical & Process Parameters

Input voltage:AC200V class (single / 3 phase) Control mode:Position / Speed / Torque Command interface:Pulse train, analog signal Cooling:Natural air cooling Protection:Overcurrent, overvoltage, undervoltage, overheat, overload, encoder fault, E-stop Mounting:DIN rail

Mechanical & Structure

Mounting:Cabinet DIN rail installation Protection class:IP20

Environmental

Operating temperature:0℃ ~ +50℃ Ambient humidity:5~95% non-condensing Certification:CE compliant Status:Sanyo Denki SANMOTION RR series AC servo amplifier

System compatibility

Compatible with Sanyo Denki SANMOTION RM / R2 series servo motors for automation precision axis positioning.

Function

RRPAE00 servo amplifier manufactured by Sanyo Denki. It provides power driving and closed-loop motion control for matched servo motors to realize high precision positioning. Improper wiring, mechanical jam or wrong parameter setting will trigger servo alarm and stop axis movement. It is compact motion control unit for semiconductor wet bench and chemical delivery automation equipment.

Installation

Follow lockout/tagout safety procedure before installation. Power off the whole servo system completely. Mount servo amplifier on DIN rail and reserve enough heat dissipation clearance. Wire AC power cable, motor power cable and encoder feedback cable. Connect control signal and emergency stop circuit. Configure servo parameters via SANMOTION software, perform axis jog test and positioning verification before formal operation.

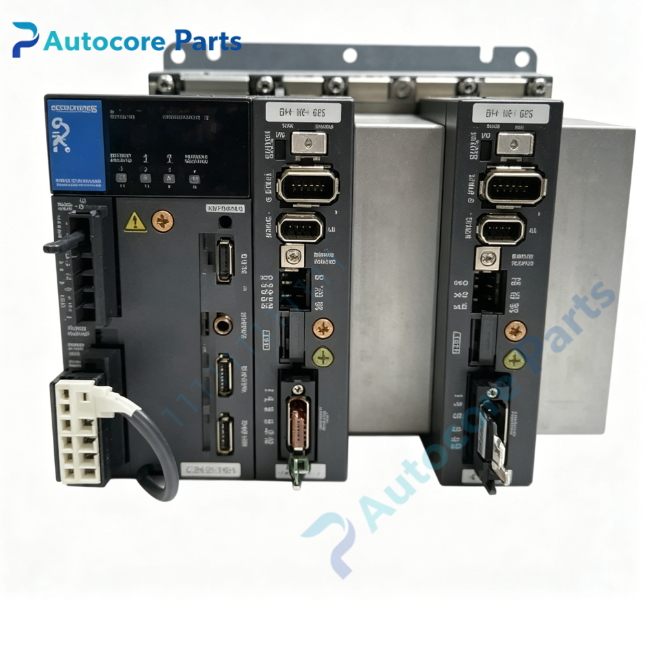

InterfaceAC power input terminal, motor power output terminal, encoder feedback connector, pulse/analog signal terminal block, emergency stop terminal, front LED indicators on housing of RRPAE00.

Diagnostic

Servo not ready:Power supply missing or internal hardware damage.

Motor no rotation:Servo enable signal missing, wiring error or incorrect motor parameters.

Overload alarm:Mechanical jam, overload or motor winding defect.

Encoder alarm:Cable damage, poor contact or encoder failure.

Product Brief

RRPAE00 Sanyo Denki SANMOTION RR series AC servo amplifier,AC200V class,digital dual closed-loop control,supports pulse/analog command,DIN rail mount,matching RM/R2 series servo motors,for semiconductor wet bench and chemical delivery precision motion axis control.
