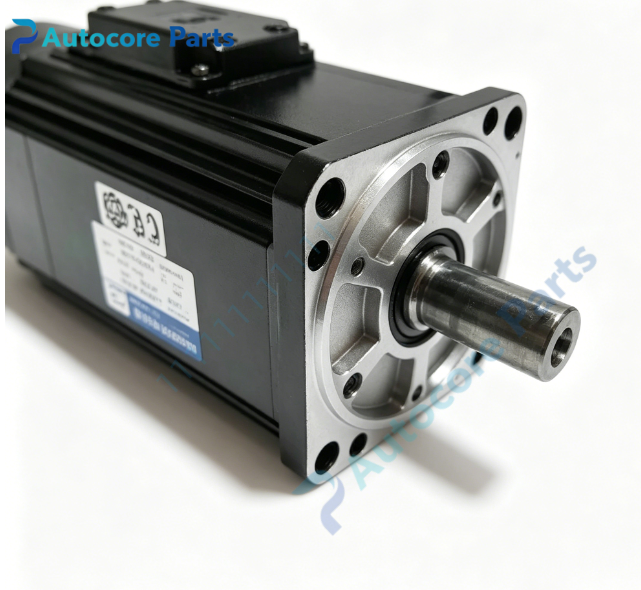

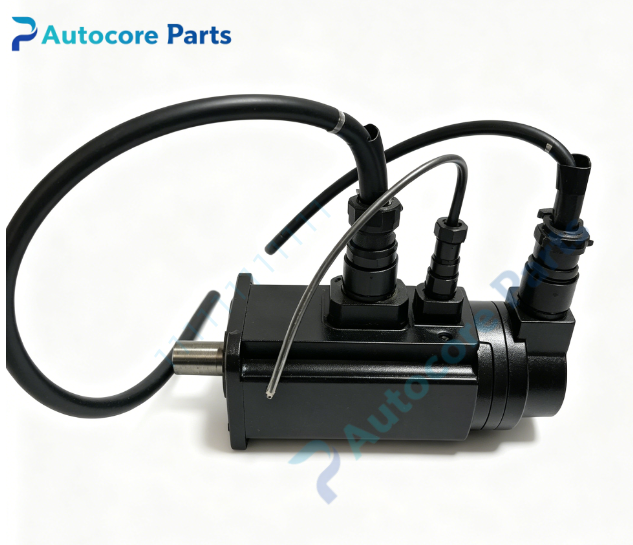

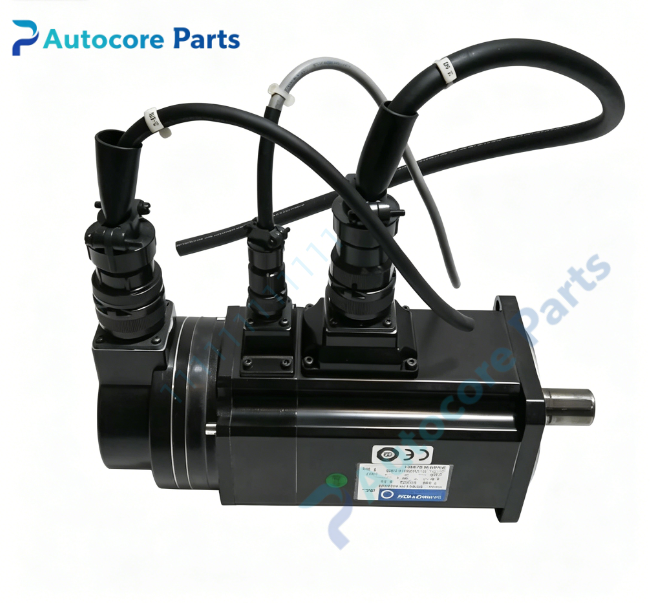

Sanyo Denki R2AA06040FBP11 AC Servo Motor

Module Feature

Sanyo Denki R2AA06040FBP11 belongs to SANMOTION R2 series high performance AC brushless servo motor. Rated power 0.4kW, AC200V power class, medium inertia rotor design. Built-in high resolution absolute rotary encoder for closed-loop position feedback, integrated 24V electromagnetic power-off holding brake. 60mm square flange structure, low cogging torque, high torque density, strong overload capacity and excellent dynamic response. Heavy duty double ball bearing assembly, outstanding vibration resistance and stable low-speed running performance. Equipped with power-off holding brake, suitable for medium light load vertical axis applications, preventing load falling once power cut off. Widely used for precision motion axis in semiconductor wet bench and chemical delivery automation equipment.

Working principle

The matched servo amplifier outputs three-phase AC power to motor windings. The built-in absolute encoder continuously feeds rotor angle and speed signal back to servo drive. The drive performs real-time closed-loop calculation and adjusts output current to realize precise torque, speed and position control. When power supply is interrupted, the 24V power-off holding brake will immediately lock motor shaft to hold vertical load securely.

Onboard components

Motor stator & rotor assembly,built-in high resolution absolute rotary encoder,heavy duty double ball bearing set,24V electromagnetic holding brake,aluminum alloy housing,3-phase power connector,encoder feedback signal connector,brake wiring terminal

LED indicators

No LED indicators on motor body; status LEDs are located on matched servo drive unit.

Hardware self-diagnosis

Visual inspection of shaft surface,connector pins and cable insulation; winding continuity and insulation resistance test; encoder signal waveform inspection; brake pull-in and release function test; manual rotation smoothness test.

Programming software

Sanyo Denki SANMOTION servo setup software for motor parameter auto recognition, servo gain tuning and alarm log reading.

Electrical & Process Parameters

Rated power:0.4kW Rated voltage:AC200V Rotor type:Medium inertia Feedback:Built-in high resolution absolute rotary encoder Brake:Built-in 24V power-off holding brake Cooling:Natural air cooling

Mechanical & Structure

Mounting:60mm square flange mount Protection class:IP65 (shaft and connector area) Shaft:Keyway shaft

Environmental

Operating temperature:0℃ ~ +40℃ Ambient humidity:5~95% non-condensing Certification:CE compliant Status:Sanyo Denki SANMOTION R2 series AC servo motor

System compatibility

Compatible with Sanyo Denki PZ / PY series servo drives for automation medium light load vertical axis positioning.

Function

R2AA06040FBP11 servo motor manufactured by Sanyo Denki. It provides high precision rotary motion and positioning control for medium light vertical load axis. Winding damage,encoder failure or loose coupling will trigger servo alarm and stop movement. The integrated holding brake ensures load safety during power loss. It is compact small power motion actuator for semiconductor wet bench and chemical delivery automation equipment.

Installation

Follow lockout/tagout safety procedure before installation. Power off servo drive system completely. Align motor shaft and load coupling,fasten flange mounting bolts securely. Wire motor power cable, encoder feedback cable and brake control cable. Configure servo parameters via SANMOTION software, test brake action and perform axis jog test and positioning verification before formal operation.

Interface3-phase power connector, encoder feedback signal connector, brake wiring terminal on housing of R2AA06040FBP11.

Diagnostic

Motor cannot rotate:Power wiring error, servo enable signal missing or brake not released.

Positioning inaccuracy:Encoder fault, loose coupling or servo gain mismatch.

Overheat alarm:Overloaded load, poor ventilation or bearing wear.

Abnormal running noise:Bearing damage or shaft misalignment between motor and load.

Product Brief

R2AA06040FBP11 Sanyo Denki SANMOTION R2 series 0.4kW AC servo motor,AC200V,built-in high resolution absolute rotary encoder and 24V power-off holding brake,60mm square flange mount,for semiconductor wet bench and chemical delivery medium light load precision vertical axis motion control.
