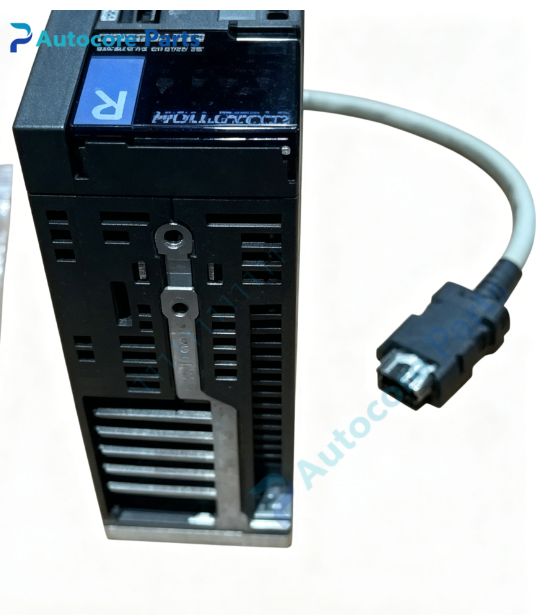

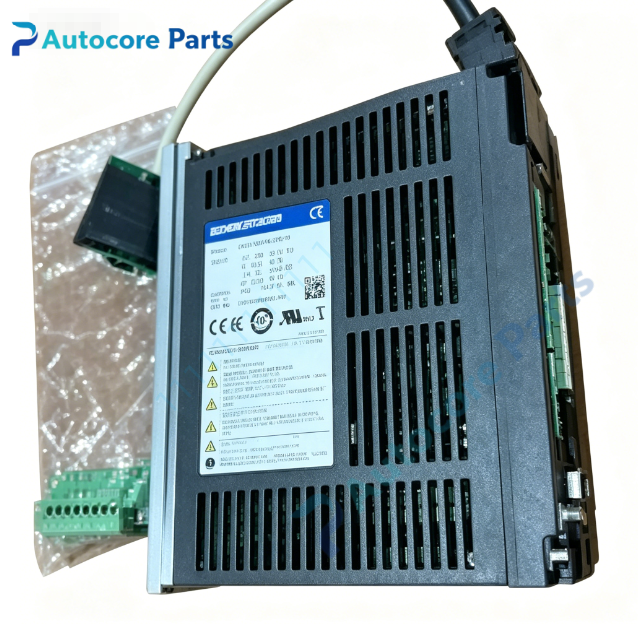

Sanyo Denki RS3A03A8AL0 Servo Amplifier

Module Feature

Sanyo Denki RS3A03A8AL0 belongs to SANMOTION R series high performance AC servo amplifier. It is AC200V single/three phase input servo drive, equipped with advanced vibration suppression algorithm to reduce mechanical resonance during high speed positioning. Supports position, speed and torque three control modes, accepting pulse train and analog command input. Compatible with Sanyo Denki SANMOTION R series servo motors, supports incremental and battery-free absolute encoder feedback. Multiple safety protection functions: overcurrent, overvoltage, undervoltage, overheat, overload, encoder abnormality and emergency stop protection. DIN rail installation, compact cabinet mounting structure. Widely used for high precision positioning axis in semiconductor wet bench and chemical delivery automation equipment.

Working principle: The servo drive receives motion command signal from upper controller. It converts AC input power into variable frequency three-phase AC power to drive matched servo motor. Real-time collects encoder position and speed feedback signal, executes closed-loop calculation and vibration suppression processing, realizes high precision positioning. When fault detected, the amplifier immediately cuts off power output and outputs alarm signal.

Onboard components:Power IGBT module,main control PCB,pulse/analog command terminal block,encoder feedback port,DC bus terminal,front panel LED status indicators,emergency stop terminal

LED indicatorsFront panel LED indicators for power, servo ready, enable state, fault alarm and communication status.

Hardware self-diagnosis

Visual inspection of power terminals and encoder connector; power-on self-test; input voltage detection; motor winding continuity test; alarm code reading and signal loopback verification.

Programming software

Sanyo Denki SANMOTION setup software for motor parameter auto recognition, vibration suppression tuning, servo gain adjustment and fault log reading.

Electrical & Process Parameters

Input voltage:AC200V class (single/3 phase) Control mode:Position / Speed / Torque Command input:Pulse train, analog signal Feedback:Compatible with incremental / battery-free absolute encoder Protection:Overcurrent, overvoltage, undervoltage, overheat, overload, encoder fault, E-stop Mounting:DIN rail

Mechanical & Structure

Mounting:Cabinet DIN rail installation Protection class:IP20

Environmental

Operating temperature:0℃ ~ +50℃ Ambient humidity:5~95% non-condensing Certification:CE compliant Status:Sanyo Denki SANMOTION R high performance AC servo amplifier

System compatibility

Compatible with Sanyo Denki SANMOTION R series servo motors for high precision positioning axis of automation equipment.

Function

RS3A03A8AL0 servo drive manufactured by Sanyo Denki. It provides power drive and closed-loop control for SANMOTION R servo motor, suppresses mechanical resonance and improves positioning accuracy. Incorrect encoder wiring, mechanical resonance or overload will trigger servo alarm and stop motion. It is high precision motion control driver for semiconductor wet bench and chemical delivery automation equipment.

Installation

Follow lockout/tagout safety procedure before installation. Power off the whole servo system. Mount servo drive on DIN rail and reserve heat dissipation space. Wire AC power, motor power cable and encoder feedback cable. Connect control signal and emergency stop circuit. Configure parameters via SANMOTION software, tune vibration suppression parameters, perform jog test and positioning verification before formal operation.

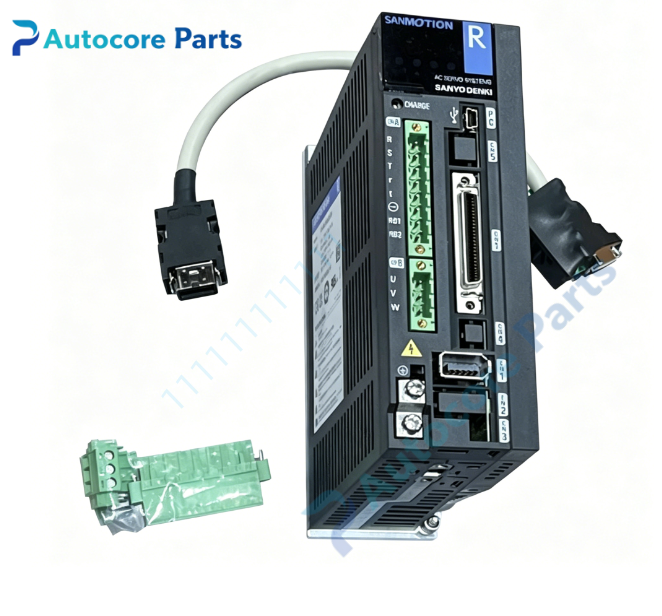

InterfaceAC power input terminal, motor power output terminal, encoder feedback connector, pulse/analog control signal terminal block, emergency stop terminal, front LED status indicators on housing of RS3A03A8AL0.

Diagnostic

Servo not ready:Power supply missing or internal hardware damage. Motor no movement:Servo enable signal missing, wiring error or wrong motor parameter. Vibration during positioning:Need adjust vibration suppression and gain parameters. Encoder alarm:Encoder cable broken, poor contact or encoder failure.

Product Brief

RS3A03A8AL0 Sanyo Denki SANMOTION R high performance AC servo drive,AC200V class,with built-in vibration suppression function,supports pulse/analog command,DIN rail mount,matching SANMOTION R servo motors,for semiconductor wet bench and chemical delivery precision motion axis control.
