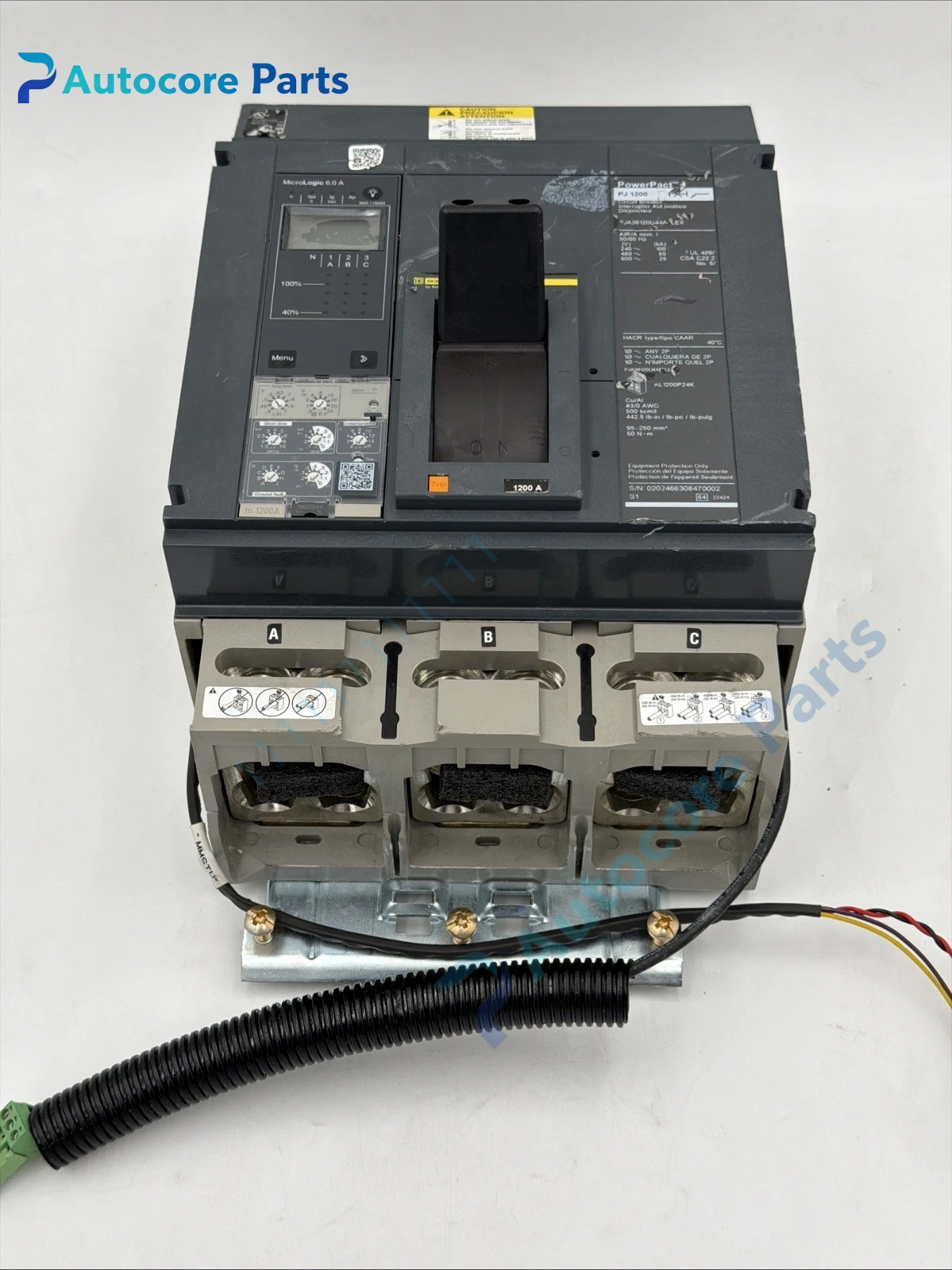

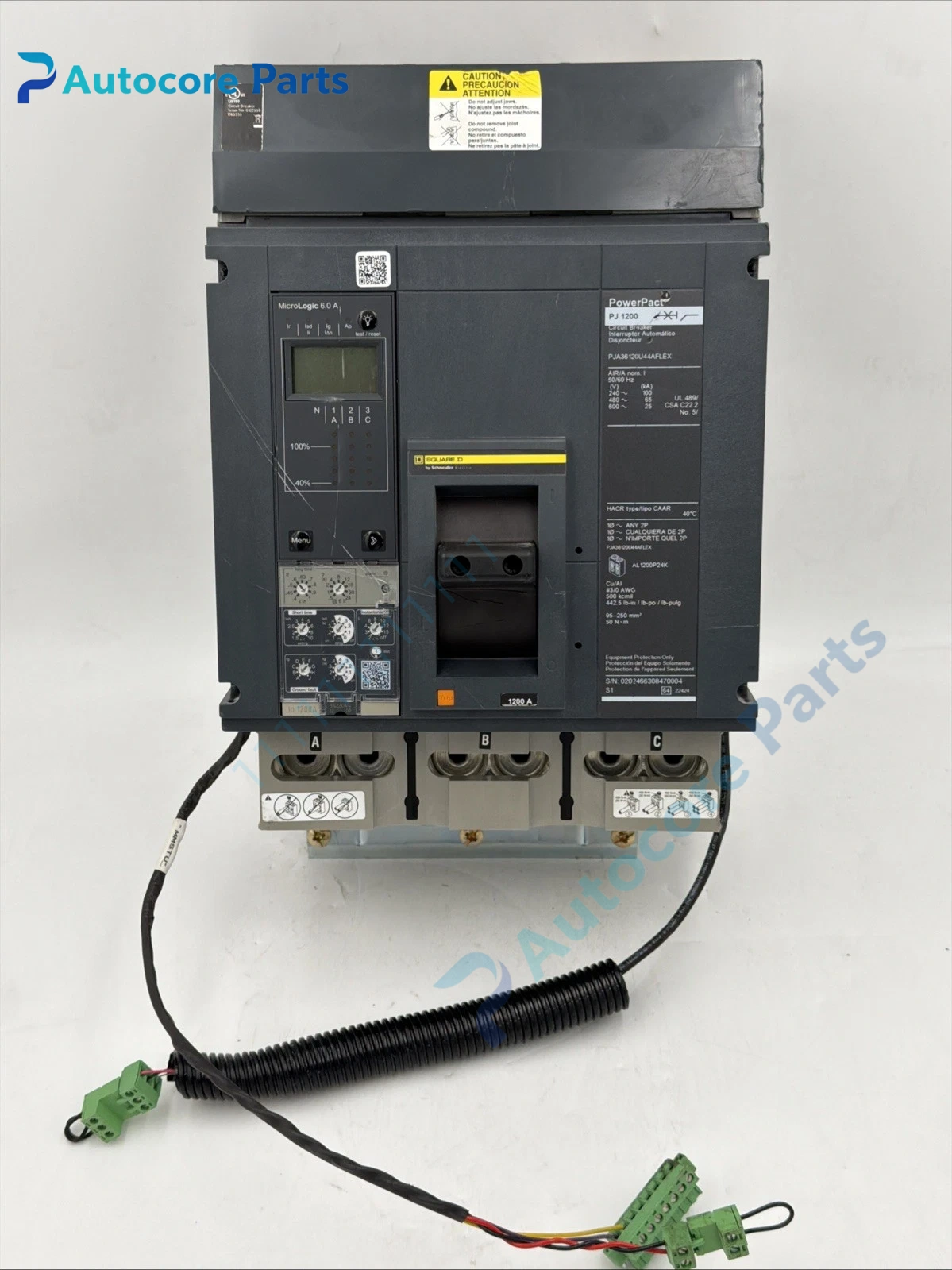

Schneider Electric PJA36120U44AFLEX I-Line Breaker Unit

Module Feature

PJA36120U44AFLEX is the I-Line molded case circuit breaker designed for Schneider FlexSeT modular switchboard system.

It adopts Micrologic 6.0A electronic trip unit with LSIG protection functions, supports long-time, short-time, instantaneous and ground fault protection. It is 3-pole, 1200A rated, 25kA interrupting capacity at 600VAC, widely used for industrial and commercial low voltage power distribution.

Working principle

Built-in current transformers continuously sample three-phase load current.

Once the current exceeds the preset threshold, the electronic trip unit sends trip signal to the operating mechanism, opening main contacts to isolate fault circuit. It supports electrical measurement, fault recording and communication expansion for remote monitoring.

Onboard components

Main contact assembly, arc extinguish chamber, CT sensing set, Micrologic trip controller, manual operating handle, I-Line bus connector.

LED indicators

Front LEDs indicate power status, alarm signal, trip indication and communication link status.

Hardware self‑diagnosis

Trip unit continuously monitors CT circuit, internal power supply and electronic hardware anomaly, fault records are stored locally.

Programming software

EcoStruxure Power Commission, used for protection setting, metering configuration and fault event analysis.

Electrical & Process Parameters

Model:PJA36120U44AFLEX Brand:Schneider Electric Device type:I-Line molded case circuit breaker Rated current:1200A Voltage:600V AC Trip unit:Micrologic 6.0A LSIG Interrupt rating:25kA @600VAC Function:Low voltage distribution overload, short circuit and ground fault protection

Mechanical & Structure

Mounting:Plug-in installation on FlexSeT I-Line bus bar

Protection class:IP20

Housing:Heavy-duty thermoplastic breaker housing

Environmental

Operating temperature:-25℃ ~ +60℃

Storage temperature:-40℃ ~ +85℃

Ambient humidity:5~95% non‑condensing

Certification:UL, CE

Status:Original Schneider low voltage distribution spare

Installation

Disconnect upstream power before replacement, insert breaker into matched I-Line slot and lock the mechanism.

Verify bus connection and phase sequence, download protection setting parameters and test trip function before commissioning.

Interface

I-Line plug-in bus connector, secondary trip and communication terminal.

Diagnostic

Fail to trip: Damaged trip coil, wrong protection setting.

Measurement abnormal: CT polarity error or signal circuit damage.

Breaker offline: Poor I-Line contact or bus pin burnout.

Product Brief

Schneider Electric PJA36120U44AFLEX PowerPacT J I-Line circuit breaker, 1200A LSIG protection module for FlexSeT low voltage switchboard.
