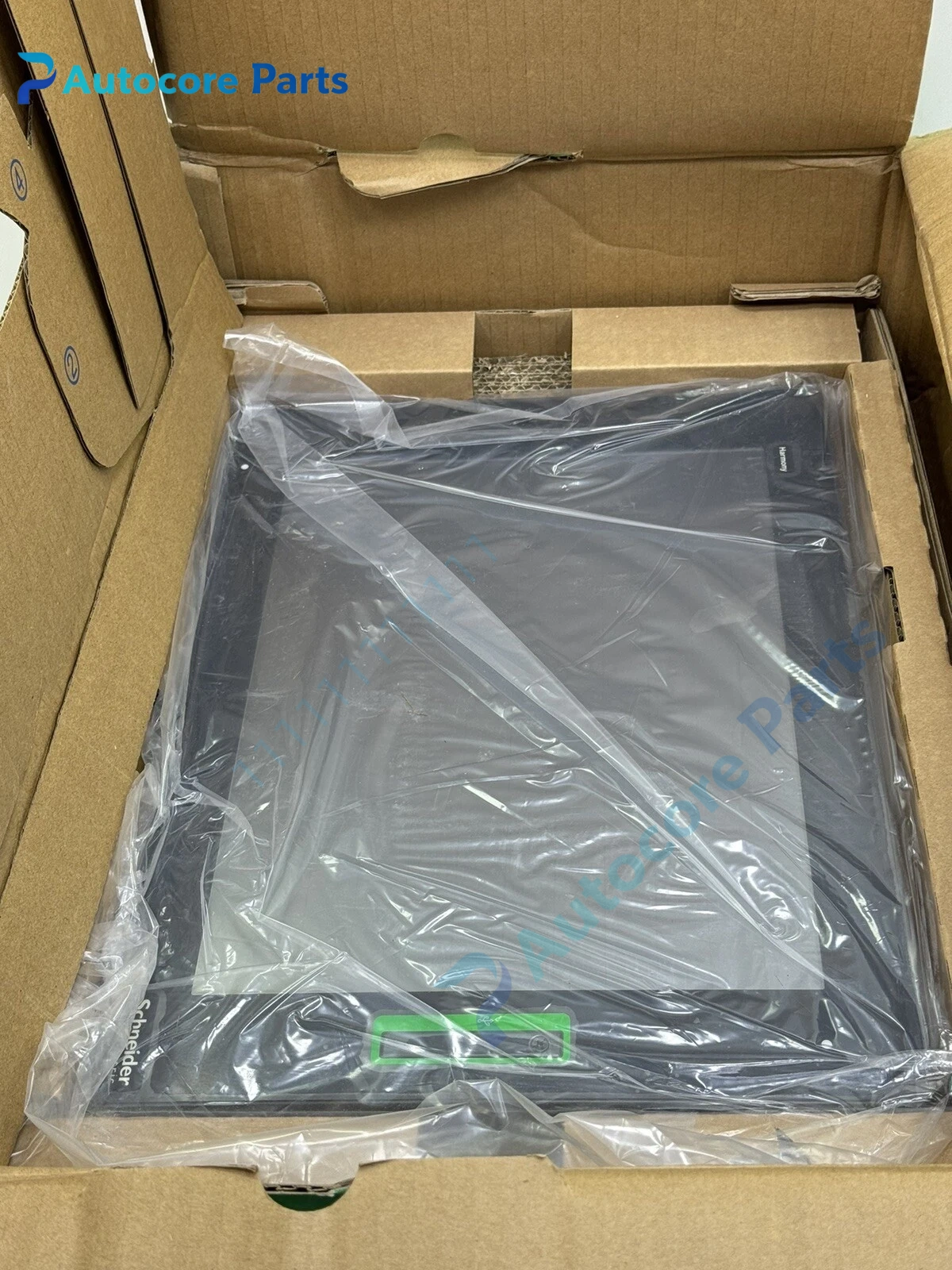

Schneider HMIDID73DTD1 Magelis HMI Touch Panel Unit

Feature & Principle

This HMI panel connects to PLC via industrial communication bus. It visualizes running data, provides touch operation for parameter modification, alarm checking and device control. It adopts rugged front panel, suitable for workshop environment with dust and vibration.

Specifications

Model: HMIDID73DTD1 Brand: Schneider Electric Series: Magelis Type: Touch display panel Supply voltage: 24VDC Front protection: IP65 Mounting: Panel cutout mounting Communication: Ethernet, serial port optional Certification: CE, UL

Components & Diagnostics

TFT LCD screen, touch overlay, drive circuit, communication interface, status LED. Common faults: touch unresponsive, screen backlight failure, communication drop, display flicker.

Product Brief

HMIDID73DTD1 HMI touch panel, Schneider automation spare widely used for packaging machine, conveyor line and process control cabinet.
