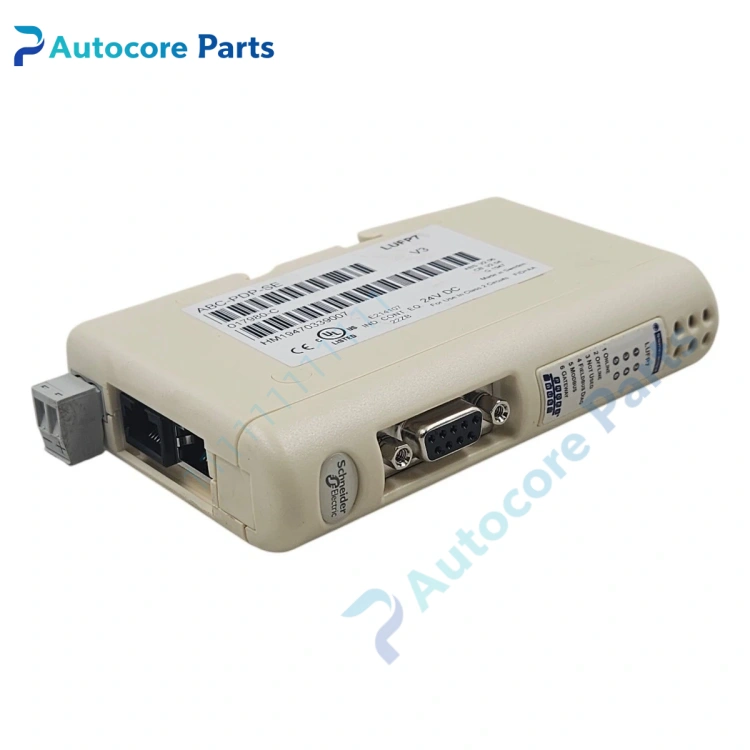

Schneider LUFP7 Communication Gateway

Feature & Principle

It is a dedicated fieldbus gateway of Schneider TeSys series. It acts as PROFIBUS DP slave on the upper network and Modbus RTU master on the lower network. It cyclically reads and writes register data of Modbus devices and forwards data to PROFIBUS DP master PLC. It is configured by ABC-LUFP software, realizes protocol conversion for motor starters, soft starters and inverters, solves the communication interconnection problem between different bus systems.

Specifications

Model: LUFP7 Brand: Schneider Bus: PROFIBUS DP (SUB-D9), Modbus RTU (RJ45) Power supply: 24VDC ±10% Current consumption: 100mA typical, 280mA max Compatible device: TeSys U, ATV31, ATS48 Mounting: DIN rail installation Weight: 0.245 kg Lifecycle: Discontinued legacy spare Application: Motor control cabinet, old automation production line bus transformation Certification: CE

Components & Diagnostics

Main communication PCB, bus interface circuit, status LED indicators, detachable power terminal, plastic housing. Common faults: bus communication interruption, gateway offline, unable to identify Modbus slave, configuration loss.

Product Brief

LUFP7 protocol conversion gateway, Schneider field bus communication spare widely used for motor control system cabinet overhaul and replacement.
