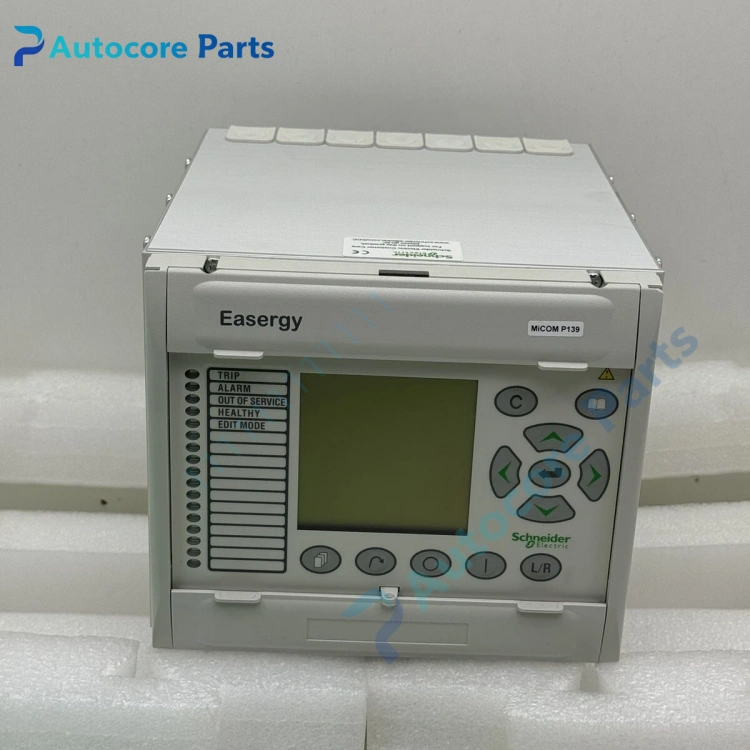

Schneider MiCOM P139 Feeder Protection Relay

Feature & Principle

It samples three-phase voltage and current signals in real time. It implements overcurrent, earth fault, voltage protection, breaker failure protection and automatic reclosing logic. It supports configurable protection settings, fault event recording and oscillography. It communicates with SCADA system via Modbus, IEC60870-5-103 or IEC61850, to realize remote monitoring and control of switchgear.

Specifications

Model: P139-569040F4-314-421-653-461-947 Brand: Schneider Electric Series: MiCOM P139 Application: Medium voltage feeder Power supply: 24~250V AC/DC Communication: Modbus, IEC60870-5-103, IEC61850 Mounting: Panel embedded mounting Protection functions: Phase overcurrent, earth fault, voltage protection, auto-reclose Certification: CE, UL

Components & Diagnostics

Main CPU board, signal acquisition module, relay output board, LCD human-machine interface, status LED, communication terminal. Common faults: sampling drift, false tripping, screen no display, communication interruption, output relay contact burnout.

Product Brief

P139-569040F4-314-421-653-461-947 feeder protection relay, Schneider power system spare widely used for substation, industrial medium voltage switchgear maintenance and replacement.
