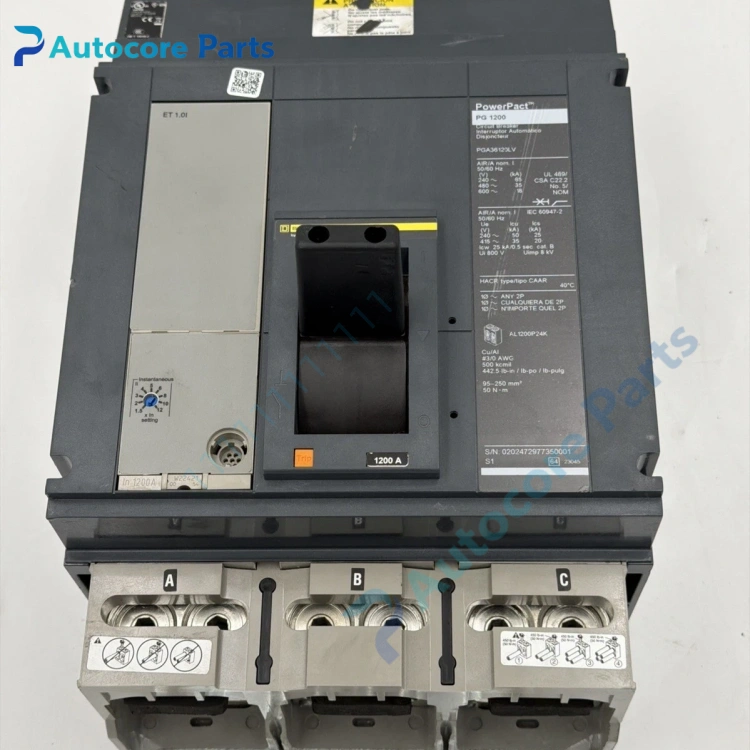

Schneider PGA36120LV PowerPact PGA MCCB Unit

Feature & Principle

This molded case circuit breaker adopts electronic thermal-magnetic trip unit. It monitors line current in real time, provides long-time overload, short-time delay and instantaneous short-circuit protection. It cuts off fault circuit quickly when overload or short circuit occurs, protects downstream cables and electrical equipment. I-Line plug-in installation facilitates quick replacement and maintenance.

Specifications

Model: PGA36120LV Brand: Schneider (Square D) Series: PowerPact PGA Pole: 3P Rated current: 1200A Rated voltage: 600V AC Mounting: I-Line plug-in Trip type: Electronic trip Certification: UL489, CE

Components & Diagnostics

Breaker frame, electronic trip unit, contact group, arc extinguishing chamber, operating handle and I-Line terminal base. Common faults: trip failure, contact burnout, arc extinguishing chamber carbon deposition, trip unit parameter drift.

Product Brief

PGA36120LV molded case circuit breaker, Schneider power distribution spare widely used for industrial workshop, data center low voltage main distribution cabinet.
