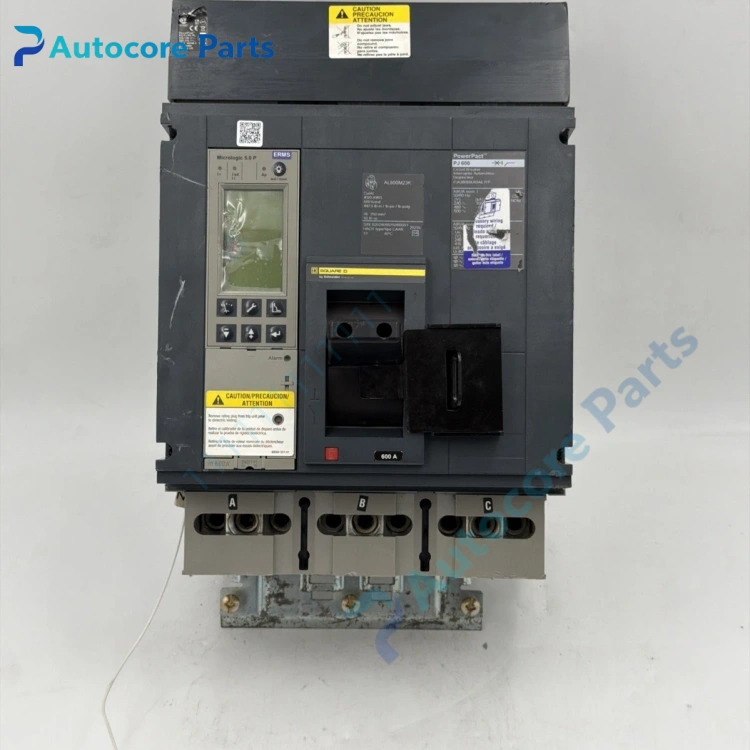

Schneider PJA36060U63AE1YP PowerPact P MCCB Unit

Feature & Principle

This molded case circuit breaker is equipped with Micrologic 5.0P electronic trip unit, supports overload, short time delay and instantaneous short-circuit protection. It monitors line current in real time and can upload electrical data via Modbus. It will quickly trip under fault conditions to protect cables and downstream loads. I-Line plug-in design supports fast installation and replacement in distribution switchboards.

Specifications

Model: PJA36060U63AE1YP Brand: Schneider (Square D) Series: PowerPact P Pole: 3P Rated current: 600A Rated voltage: 600V AC Trip unit: Micrologic 5.0P Communication: Modbus Mounting: I-Line plug-in Interrupt rating: 25kA @600V Certification: UL489, CE

Components & Diagnostics

Breaker housing, Micrologic electronic trip unit, main contact assembly, arc chute, operating handle and I-Line terminal base. Common faults include protection mis-trip, contact burning, arc chamber carbon accumulation and trip unit calibration drift.

Product Brief

PJA36060U63AE1YP molded case circuit breaker, Schneider power distribution spare widely used in industrial workshops and data center low voltage distribution cabinets.
