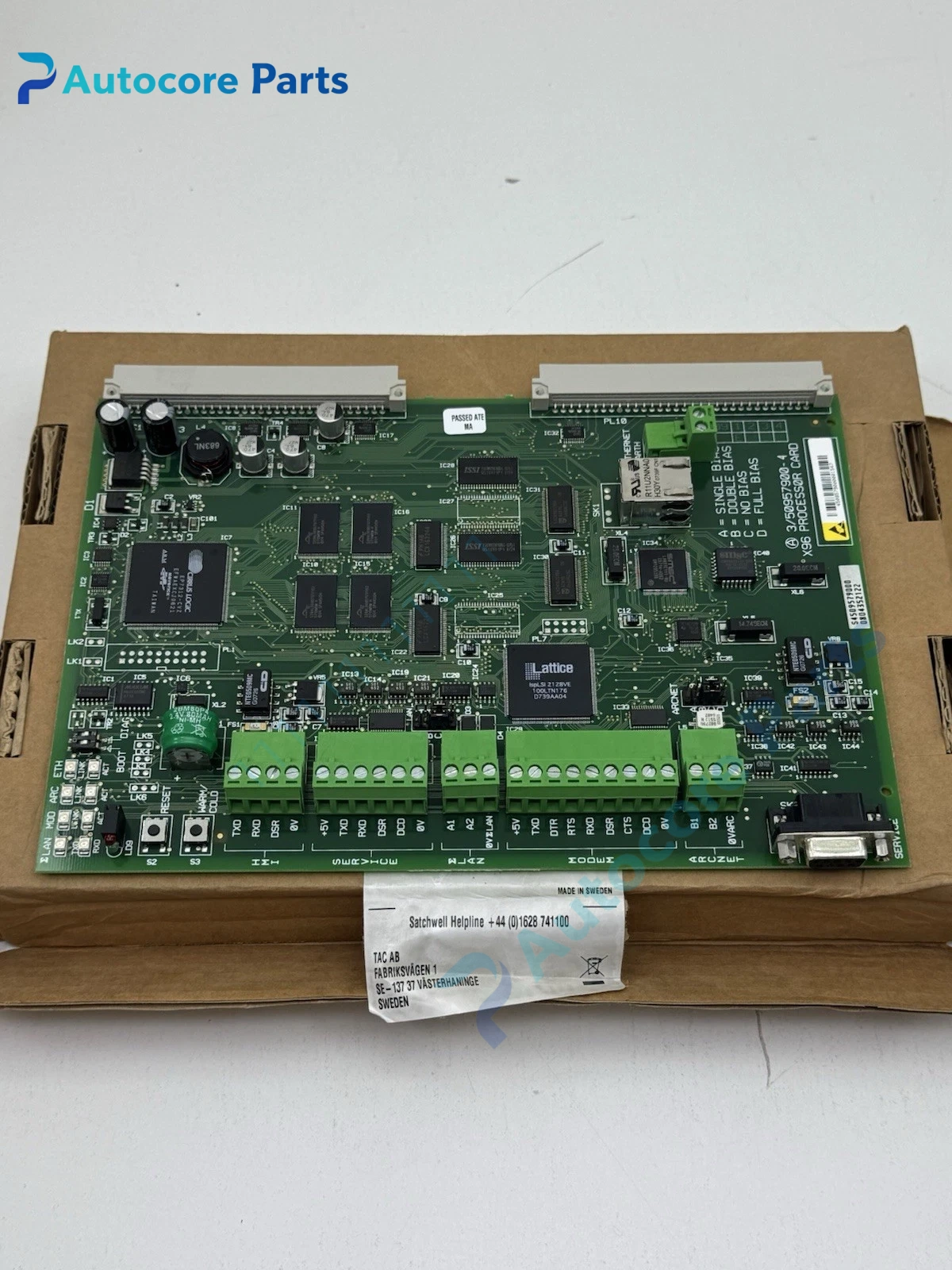

Schneider S-X96CPU-AE CPU Processor Card

Feature & Principle

It runs user control programs, completes logic, arithmetic and motion calculation. It communicates with I/O modules and upper host through the backplane bus, collects field signal data and outputs control instructions, realizes closed-loop automatic control for equipment, supports hot standby redundant configuration for high reliability requirements.

Specifications

Model: S-X96CPU-AE Brand: Schneider Applicable system: UNIC696 Power supply: 24VDC Communication: Backplane bus, RS485, Ethernet Mounting: Plug-in rack installation Certification: CE

Components & Diagnostics

Main processing chip, memory chip, bus interface circuit, opto-isolation circuit, status indicator. Common faults: CPU run stop alarm, bus communication loss, program loss, power startup failure, indicator abnormal.

Product Brief

S-X96CPU-AE processor card, Schneider control spare widely used for energy, metallurgy and industrial UNIC696 control cabinet overhaul and replacement.
