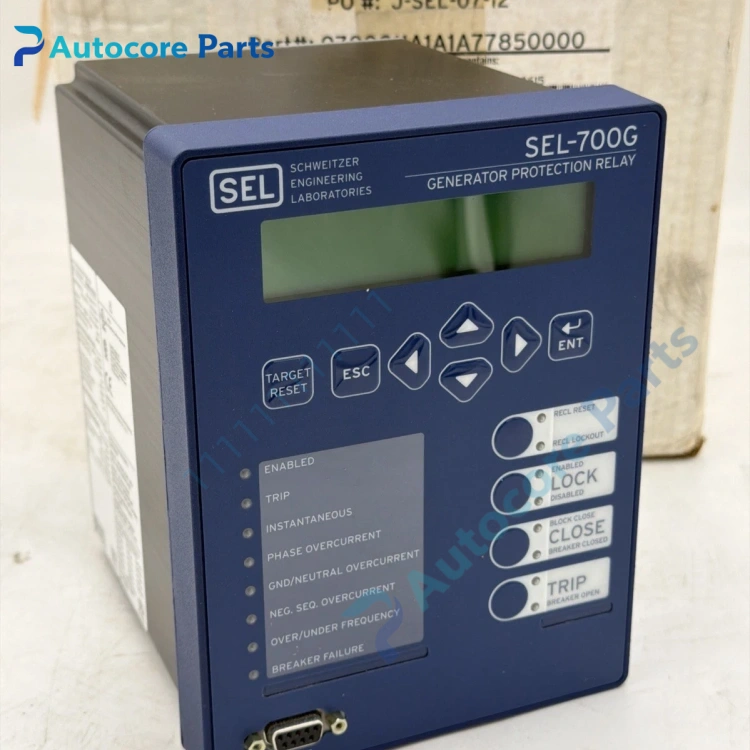

Schweitzer 0700G11A1A1A77850000 SEL-700G Generator Protection Relay Unit

Feature & Principle

This IED acquires CT and PT signals, executes overcurrent, differential, reverse power, loss of excitation, over/under voltage and frequency protection functions. It sends trip signals to breakers when generator faults occur, records fault waveforms, supports local HMI and remote SCADA communication.

Specifications

Model: 0700G11A1A1A77850000 Brand: Schweitzer Engineering Laboratories (SEL) Series: SEL-700G Application: Synchronous generator protection Communication: IEC61850, GOOSE, SEL Mirrored Bits, Modbus CT input: 1A / 5A Power supply: 48–250VDC / 120–240VAC Mounting: Panel flush mount Certification: IEC, UL, CE

Components & Diagnostics

CPU main board, analog sampling board, digital input/output module, local display HMI, power supply module, Ethernet communication interface. Common faults: communication dropout, measurement deviation, self-test alarm, DI/DO channel failure.

Product Brief

0700G11A1A1A77850000 generator protection relay, SEL power automation spare widely used for industrial backup generator, small hydropower and distributed power station protection.
