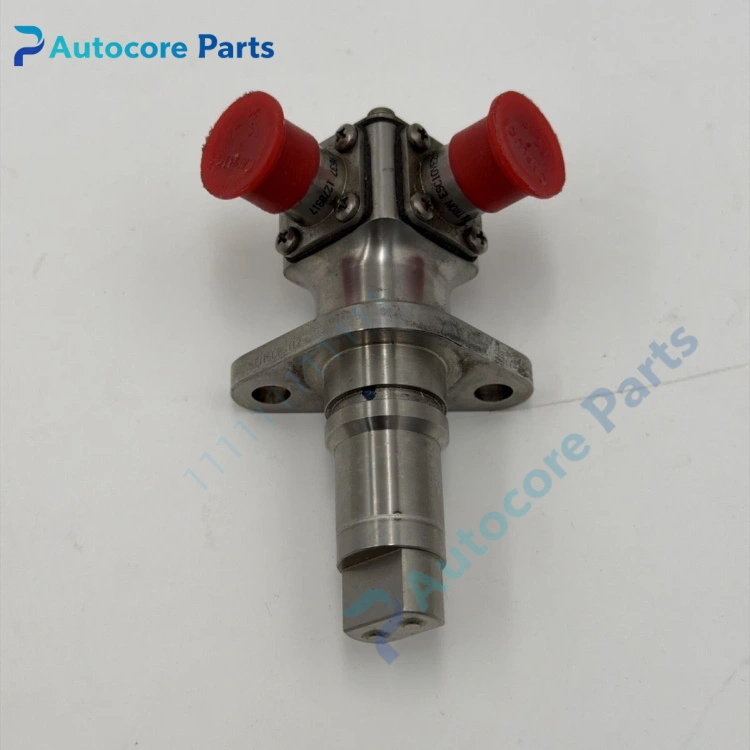

Meggitt 3223KGBA4 Magnetic Speed Sensor Unit

Feature & Principle

This variable reluctance sensor generates AC pulse signal when gear teeth pass the probe tip. The signal frequency is proportional to shaft rotation speed. The control system calculates real-time rotating speed from pulse frequency for overspeed protection, speed closed-loop control and vibration monitoring. It needs no external power supply.

Specifications

Model: 3223KGBA4 Brand: Meggitt Type: Passive variable reluctance speed probe Output: Sine wave AC signal Application: Gas turbine, compressor, high-speed rotating equipment Thread: Standard mounting thread Operating temperature: -55 ~ +200 ℃ Protection: Hermetically sealed Certification: Aerospace / industrial turbine qualified

Components & Diagnostics

Magnetic core, coil winding, stainless steel housing, lead cable. Common faults: coil open circuit, signal amplitude too low, signal loss, probe tip wear, cable insulation damage.

Product Brief

3223KGBA4 speed probe, Meggitt high-reliability spare widely used for gas turbine, centrifugal compressor and large rotating unit overspeed protection system.
