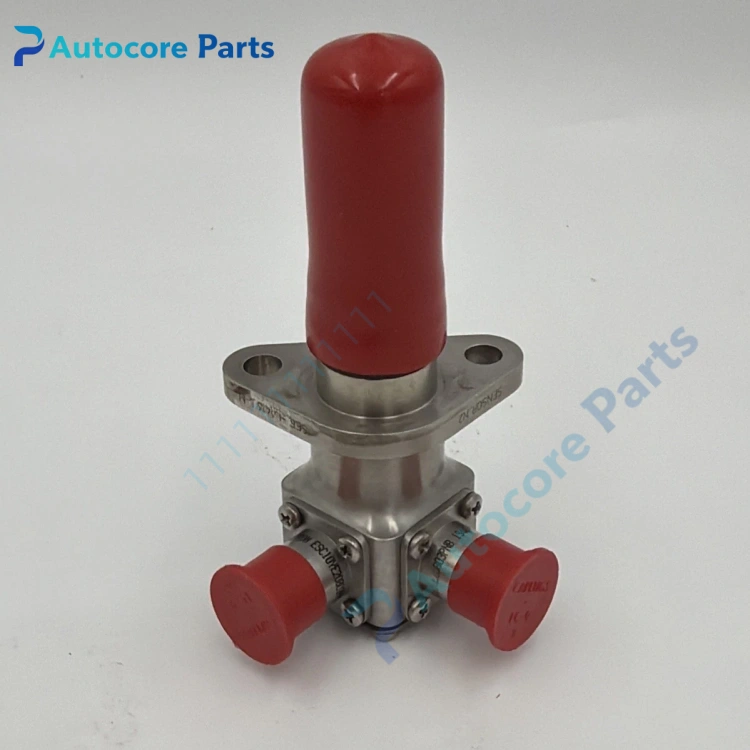

Meggitt 3223KGB02 N2 Variable Reluctance Speed Sensor Unit

Feature & Principle

This passive reluctance sensor has no internal electronics and requires no supply power. When gear teeth pass the probe tip, electromagnetic induction produces sine wave pulse output. The signal frequency corresponds to shaft rotational speed, sent to turbine control unit for speed indication, closed-loop regulation and overspeed trip protection.

Specifications

Model: 3223KGB02 Brand: Meggitt Type: Passive variable reluctance speed probe Application: Turbine N2 shaft speed measurement Output: Induced AC sine pulse signal Working temperature: -55 ~ +200 ℃ Construction: Hermetically sealed stainless steel housing Mounting: Threaded installation Certification: Aerospace and gas turbine qualified

Components & Diagnostics

Magnetic core, induction coil, metal shell, lead cable assembly. Common faults: coil open circuit, signal amplitude too low, intermittent signal loss, probe tip wear, cable insulation damage.

Product Brief

3223KGB02 speed probe, Meggitt high reliability spare used for gas turbine N2 speed monitoring and protection system.
