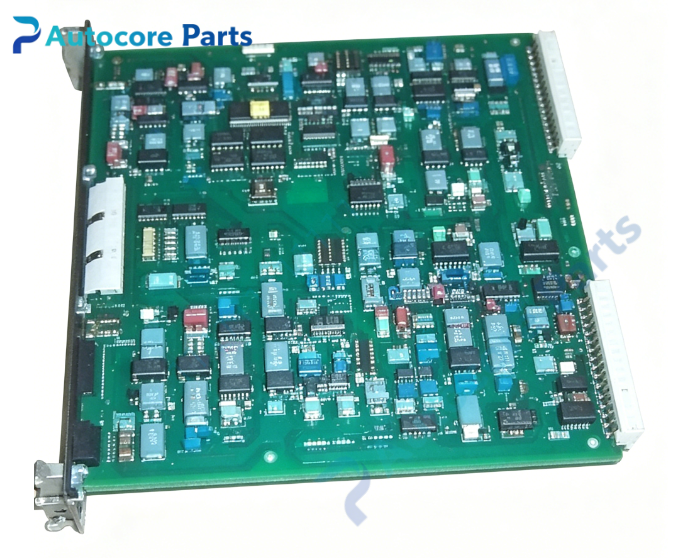

SIEB & MEYER K259558 Control Board

Module Feature

SIEB & MEYER K259558 is rack plug-in spindle drive control board, spare printed circuit board for SIEB & MEYER legacy FC spindle rack system. It executes spindle closed-loop speed, position and orientation control algorithm. It processes encoder feedback signal, analog and digital I/O signals and rack backplane bus communication. Integrated hardware watchdog and multi-channel fault detection circuit. With good vibration resistance and reliable EMC performance. Widely used in CNC machining centers, PCB routing and semiconductor drilling equipment.

Working principle

The control board receives motion command from upper CNC host via rack backplane. It collects real-time speed and position signal from spindle encoder, calculates control value and sends reference signal to power module. It continuously monitors the operating status of power stage. When abnormal state is detected, safety interlock will be triggered, power output disabled and fault code sent to host system.

Onboard components

Main DSP processor, FPGA logic chip, encoder signal conditioning circuit, analog sampling circuit, gold finger backplane connector, watchdog circuit, digital I/O interface, LED status indicator array.

LED indicators

Front panel LED indicators for DC power, board ready, drive enable, communication status and fault code display.

Hardware self-diagnosis

Visual inspection of PCB, solder joints and backplane gold fingers; DC24V supply voltage measurement; encoder signal continuity test; read LED fault codes; inspect PCB for burn marks or corrosion.

Programming software

SIEB & MEYER commissioning software for spindle parameter configuration, auto-tuning and fault log reading.

Electrical & Process Parameters

Model: K259558 Input voltage: DC24V Function: Spindle closed-loop motion control, encoder signal processing, rack bus communication Feedback: Encoder speed / position signal Cooling: Natural convection cooling Protection: Watchdog, encoder loss, communication fault, overvoltage monitoring Mounting: Rack plug-in mounting

Mechanical & Structure

Mounting: Rack plug-in mounting Protection class: IP20 (inside control cabinet)

Environmental

Operating temperature: 0℃ ~ +50℃ Ambient humidity: 5~95% non-condensing Certification: CE compliant Status: SIEB & MEYER legacy spindle drive control spare board

System compatibility

Compatible with SIEB & MEYER FC series spindle power modules and rack power supply, constitutes complete high-speed spindle drive system.

Function

K259558 control board manufactured by SIEB & MEYER. It acts as core control unit for spindle drive, responsible for closed-loop speed and orientation regulation. Encoder signal failure, communication interruption, power supply abnormality or hardware defect will trigger alarm and stop spindle operation. It is critical spare PCB for SIEB & MEYER rack spindle system.

Installation

Follow lockout/tagout safety procedure before installation. Cut off all rack power completely. Insert board into designated rack slot and lock handle securely, confirm stable backplane contact. Connect encoder cable and control signal cable correctly. Download spindle parameters and perform auto-tuning via SIEB & MEYER commissioning software, test spindle rotation before formal machining.

Interface

DC24V power pin, encoder feedback connector, backplane bus connector, analog & digital I/O terminal, fault alarm output terminal of K259558.

Diagnostic

No power LED: Missing DC24V supply or blown onboard fuse. Board not ready: Poor backplane contact, damaged component or configuration error. Encoder fault: Broken encoder cable, loose connector or incorrect parameter setting. Communication error: Bus mismatch, damaged backplane pin or wiring failure. Watchdog alarm: Processor crash, strong electromagnetic interference or hardware defect.

Product Brief

K259558 SIEB & MEYER rack plug-in spindle drive control board,DC24V supply,handles encoder feedback and rack bus communication,matching FC series spindle power modules,for CNC and semiconductor high-speed spindle system.
