SIEB & MEYER K259937 Control Board

Module Feature

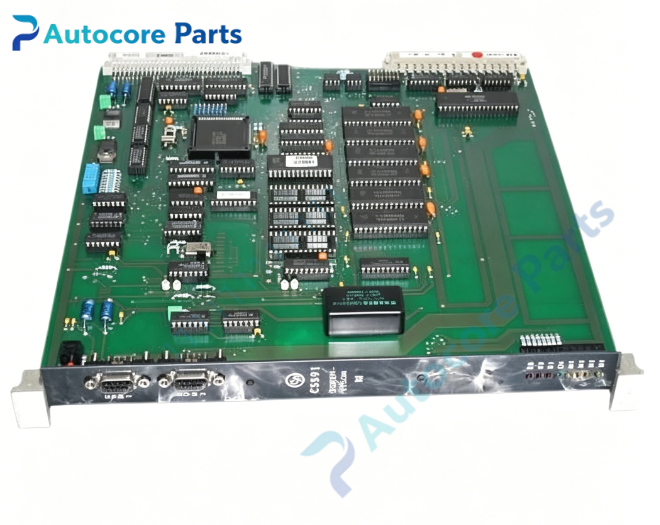

SIEB & MEYER K259937 is rack plug-in drive control board, spare printed circuit board for SIEB & MEYER legacy spindle rack drive system. It executes spindle closed-loop speed, position and orientation control algorithm. It handles encoder signal acquisition, analog and digital I/O signal processing, rack backplane bus communication. Integrated hardware watchdog and multi-channel fault detection circuit. Designed with industrial vibration resistance and reliable EMC performance. Widely used in CNC machining, PCB routing and semiconductor drilling equipment.

Working principle

This control board receives setpoint commands from host CNC system via rack backplane. It captures real-time speed and position feedback signal from spindle encoder, computes control output and sends reference signal to power module. It continuously monitors power stage operating status. When abnormal condition detected, the board will trigger safety interlock, disable power output and transmit fault code to upper system.

Onboard components

Main DSP processor, FPGA logic chip, encoder signal processing circuit, analog signal sampling circuit, backplane gold finger connector, watchdog circuit, digital I/O interface, LED status indicator array.

LED indicators

Front panel LED indicators for DC power supply, board ready, drive enable, communication status and fault code display.

Hardware self-diagnosis

Visual inspection of PCB, solder joints and backplane gold fingers; measure DC24V supply voltage; encoder signal continuity test; read LED fault codes; check PCB for burn marks or corrosion.

Programming software

SIEB & MEYER commissioning software for spindle parameter configuration, auto-tuning and fault log analysis.

Electrical & Process Parameters

Model: K259937 Input voltage: DC24V Function: Spindle closed-loop motion control, encoder signal processing, rack bus communication Signal: Encoder position / speed feedback Cooling: Natural convection cooling Protection: Watchdog, encoder loss, communication fault, overvoltage monitoring Mounting: Rack plug-in mounting

Mechanical & Structure

Mounting: Rack plug-in mounting Protection class: IP20 (inside control cabinet)

Environmental

Operating temperature: 0℃ ~ +50℃ Ambient humidity: 5~95% non-condensing Certification: CE compliant Status: SIEB & MEYER legacy spindle drive control board

System compatibility

Compatible with SIEB & MEYER FC series spindle power modules and rack power supply, forms complete high-speed spindle drive system.

Function

K259937 control board manufactured by SIEB & MEYER. It is the core control unit for spindle drive, responsible for closed-loop speed and orientation regulation. Encoder signal failure, communication interruption, power supply abnormality or hardware fault will trigger alarm and stop spindle operation. It is critical spare control PCB for SIEB & MEYER rack spindle system.

Installation

Follow lockout/tagout safety procedure before installation. Cut off all rack power completely. Insert the board into designated rack slot and lock handle securely, confirm stable backplane contact. Connect encoder cable and control signal cable correctly. Download spindle parameters and perform auto-tuning via SIEB & MEYER commissioning software, test spindle rotation before formal machining.

Interface

DC24V power pin, encoder feedback connector, backplane bus connector, analog & digital I/O terminal, fault alarm output terminal of K259937.

Diagnostic

No power LED: Missing DC24V supply or blown onboard fuse. Board not ready: Poor backplane contact, damaged component or configuration error. Encoder fault: Broken encoder cable, loose connector or wrong parameter setting. Communication error: Bus mismatch, damaged backplane pin or wiring failure. Watchdog alarm: Processor crash, strong electromagnetic interference or hardware defect.

Product Brief

K259937 SIEB & MEYER rack plug-in spindle drive control board,DC24V supply,processes encoder feedback and rack bus signal,matching FC series spindle power modules,for CNC and semiconductor high-speed spindle system.
