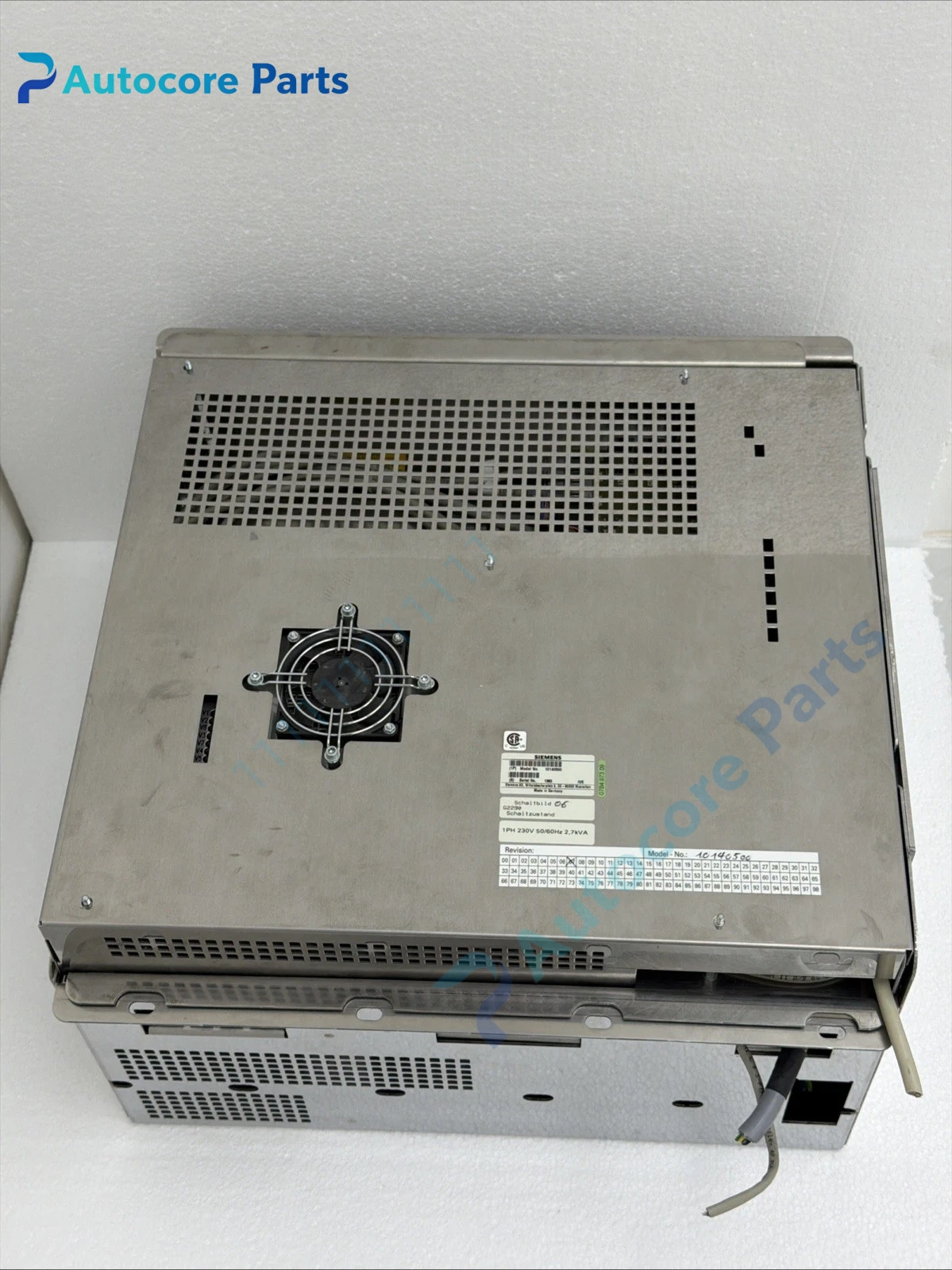

Siemens 10140500 RSM Medical Imaging Module Unit

Module Feature

10140500 is Siemens medical imaging dedicated RSM control module. It is applicable to Ysio WI-D digital radiography X-ray machine and multiple SOMATOM CT scanner models including Emotion, Sensation and Definition AS series. It processes radiographic signal data, realizes internal system bus communication and status interaction between host and peripheral components. Strict medical grade design, anti-interference, stable operation under high voltage radiation environment. It belongs to discontinued medical spare part, widely used for hospital radiology equipment maintenance and replacement.

Working principle

After power on, the module communicates with the equipment backplane bus. It receives and preprocesses sensor and detector feedback signals, uploads data to the main image processing unit, and executes system status monitoring and fault reporting. It coordinates the timing sequence of X-ray exposure, detector readout and data transmission.

Onboard components

Main processing chip, high-speed communication circuit, signal conditioning circuit, non-volatile configuration memory, backplane golden finger connector, status indicator circuit.

LED indicators

Front panel LED indicators, showing power supply, running status, communication and fault alarm.

Hardware self‑diagnosis

Power-on self-check detects bus communication error, memory fault, power abnormality and signal circuit failure. Fault events are recorded and can be viewed on the equipment service interface.

Programming software

Commissioning, hardware identification and fault diagnosis use Siemens medical service software.

Electrical & Process Parameters

Model:10140500 Brand:Siemens Device type:Medical RSM Control Module Applicable device:Ysio WI-D DR, SOMATOM CT scanner series Mounting form:Rack insertion inside medical equipment Power supply:Internal rack backplane power Function:Signal preprocessing, system bus communication and timing control for radiography system

Mechanical & Structure

Mounting:Insert into dedicated equipment rack slot Protection class:IP20 (inside equipment cabinet) Housing:PCB with metal front panel

Environmental

Operating temperature:10℃ ~ +35℃ Storage temperature:-20℃ ~ +60℃ Ambient humidity:30~70% non‑condensing Certification:Medical IEC 60601 compliant Status:Siemens original medical imaging spare module

Installation

Follow medical equipment maintenance procedure, cut off equipment high voltage and main power. Insert module into designated slot and lock the latch. Restore power, run equipment self-test, confirm communication with detector and host system, verify exposure workflow.

Interface

Equipment internal backplane bus golden finger interface.

Diagnostic

Fault LED illuminated:Module hardware damage or backplane communication interruption. Equipment cannot recognize module:Slot contact poor or firmware version mismatch. Image data abnormal:Signal conditioning circuit damaged.

Product Brief

Siemens 10140500 RSM module, medical spare for Ysio DR and SOMATOM CT scanner, used for radiographic signal processing, system communication and exposure timing control.
