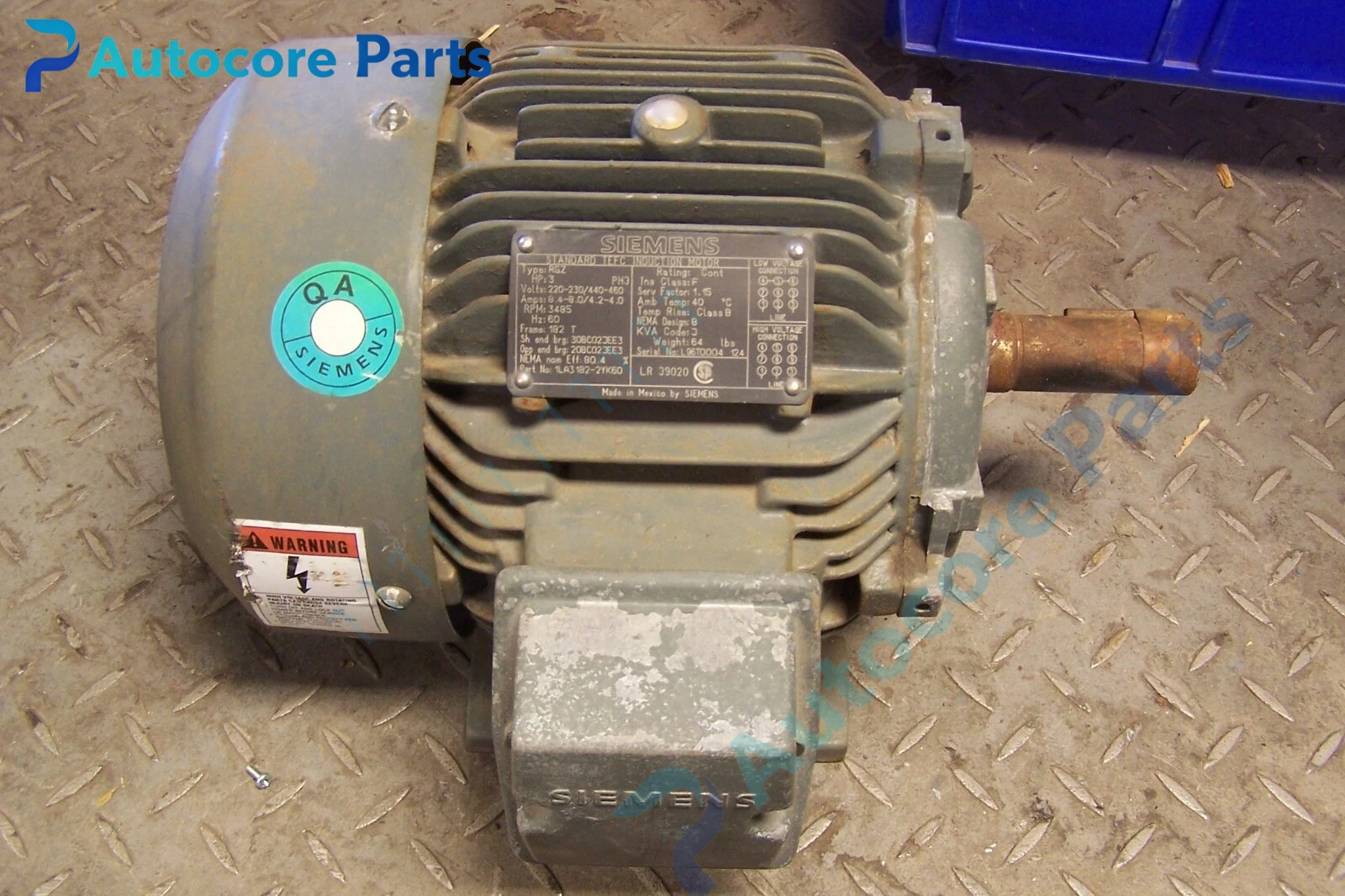

Siemens 1LA3182‑2YK60 AC Induction Motor Unit

Module Feature

1LA3182‑2YK60 is Siemens 1LA series squirrel‑cage three‑phase asynchronous motor. Totally enclosed self‑cooled structure, robust cast iron housing. Suitable for constant‑speed drive applications such as fans, pumps and conveyor systems in general industry.

Working principle

Three‑phase power supply feeds stator windings to generate rotating magnetic field. Induced current inside rotor produces torque to drive shaft rotation, completing conversion from electrical energy to mechanical energy.

Onboard components

Stator‑rotor assembly, cast iron housing, terminal box, bearing sets, cooling fan, fan cover and sealing parts.

LED indicators

No onboard LED indicators. Operating status judged by temperature, noise and vibration.

Hardware self‑diagnosis

Measure winding insulation resistance, check terminal tightness, monitor housing temperature, inspect abnormal noise and vibration.

Programming software

No configuration software, fixed mechanical‑electrical parameters.

Electrical & Process Parameters

Model:1LA3182‑2YK60 Brand:Siemens Device type:Three‑Phase AC Induction Motor Cooling:Self‑cooled Function:Provide mechanical drive power for industrial equipment

Mechanical & Structure

Mounting:Foot mounting Protection class:IP55 Housing:Cast iron housing

Environmental

Operating temperature:-20℃ ~ +40℃ Storage temperature:-30℃ ~ +85℃ Ambient humidity:5~95% non‑condensing Certification:CE IEC industrial motor compliant Status: Siemens original 1LA series motor

Installation

Install motor on rigid base. Confirm power supply matches rated voltage. Tighten terminal screws, complete no‑load test run after installation.

Interface

Three‑phase power terminal block, motor output shaft.

Diagnostic

Motor overheat: overload, poor ventilation or voltage deviation. Abnormal noise: bearing wear. High current unbalance: loose wiring or winding fault.

Product Brief

Siemens 1LA3182‑2YK60 three‑phase induction motor, robust general‑purpose drive for pumps, fans and other industrial machinery.
