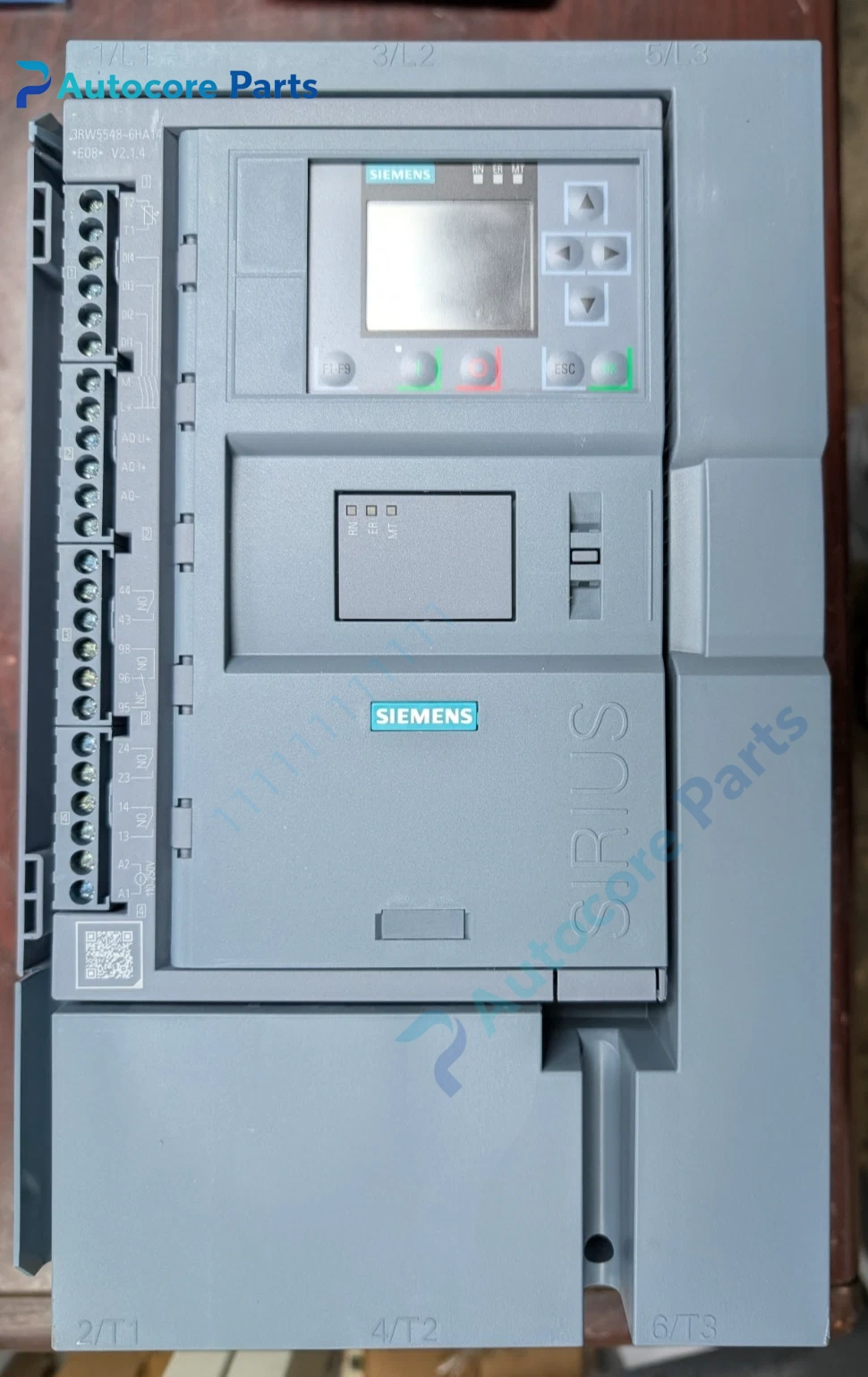

Siemens 3RW55486HA14 Soft Starter Unit

Module Feature

3RW55486HA14 belongs to Siemens SIRIUS 3RW55 high‑performance soft starter, rated 570A. Equipped with integrated bypass contactor, local LCD display, supports soft‑ramp start and soft stop. It has motor overload protection, current limit and communication function, suitable for large pumps, fans and heavy‑load motor systemsfiles.kemp....

Working principle

Thyristor modules gradually adjust output voltage during motor startup to limit inrush current. After finishing acceleration, built‑in bypass contactor closes to bypass thyristors for energy‑saving operation. Soft‑stop function reduces water‑hammer risk for pump loads.

Onboard components

Three‑phase thyristor power module, integrated bypass contactor, control board, LCD operation panel, digital I/O terminals, screw‑type power terminals, metal housing.

LED indicators

LCD screen displays running data and fault codes; status LED shows power, run and alarm state.

Hardware self‑diagnosis

Detect thyristor fault, overload condition, monitor motor current, read fault log via local panel or communication interface.

Programming software

Parameter configuration via Siemens Soft Starter Tool software or local keypad panel.

Electrical & Process Parameters

Model:3RW55486HA14 Brand:Siemens Device type:3‑Phase Motor Soft Starter Rated current:570A Main voltage:200‑480V 3‑phase Control voltage:110‑250V AC Function:Soft start and soft stop protection for large AC motor

Mechanical & Structure

Mounting:Cabinet panel mounting Protection class:IP00 Housing:Metal housing

Environmental

Operating temperature:-20℃ ~ +60℃ Storage temperature:-30℃ ~ +85℃ Ambient humidity:5~95% non‑condensing Certification:CE, UL, IEC60947‑4‑2 compliant Status: Siemens original 3RW55 series soft starter

Installation

Install inside control cabinet, ensure sufficient ventilation space. Wire main power circuit and control circuit with screw terminals. Set start‑ramp and protection parameters before commissioning.

Interface

Three‑phase main power terminals, control signal I/O terminals, local LCD‑keypad interface, communication port.

Diagnostic

Startup overcurrent: improper current‑limit setting or motor short‑circuit. Over‑temperature fault: poor cabinet ventilation. Bypass failure: contactor wear or control circuit fault.

Product Brief

Siemens 3RW55486HA14 high‑current soft starter with built‑in bypass, achieves smooth start‑stop and protection for heavy‑duty three‑phase industrial motors.
