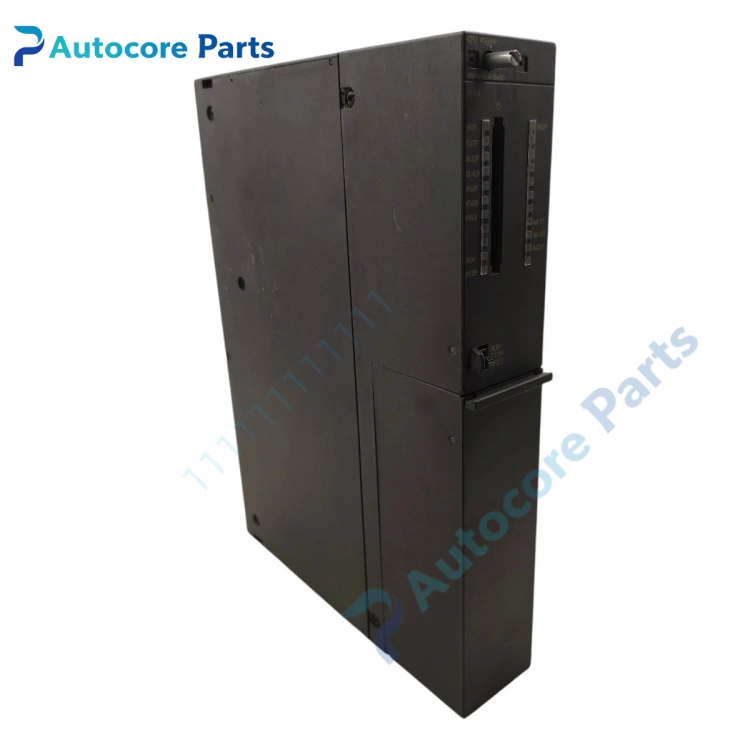

Siemens 6ES7414-4HM14-0AB0 Redundant CPU

Feature & Principle

It is Siemens SIMATIC S7-400H series redundant CPU 414-4H. It is used for fault-tolerant redundant control system. Two CPUs run synchronously, once the master CPU fails, the standby CPU automatically switches without interruption, guaranteeing continuous operation. It supports S7-400F/FH safety system with F-runtime license. Equipped with MPI/DP and PROFIBUS DP interfaces, two synchronization ports for synchronization modules, it realizes distributed I/O communication and redundant data synchronization, programmed and configured via STEP7 software. This model is discontinued, used for maintenance replacement of old redundant control systems.

Specifications

Model: 6ES7414-4HM14-0AB0 Brand: Siemens Series: SIMATIC S7-400H Memory: 2.8 MB (1.4 MB program, 1.4 MB data) Interfaces: 1×MPI/DP, 1×PROFIBUS DP, 2×sync port Applicable system: S7-400H, S7-400F/FH Installation: S7-400 rack mount Firmware: V4.5.7 Application: Power plant, petrochemical, metallurgy, PCS7 redundant control cabinet Certification: CE

Components & Diagnostics

Main control chip, memory unit, communication circuit, synchronization interface, status LED, backplane gold finger. Common faults: synchronization failure, communication interruption, CPU master-standby switch abnormality, program loss, power supply fault.

Product Brief

6ES7414-4HM14-0AB0 redundant CPU module, Siemens S7-400H fault tolerant PLC spare widely used for industrial redundant control cabinet overhaul and replacement.
