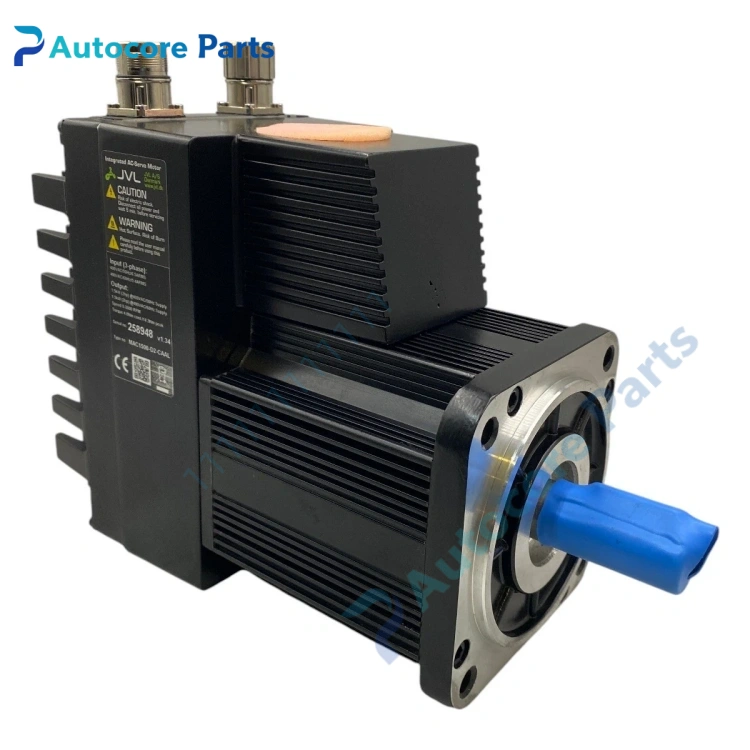

JVL MAC1500-D2-CAAL Integrated Servo Motor

Feature & Principle

It is JVL MAC series integrated servo motor. Servo motor, drive unit, encoder and Nano PLC are integrated inside one housing. It receives motion commands directly from fieldbus, completes position, speed and torque closed-loop control. This integrated design eliminates separate servo drive cabinet and long motor cable, reduces EMC interference. It supports multi bus options, suitable for compact automation equipment.

Specifications

Model: MAC1500-D2-CAAL Brand: JVL Rated power: 1500 W RMS torque: 5 Nm, peak torque:15 Nm Protection class: IP55 Built-in: Servo drive, Nano PLC, encoder Communication: EtherCAT, PROFINET, CANopen, RS485 optional Cooling: Natural cooling Brake: Optional electromagnetic brake Application: Packaging machine, material handling, automated assembly line Certification: CE

Components & Diagnostics

Brushless stator rotor, encoder, power drive board, Nano PLC control board, status LED, terminal connector. Common faults: encoder signal error, bus communication disconnection, overheating alarm, internal drive failure.

Product Brief

MAC1500-D2-CAAL integrated servo motor, JVL all-in-one motion control spare widely used for compact automation production line overhaul and replacement.
