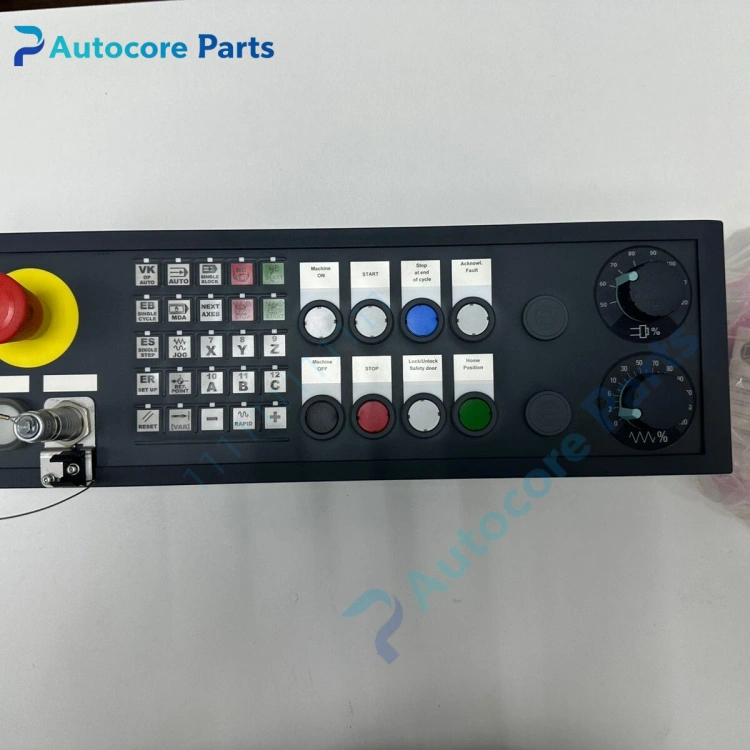

Siemens 6FC5303-1AF12-8AG0 MCP Machine Control Panel

Feature & Principle

It communicates with NCU controller via Profinet bus. It integrates manual operation keys, rotary override switches and status indicator lamps, sends operation commands to CNC system, realizes jog movement, program start/stop, spindle speed and feed rate adjustment for machine tools.

Specifications

Model: 6FC5303-1AF12-8AG0 Brand: Siemens Series: SINUMERIK MCP Communication: Profinet Power supply: 24VDC Mounting: Cabinet panel embedded installation Application: 840D sl CNC system Certification: CE, UL

Components & Diagnostics

Membrane key assembly, rotary encoder switch, main control circuit board, status LED, Profinet interface. Common faults: key failure, override switch no signal, network disconnection, indicator lamp not lighting, communication timeout.

Product Brief

6FC5303-1AF12-8AG0 machine control panel, Siemens CNC spare widely used for machining center, lathe and milling machine SINUMERIK system renovation and maintenance.
