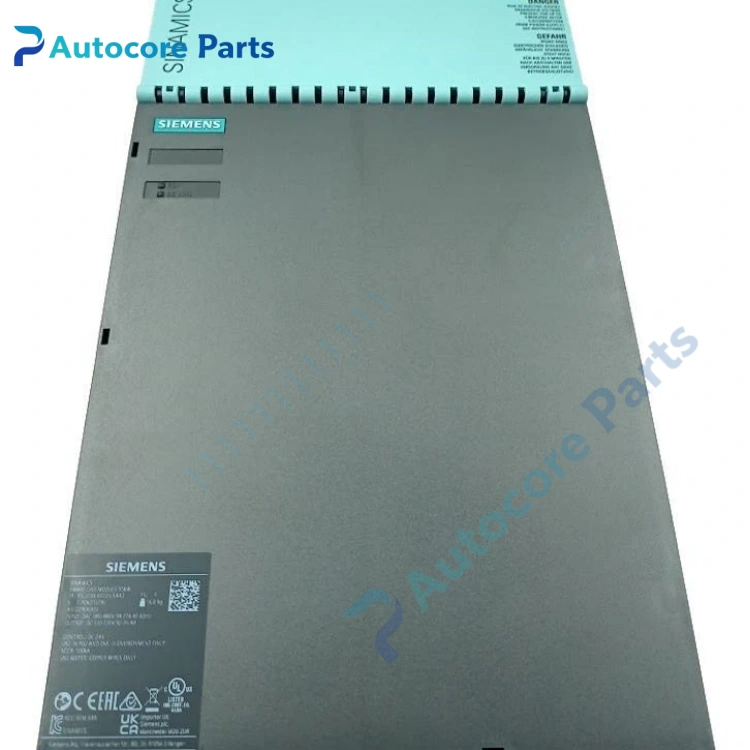

Siemens 6SL3130 S120 Line Module

Feature & Principle

It is the power supply unit series for Siemens SINAMICS S120 modular drive system. Active Line Module can feed regenerative energy back to the grid and stabilize DC bus voltage. Smart Line Module is a cost-effective regulated power type without grid feedback. It communicates with motor modules via Drive-CLiQ, provides DC power for multiple servo axes, and integrates overvoltage, overcurrent and overheat protection.

Specifications

Model: 6SL3130 series Brand: Siemens Series: SINAMICS S120 Input: 3AC 380~480V, 50/60Hz Output: Regulated 600V DC bus Communication: Drive-CLiQ Structure: Booksize Cooling: Internal air cooling Variants: Active Line Module, Smart Line Module Application: Machine tool, printing, packaging, robotics multi-axis motion control cabinet Certification: CE, UL

Components & Diagnostics

IGBT power stage, control board, Drive-CLiQ interface, cooling fan, status LED, DC bus terminal. Common faults: fan failure, DC bus overvoltage, Drive-CLiQ link error, power board damage, overload alarm.

Product Brief

6SL3130 line module, Siemens SINAMICS S120 multi-axis drive power spare widely used for machine tool and automation equipment overhaul and replacement.
