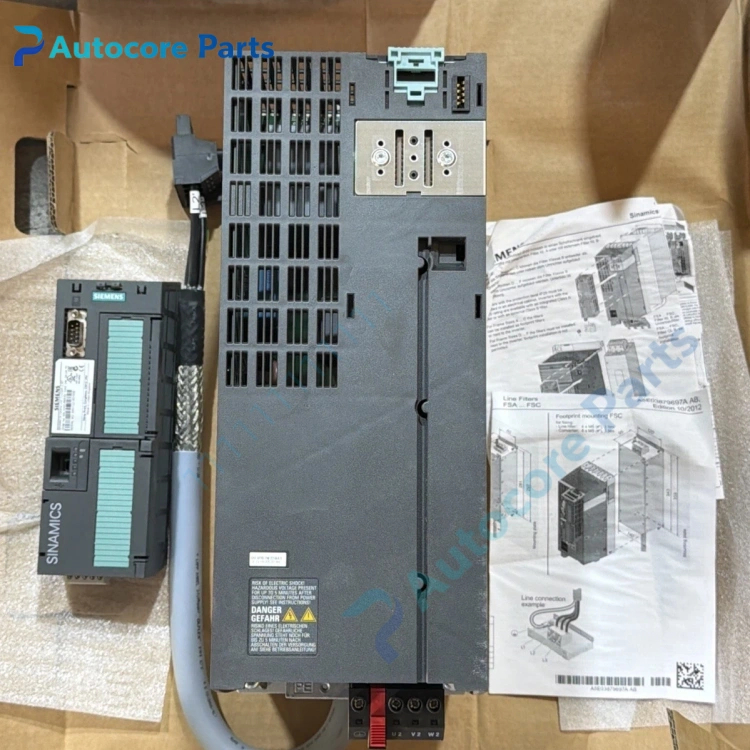

Siemens 6SL3200-6AE22-6BH0 SINAMICS G120P VFD

Feature & Principle

It adopts PWM frequency conversion modulation technology. By adjusting the output voltage and frequency, it changes the motor speed to match the actual flow and pressure demand of fans and pumps. It has built-in multi-group protection, PID closed-loop function and energy-saving mode, which can effectively reduce no-load power consumption and realize stable fluid process control.

Specifications

Model: 6SL3200-6AE22-6BH0 Brand: Siemens Series: SINAMICS G120P Rated power: 11 kW Input: 3 Phase 380~480V AC Rated output current: 26 A Application: Fan, pump Communication: Support Modbus, Profinet optional Mounting: Cabinet installation Certification: CE, UL, CSA

Components & Diagnostics

Main power board, control unit, IGBT module, cooling fan, status LED, terminal block. Common faults: overload alarm, overcurrent trip, fan failure, communication disconnection, no output after power on.

Product Brief

6SL3200-6AE22-6BH0 frequency converter, Siemens drive spare widely used for water treatment, air conditioning and industrial pump control cabinet maintenance and replacement.
