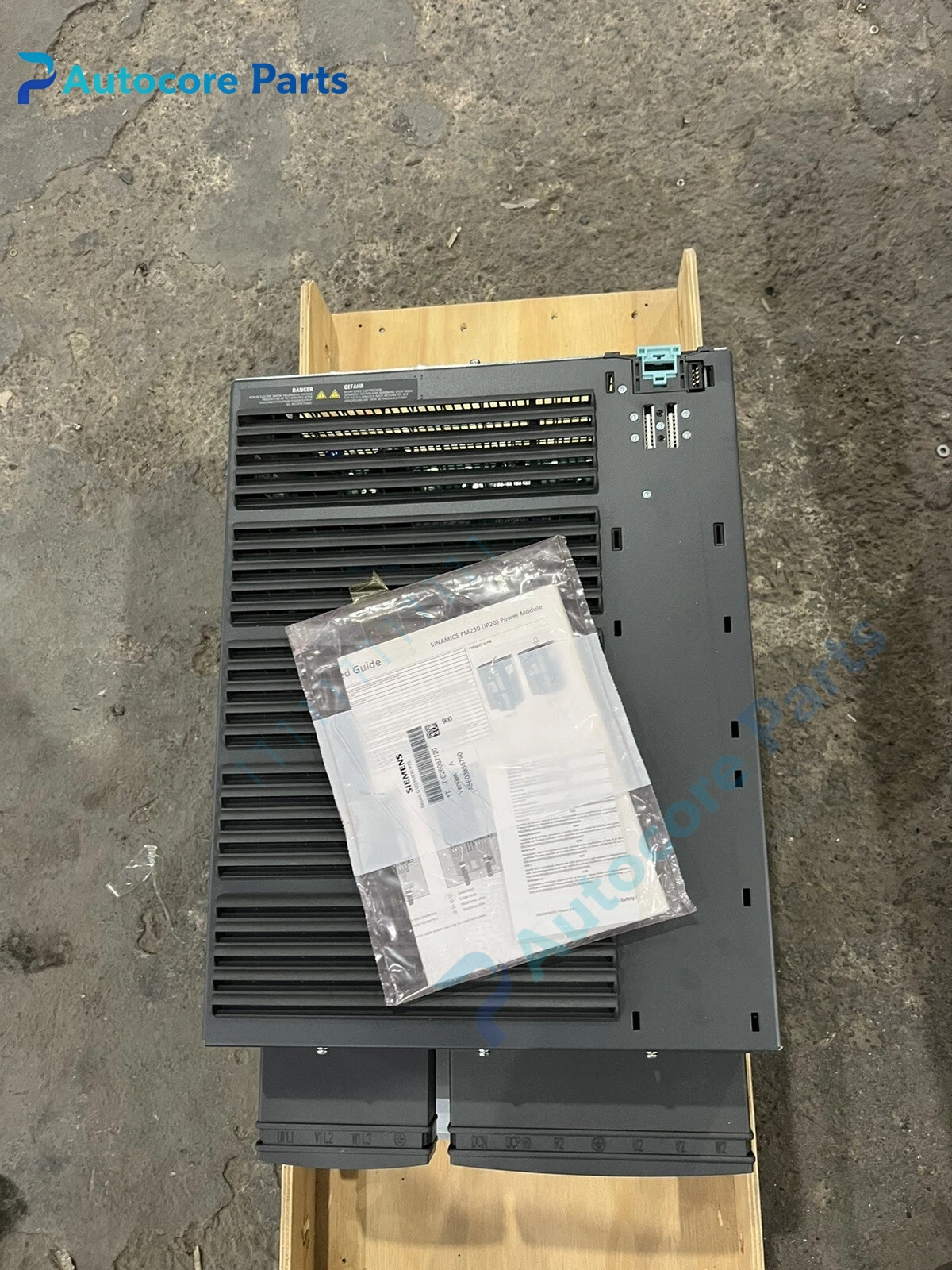

Siemens 6SL3210-1NE31-5UL0 G120 Power Module Unit

Module Feature

6SL3210-1NE31-5UL0 is PM230 power module of Siemens SINAMICS G120 series.

It works with CU240B/E-2 or CU230P-2 control unit, supports induction motor V/F and vector speed control. It is unfiltered design without built-in EMC filter. This model is widely used for conveyor, fan, pump and general industrial speed regulation.

Working principle

Three-phase AC is rectified to DC bus, internal IGBT unit outputs adjustable PWM AC to motor.

The power module executes power conversion, and protection logic is completed by matched control unit. It provides protection of overcurrent, over-temperature, bus overvoltage and phase loss.

Onboard components

Rectifier bridge, IGBT inverter unit, DC bus capacitors, current sampling circuit, cooling fan, power terminal block, control unit interface.

LED indicators

Front LEDs display power status, ready signal and fault alarm.

Hardware self‑diagnosis

Power-on self-test and continuous monitoring detect over-temperature, bus deviation and power unit fault, fault codes are read via control unit.

Programming software

Starter, used for parameter setting, motor auto-tune and fault diagnosis.

Electrical & Process Parameters

Model:6SL3210-1NE31-5UL0 Brand:Siemens Device type:G120 PM230 power module Voltage:380~480V 3-phase AC Rating:75kW low overload Design:Unfiltered Function:AC motor speed regulation

Mechanical & Structure

Mounting:Cabinet wall mount

Protection class:IP20

Housing:Metal power module chassis

Environmental

Operating temperature:0℃ ~ +40℃

Storage temperature:-40℃ ~ +85℃

Ambient humidity:5~95% non‑condensing

Certification:CE

Status:Siemens original spare, discontinued

Installation

Install in ventilated cabinet, separate power and control wiring.

Match with compatible CU control unit, set motor parameters and complete commissioning. Clean fan and radiator dust periodically.

Interface

3-phase power input terminals, motor output terminals, control unit connector.

Diagnostic

Over-temperature fault: Fan blocked, poor cabinet ventilation.

DC bus overvoltage: Regenerative energy without brake processing.

No communication: Loose control unit connection, incompatible firmware.

Product Brief

Siemens 6SL3210-1NE31-5UL0 SINAMICS G120 PM230 power module, 75kW unfiltered VFD power unit for fan and conveyor maintenance replacement.
