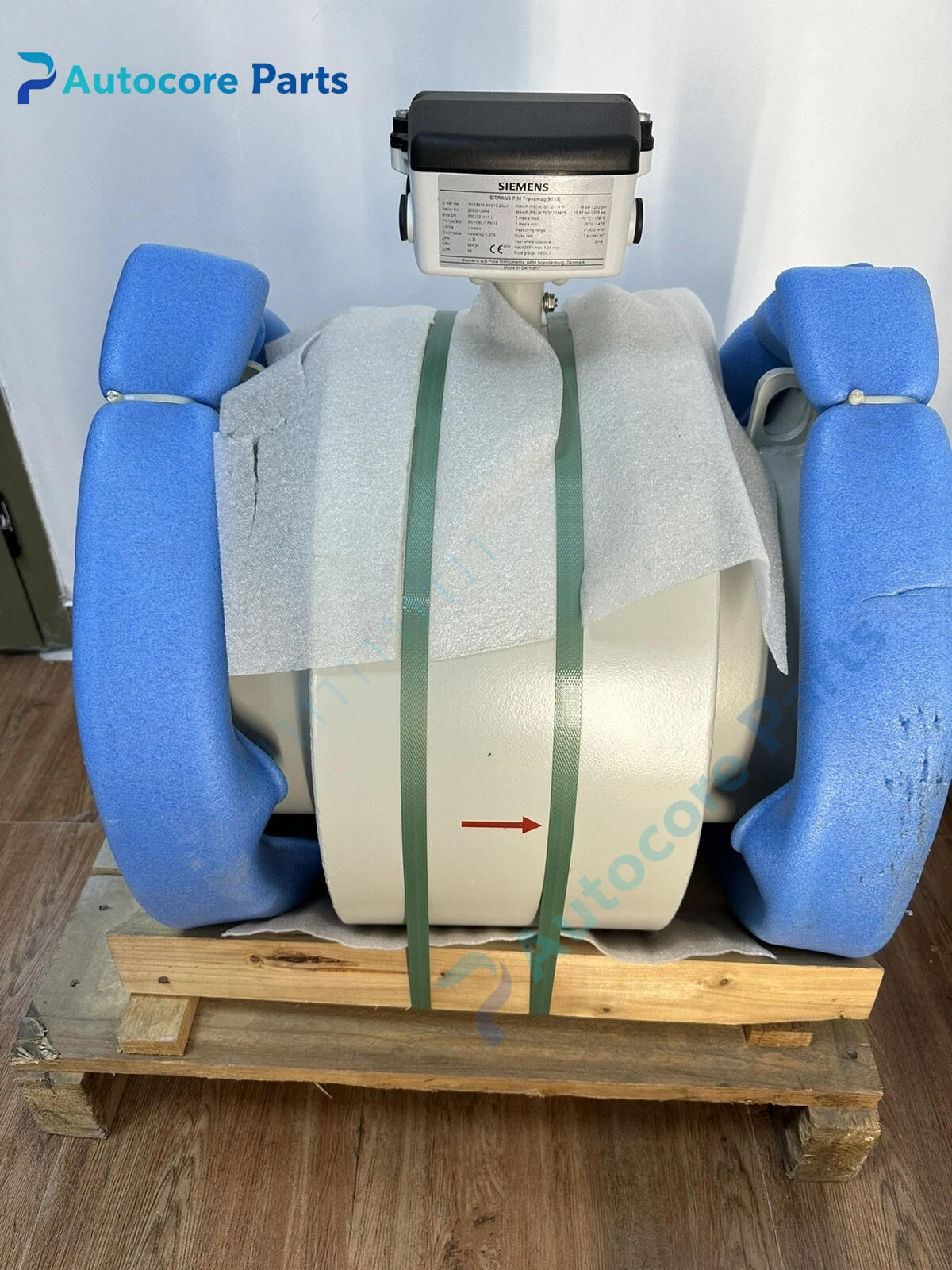

Siemens 7ME5610-5DC15-2AA1 Mag Flow Sensor Unit

Module Feature

7ME5610-5DC15-2AA1 is a remote mounted electromagnetic flow sensor under Siemens SITRANS FM Transmag 911/E series.

It adopts full bore flange structure according to EN 1092-1 PN16, nominal diameter DN300 (12 inch). The wetted parts are equipped with Linatex rubber liner and Hastelloy C4 electrodes, which provide excellent wear and corrosion resistance. It uses AC excitation principle instead of DC excitation, effectively suppressing slurry noise and zero drift. It is designed for heavy-duty media including paper pulp, mining slurry and mineral processing conductive liquids, and must work with a separate remote signal converter.

Working principle

Based on Faraday’s law of electromagnetic induction.

When conductive liquid flows through the measuring pipe and cuts the magnetic field, induced voltage is generated on the two measuring electrodes. The signal is transmitted to the remote transmitter via shielded signal cable, then converted into flow value, 4-20mA or digital bus output. Temperature and conductivity compensation are processed inside the transmitter.

Onboard components

Excitation coil assembly, measuring tube with Linatex liner, Hastelloy C4 electrode set, terminal junction box, carbon steel flange body, sealing gaskets.

LED indicators

No LED indicators on sensor body. Status, flow value and fault codes are displayed on the matched remote flow transmitter.

Hardware self‑diagnosis

Sensor itself has no independent self-diagnosis circuit. The paired transmitter continuously detects coil breakage, electrode short/ open circuit, cable interruption and signal abnormality.

Programming software

Siemens Flow Configuration Tool, used for flow range setting, damping adjustment and diagnostic log checking on transmitter side.

Electrical & Process Parameters

Model:7ME5610-5DC15-2AA1 Brand:Siemens Device type:Remote electromagnetic flow sensor Size:DN300, PN16 Liner:Linatex Electrode:Hastelloy C4 Function:Volume flow measurement of conductive slurry and process liquid

Mechanical & Structure

Mounting:Pipeline flange inline installation

Protection class:IP67

Housing:Carbon steel flange body with rubber lining

Environmental

Operating temperature:-20℃ ~ +80℃ Storage temperature:-40℃ ~ +85℃ Ambient humidity:5~95% non‑condensing

Certification:CE, IEC

Status:Original Siemens process flow spare

Installation

Install the sensor on straight pipe section with enough upstream and downstream straight run.

Keep the measuring tube full of liquid, avoid air pocket and sediment accumulation. Connect excitation cable and electrode signal cable to remote converter and perform zero calibration.

Interface

Coil wiring terminal, electrode signal terminal, flange connection face for process pipeline.

Diagnostic

Zero drift: Air entrainment in liquid, sediment covering electrodes or cable interference. No flow signal: Broken excitation coil, open electrode circuit or reversed wiring. Unstable reading: Poor grounding or strong variable frequency interference.

Product Brief

Siemens 7ME5610-5DC15-2AA1 Transmag 911/E remote mag flow sensor, DN300 PN16 slurry meter for pulp and mining process flow measurement replacement
