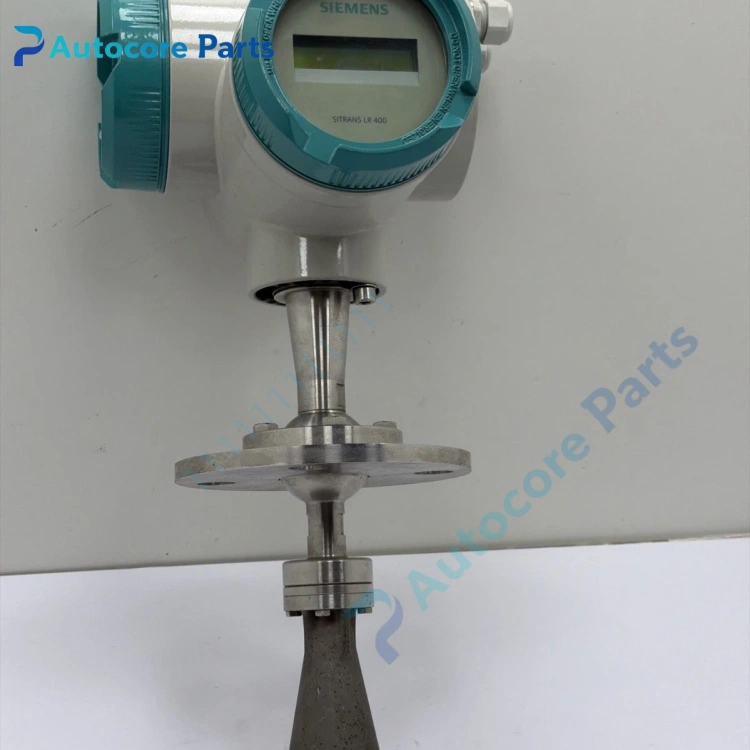

Siemens 7ML5420-0AB00-1BA2 SITRANS LR200 Radar Level Meter Unit

Feature & Principle

This pulse radar level gauge emits microwave pulses to the material surface, calculates distance by measuring the time of reflected echo. It is not affected by medium color, dust, steam and slight foam, supports HART remote parameter setting, transmits level value to PLC/DCS through 4-20mA signal.

Specifications

Model: 7ML5420-0AB00-1BA2 Brand: Siemens Series: SITRANS LR200 Frequency: 6 GHz Output: 4-20mA + HART Power supply: Two-wire loop powered Antenna: Horn antenna Measuring range: Max 20m Protection: IP66 Certification: CE

Components & Diagnostics

Radar electronic module, horn antenna, process connection, HART communication circuit, status indicator. Common faults: echo loss, signal drift, antenna fouling, communication failure.

Product Brief

7ML5420-0AB00-1BA2 radar level transmitter, Siemens level instrument spare widely used for water tank, chemical storage tank and grain silo continuous level monitoring.
