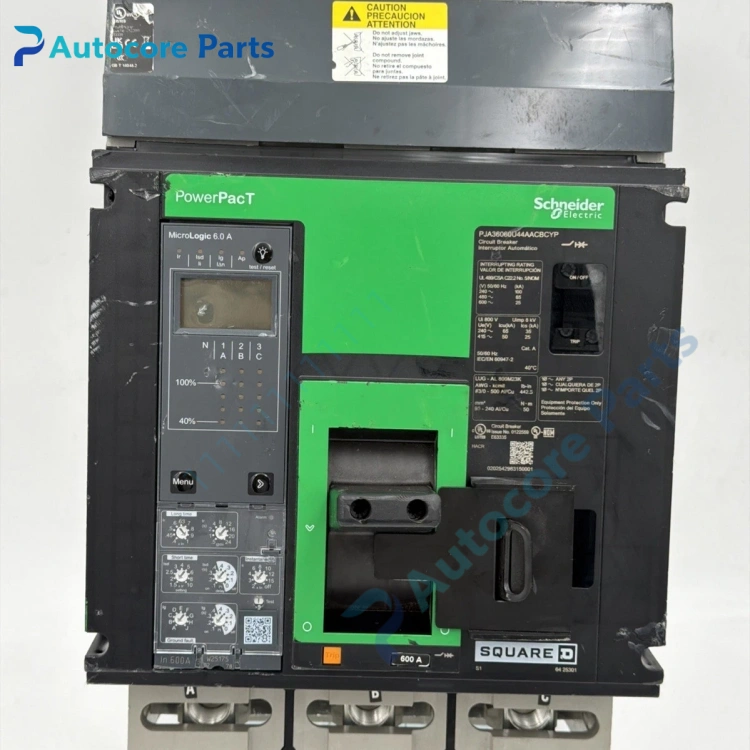

Square D PJA36060U44AACBCYP PowerPacT P MCCB Unit

Feature & Principle

This electronic molded case circuit breaker uses Micrologic 6.0A trip unit, provides adjustable overload, short-time delay, instantaneous and ground fault LSIG protection. It supports electrical parameter measurement and fault recording, built-in communication function. The I-Line plug-in structure is convenient for cabinet installation and replacement, and matched shunt trip / auxiliary switch realizes remote tripping and status feedback.

Specifications

Model: PJA36060U44AACBCYP Brand: Square D (Schneider Electric) Series: PowerPacT P Frame: P-Frame Poles: 3P Rated current: 600A Rated voltage: 600VAC Interrupt capacity: 25kA@600VAC Trip unit: Micrologic 6.0A (LSIG) Mounting: I-Line plug-in Accessories: Auxiliary switch, alarm switch, shunt trip coil Certification: UL, CSA, CE

Components & Diagnostics

Electronic trip unit, current transformer, main contact set, arc extinguishing chamber, operating handle, auxiliary contact assembly, shunt trip coil. Common faults: false tripping, contact overheating, trip unit communication failure, shunt trip failure.

Product Brief

PJA36060U44AACBCYP molded case circuit breaker, Square D low voltage power spare widely used for industrial power distribution cabinets, factory main incoming and large motor branch protection.
