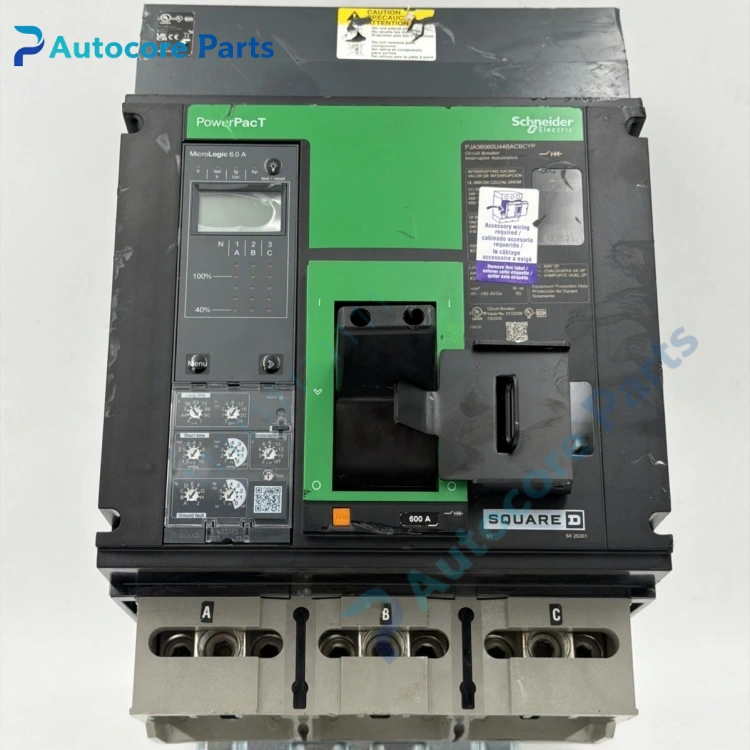

Square D PJA36060U44BACBYP PowerPacT P MCCB Unit

Feature & Principle

This electronic molded case circuit breaker uses Micrologic 6.0A trip unit, provides adjustable overload, short-time delay, instantaneous and ground fault LSIG protection. It supports electrical parameter measurement and fault record. I-Line plug-in mounting simplifies cabinet installation and replacement, auxiliary and alarm contacts feedback breaker on/off and trip status to control system.

Specifications

Model: PJA36060U44BACBYP Brand: Square D (Schneider Electric) Series: PowerPacT P Frame: P-Frame Poles: 3P Rated current: 600A Rated voltage: 600VAC Interrupt capacity: 25kA@600VAC Trip unit: Micrologic 6.0A (LSIG) Mounting: I-Line plug-in Accessories: Auxiliary switch, alarm switch Certification: UL, CSA, CE

Components & Diagnostics

Electronic trip unit, current transformer, main contact set, arc extinguishing chamber, operating handle, auxiliary & alarm contact assembly. Common faults: false tripping, contact overheating, trip unit communication failure, auxiliary contact signal loss.

Product Brief

PJA36060U44BACBYP molded case circuit breaker, Square D low voltage power spare widely used for industrial power distribution cabinets and large motor branch protection.
