Siemens TP2200 Comfort HMI Operator Panel Unit

Module Feature

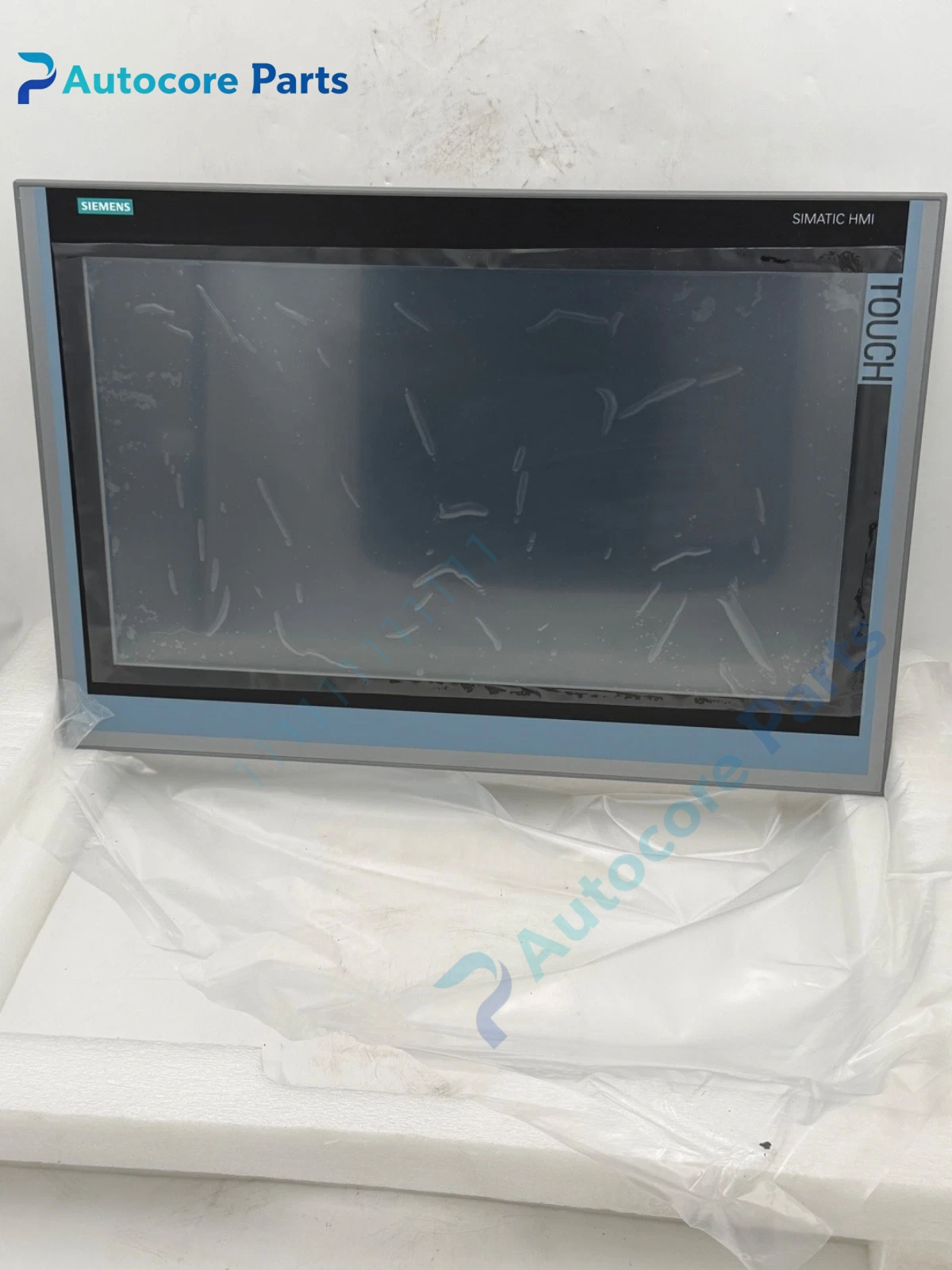

6AV2124-0XC02-0AX0 is Siemens SIMATIC TP2200 Comfort series industrial touch HMI.

It adopts 21.5-inch TFT widescreen, 1920×1080 full HD resolution, touch-only operation mode. It supports WinCC Comfort engineering software for configuration, compatible with S7-1200, S7-1500, S7-300/400 PLC. Communication ports include PROFINET Ethernet, PROFIBUS DP and dual USB interfaces. Front panel IP65 protection grade, suitable for cabinet front mounting. It supports recipe management, alarm logging, trend curve and user authority management, commonly used as replacement spare for large automation control cabinet operation station.

Working principle

The HMI downloads visualization project from TIA Portal, establishes communication link with PLC via industrial bus.

It reads real-time process data, alarm information and equipment status from controller, displays on screen for operator monitoring. It receives touch operation command, sends setpoint and interlock signal back to PLC to realize manual control. Internal storage saves alarm history, trend data and recipe files.

Onboard components

TFT touch display assembly, main CPU board, flash memory module, PROFINET / PROFIBUS communication chip, USB interface circuit, 24VDC power isolation circuit, front protective film and metal mounting frame.

LED indicators

Front LEDs indicate power status, RUN running, bus communication link and system fault.

Hardware self‑diagnosis

Built-in supervision detects communication disconnection, storage error, touch panel failure and power supply anomaly. Fault information is displayed on HMI boot screen and diagnostic view.

Programming software

TIA Portal + WinCC Comfort, used for screen configuration, alarm setup, communication parameter, recipe and user permission configuration.

Electrical & Process Parameters

Model:6AV2124-0XC02-0AX0 Brand:Siemens Device type:SIMATIC Comfort touch HMI panel Function:Process monitoring, alarm display and manual operation for automation system

Mechanical & Structure

Mounting:Cabinet cutout flush mounting Protection class:IP65 front, IP20 rear Housing:Aluminum alloy front frame + plastic rear housing

Environmental

Operating temperature:0℃ ~ +50℃ Storage temperature:-40℃ ~ +85℃ Ambient humidity:5~95% non‑condensing

Certification:CE, UL, cUL

Status:Original Siemens HMI spare

Installation

Cut cabinet panel according to drawing dimension, lock mounting clips evenly.

Wire 24VDC power and communication cable, download HMI project, set PLC communication address before commissioning.

Interface

PROFINET Ethernet port, PROFIBUS-DP terminal, USB host port, 24VDC DC power terminal.

Diagnostic

Communication loss: Bus cable damaged, IP/DP address mismatch or PLC communication port disabled. Touch unresponsive: Touch layer damaged, calibration lost or backlight failure. Project cannot run: Project version mismatch, flash storage fault or firmware error.

Product Brief

Siemens 6AV2124-0XC02-0AX0 HMI panel, TP2200 Comfort 21.5 inch touch screen spare for industrial control cabinet operation station replacement.
