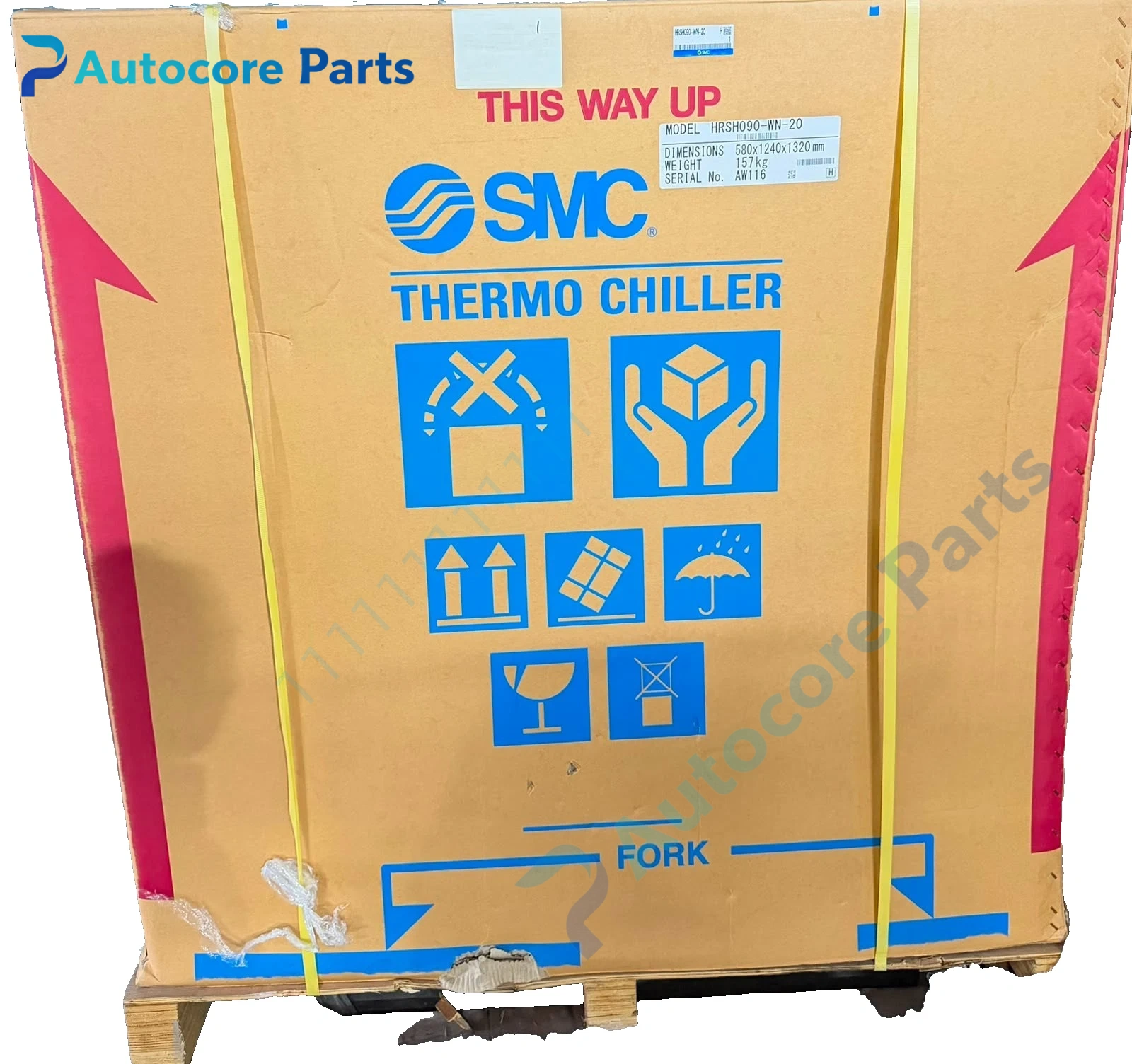

SMC HRSH090-WN-20 Water Cooled Thermo Chiller Unit

Module Feature

HRSH090-WN-20 belongs to SMC HRSH090 series inverter-type thermo chiller. W stands for water-cooled structure, N is configuration option, 20 stands for 200V power specification. It adopts variable frequency compressor control, stable cooling capacity output, temperature control precision up to ±0.1℃ under stable load. The wetted parts support deionized water, ethylene glycol aqueous solution and other cooling media. Built-in flow, pressure and temperature multi-point monitoring, with multiple safety interlock protection. Compact cabinet layout, low noise operation. Widely used for laser processing equipment, CNC spindle cooling, semiconductor process equipment and laboratory analytical instruments.

Working principle

The refrigeration circuit uses inverter compressor to adjust cooling power dynamically according to the set temperature. The heat of the circulating fluid is transferred to the refrigerant through plate heat exchanger. The cooling water from factory water system takes away the condensation heat of refrigerant. PID controller adjusts compressor frequency in real time to keep the outlet fluid temperature stable within the target range. Internal circulating pump drives cooling liquid to circulate to the load side.

Onboard components

Inverter compressor, plate heat exchanger, circulating pump, expansion valve, pressure sensor, temperature sensor, PID touch controller, flow switch, safety relief valve, internal piping and filter assembly.

LED indicators

Touch screen display with LED alarm lamp, shows running status, temperature, flow and fault alarm information.

Hardware self‑diagnosis

Self-diagnosis covers high/low refrigerant pressure, flow shortage, over-temperature, pump overload, cooling water abnormality and sensor failure. Fault codes are stored and displayed on the panel.

Programming software

Local touch screen edits temperature setpoint and alarm parameters; supporting SMC monitoring software for remote status reading and data logging.

Electrical & Process Parameters

Model:HRSH090-WN-20 Brand:SMC Device type:Water-cooled Inverter Thermo Chiller Cooling capacity:9.5 kW Power supply:3AC 200V Temperature setting range:5 ~ 40 ℃ Temperature stability:±0.1 ℃ Circulation flow:45 L/min @0.5 MPa Media:Clean water, 15% ethylene glycol solution, DI water Cooling method:Water cooled Function:Constant temperature circulating cooling for laser, machine tool and semiconductor equipment

Mechanical & Structure

Mounting:Indoor floor standing placement Protection class:IP20 Housing:Coated metal cabinet

Environmental

Operating temperature:5 ~ +45℃ Storage temperature:-20℃ ~ +60℃ Ambient humidity:30~70% non‑condensing Certification:CE compliant Status:SMC original industrial circulating chiller

Installation

Place the chiller on a stable indoor ground. Connect factory cooling water inlet/outlet, cooling liquid circulation pipeline and drain. Wire three-phase power supply. Fill circulation medium, exhaust air, set target temperature on touch screen and test operation.

Interface

Process fluid inlet/outlet port, facility cooling water inlet/outlet port, drain port, electrical power terminal, signal alarm terminal.

Diagnostic

Temperature cannot drop:Factory cooling water flow insufficient, refrigerant leakage or filter clogged. Low flow alarm:Circulation pump fault, pipeline blockage or air trapped in loop. High pressure alarm:Condenser scaling, cooling water temperature too high.

Product Brief

SMC HRSH090-WN-20 water-cooled inverter thermo chiller, 9.5kW cooling capacity, ±0.1℃ temperature stability, for constant temperature cooling of laser, machine tool and semiconductor process equipment.
