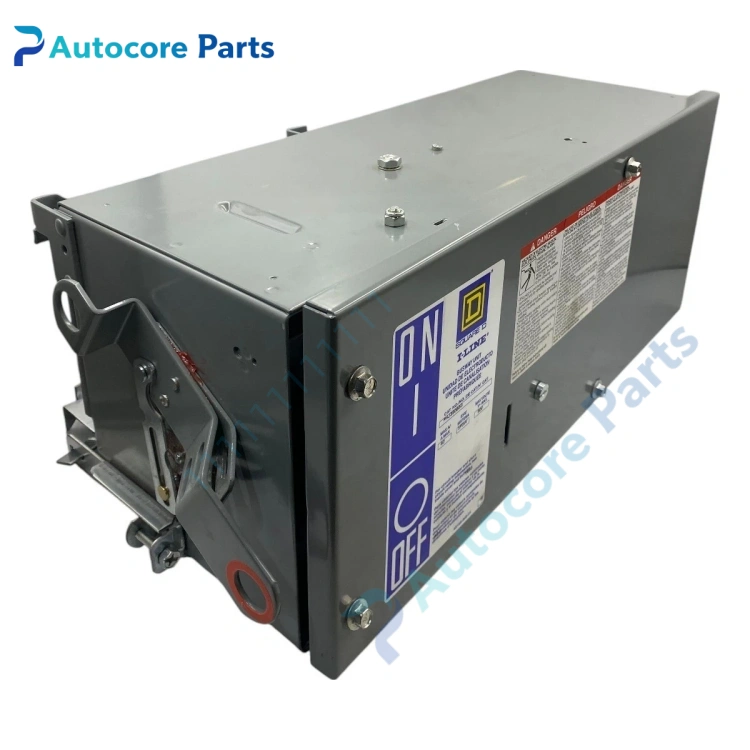

Square D CATPHJ36060G Circuit Breaker

Feature & Principle

It is Square D PHJ series plug-in molded case circuit breaker. It adopts thermal-magnetic trip unit, provides long-time overload protection and instantaneous short-circuit protection. Plug-in structure supports quick installation and replacement without re-wiring. It has high short-circuit withstand capability, suitable for distribution branch circuit and motor load protection. Widely used for industrial control cabinets and power distribution panel maintenance replacement.

Specifications

Model: CATPHJ36060G Brand: Square D (Schneider Electric) Frame: J Frame Pole: 3P Rated current: 60 A Rated voltage: 600 VAC Trip type: Thermal magnetic Mounting: Plug-in Standard: UL489, IEC60947-2 Application: Low voltage distribution cabinet, motor branch protection Certification: UL, CE

Components & Diagnostics

Molded housing, contact assembly, arc extinguishing chamber, thermal magnetic trip unit, plug-in base. Common faults: contact overheating, tripping failure, abnormal trip, arc chamber pollution.

Product Brief

CATPHJ36060G molded case circuit breaker, Square D PHJ series plug-in power protection spare widely used for distribution cabinet overhaul and replacement.
