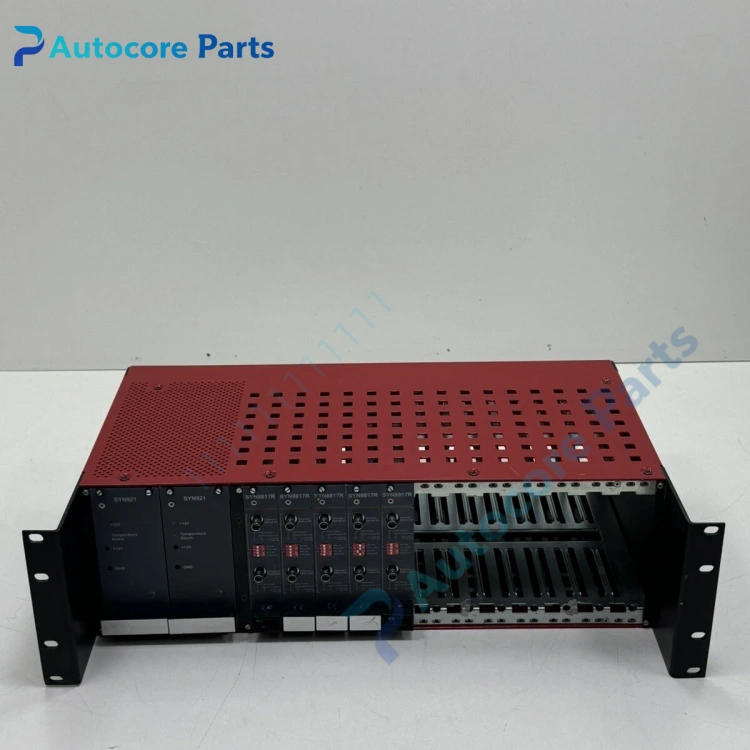

SYN350N Generator Synchronizer Module

Feature & Principle

It collects voltage and frequency signals from different generator units and busbar. The internal circuit compares phase difference, frequency deviation and voltage difference, outputs closing permission signal when synchronization condition is satisfied, prevents asynchronous paralleling and avoids impact current to protect generator winding. It supports manual and auto synchronization mode.

Specifications

Model: SYN350N Signal input: 100~480V AC Frequency range: 50/60Hz Power supply: 24VDC Output: Relay contact signal Mounting: DIN rail / panel mount Protection: Overvoltage, signal loss protection Certification: CE

Components & Diagnostics

Signal sampling board, microprocessor unit, relay output terminal, status LED indicator. Common faults: no sync signal, phase detection error, relay output failure, power supply abnormal, signal sampling drift.

Product Brief

SYN350N synchronization module, genset control spare widely used for standby generator, marine power unit and multi-generator parallel cabinet maintenance.
