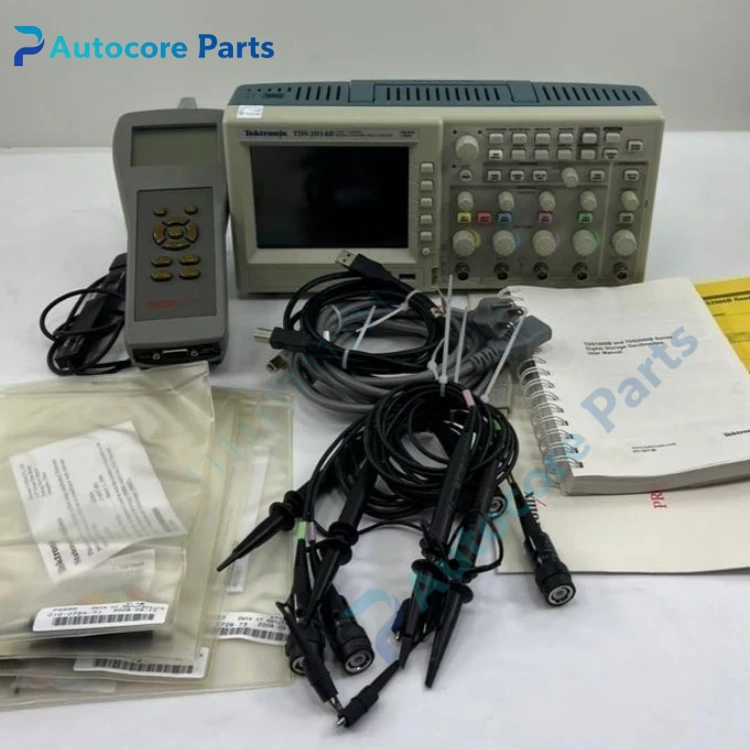

Tektronix TDS2014B Digital Storage Oscilloscope

Feature & Principle

It samples analog electrical signals at high speed, converts them into digital data and restores waveform on color LCD screen. It supports auto measurement, FFT spectrum analysis, pulse width trigger and video trigger. Built-in USB port supports data storage and PC communication, lightweight design for field test and lab debugging.

Specifications

Model: TDS2014B Brand: Tektronix Bandwidth: 100 MHz Channels: 4 analog channels Real-time sampling rate: 1 GS/s Record length: 2.5 k points Display: Color LCD Interface: USB host & device port Power supply: 100~240V AC Application: Circuit test, maintenance, R&D verification Certification: CE

Components & Diagnostics

Mainboard, acquisition module, color display panel, control keyboard, USB interface, power supply unit. Common faults: no waveform display, channel gain offset, USB communication failure, screen backlight damage, power supply failure.

Product Brief

TDS2014B oscilloscope, Tektronix test instrument spare widely used for electronic workshop, automation maintenance and laboratory circuit inspection replacement.
