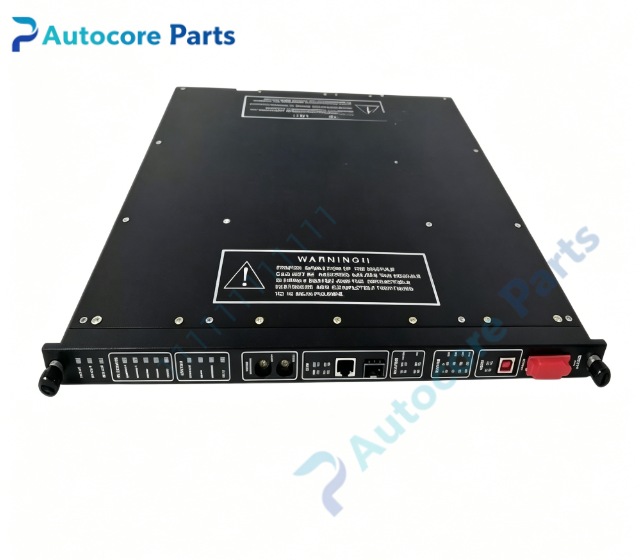

Triconex 3009 TMR Enhanced Main Processor Module

Technical Specifications

Model:3009

Brand:Triconex

Product Type:TMR triple modular redundant enhanced main processor(UMP) module

CPU:Motorola MPC860 32‑bit RISC @50MHz,three‑channel lock‑step TMR architecture

Memory:16MB DRAM,32KB SRAM

System Bus:TriBus,25Mbps triple redundant synchronization bus

Communication Interfaces:Ethernet,2×RS‑232,1×USB;support Modbus TCP/RTU,OPC communication

Max System Expansion:Support up to 15 local/remote racks,118 I/O modules

Function:User safety logic execution,system overall diagnosis,SOE event sequence recording with high‑precision time stamp

Power Supply:Powered by Tricon chassis backplane +5VDC;typical power consumption 15W

Architecture:2‑out‑of‑3 TMR hardware voting,three independent processing paths

Safety Level:SIL3 IEC61508 TÜV certified

Feature:Hot‑swap supported,comprehensive self‑diagnosis for CPU/memory/bus/I/O,front‑panel PASS/FAULT/ACTIVE LED indicator

System Compatibility:Tricon Classic SIS v9/v10/v11;TriStation1131 programming software

Remark:Must install in main processor slot of Tricon host rack,match power supply and backplane;legacy EOL spare component

Module Form:Standard rack plug‑in processor module

Weight:2.90 kg

Dimension:490 mm×453 mm×68 mm

Protection Grade:IP20

Certification:SIL3,TÜV,CE

Working Temperature:0℃ ~ +60℃,non‑condensing

Storage Temperature:‑40℃ ~ +85℃

Humidity:5%‑95% non‑condensing

Application:Petrochemical,oil & gas,power plant ESD,HIPPS,BMS safety instrumented system,core controller for safety logic calculation,SOE event recording,system maintenance and spare‑part replacement.

Product Details

3009 (UMP) is the core enhanced main processor for Triconex Tricon Classic SIS safety system. It executes safety control logic,realizes three‑channel lock‑step operation via TriBus high‑speed redundant bus,adopts 2oo3 hardware voting mechanism,single‑channel hardware fault will not lead to unsafe system status.

Supports large‑scale system expansion and high‑precision SOE event sequence recording for accident traceability. Multiple communication interfaces realize data interconnection with DCS,SCADA,HMI and third‑party equipment. Built‑in full‑range self‑diagnosis function,real‑time monitoring of processor,memory,buses and I/O status,accurate fault positioning. Hot‑swap design allows processor replacement without system shutdown,improves system maintainability. Widely deployed in petrochemical,oil‑gas and thermal‑power high‑safety‑level SIS racks.

Note:This is legacy EOL spare component,widely used for safety system spare‑part replacement.
