Triconex 3664 TMR Digital Output Module

Technical Specifications

Model:3664

Brand:Triconex

Product Type:TMR triple modular redundant digital output module

Channel Count:32 commoned digital output channels,solid‑state relay output

Output Voltage:16‑30VDC(Nominal 24VDC),36VDC max surge withstand

Current Rating:2A continuous per channel;10A surge for 10ms

Voltage Drop:＜1.5VDC typical

Leakage Current:Max 2mA per channel

Isolation:1500VDC minimum channel‑to‑system isolation

Architecture:2‑out‑of‑3 TMR hardware voting,three independent signal processing paths

Diagnosis:Field loop fault monitoring,open‑circuit and short‑circuit detection

Safety Level:SIL3 IEC61508 TÜV certified

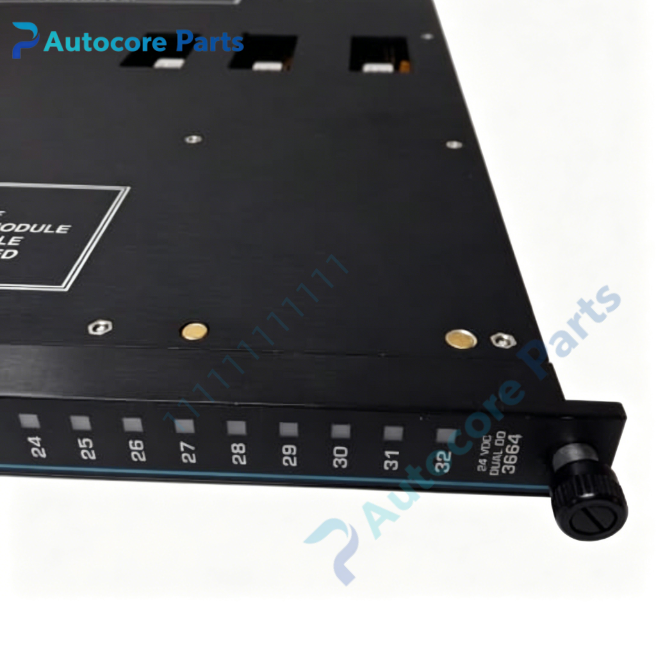

Feature:Hot‑swap supported,front‑panel PASS/FAULT/CHANNEL status LED indicator

System Compatibility:Tricon Classic SIS rack

Remark:Must install inside Tricon rack,match Tricon CPU,power supply and backplane;legacy EOL spare component

Module Form:Standard rack plug‑in module

Weight:4.00 kg

Dimension:490 mm×453 mm×68 mm

Protection Grade:IP20

Certification:SIL3,TÜV,CE

Working Temperature:‑40℃ ~ +70℃,non‑condensing

Storage Temperature:‑40℃ ~ +85℃

Humidity:5%‑95% non‑condensing

Application:Petrochemical,oil & gas,power plant ESD,BMS,F&G safety interlock system,drive solenoid valves,relays,on‑site alarm devices,system maintenance and spare‑part replacement.

Product Details

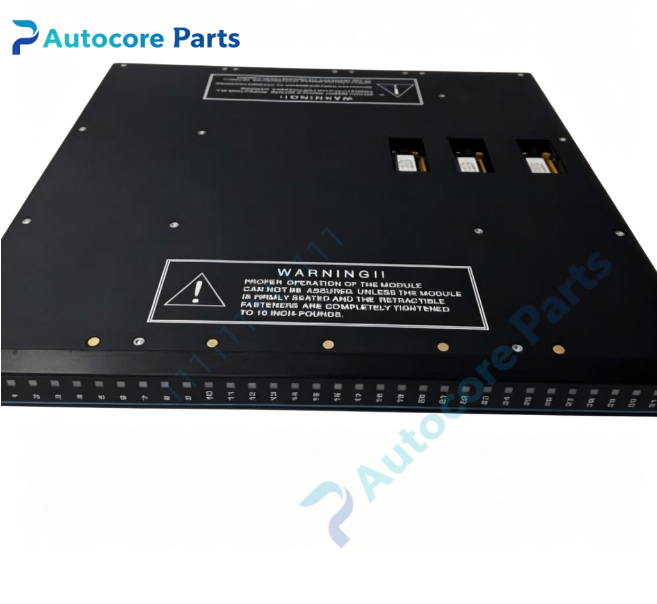

3664 is high‑density TMR triple‑modular‑redundant digital output module for Triconex Tricon Classic safety instrumented system. It receives safety logic commands from main processor and outputs switching signals for field safety actuators.

32‑point commoned solid‑state output design,high channel density saves cabinet space. Adopts 2oo3 hardware voting mechanism,each channel controlled by three independent circuit paths,single‑path fault will not trigger unsafe output. Single‑channel 2A continuous driving capability,suitable for driving solenoid valves and relays directly. Supports field loop fault diagnosis to detect loop abnormal status.

Hot‑swap design allows module replacement without SIS system shutdown. Front‑panel LED indicates module running,fault and channel state. Widely deployed in petrochemical,oil‑gas and thermal‑power SIS safety racks for large‑quantity safety switching output.

Note:This is legacy EOL spare component,widely used for safety system spare‑part replacement.
