Triconex 8312 AC Power Supply Module

Technical Specifications

Model:8312

Brand:Triconex

Product Type:AC input rack power supply module

Input Voltage:185‑285VAC,Nominal 230VAC,47‑63Hz,3‑wire,2.5A time‑delay fuse

Output:5.1VDC logic power,isolated 24VDC field power;Max total power 220W

Redundancy:Supports N+1 hot‑standby redundant configuration

Feature:Hot‑swap supported,on‑board variable‑speed cooling fan,over‑voltage / over‑current / over‑temperature protection,hard‑wired alarm contacts

Indicator:Front‑panel LED:PASS,FAIL,ALARM,TEMP,BAT LOW

System Compatibility:Tricon main / expansion / RXM rack

Remark:Not suitable for ATEX hazardous‑area cabinet;Must install on power slot of Tricon chassis;legacy EOL spare component

Module Form:Standard rack plug‑in power module

Weight:2.85 kg

Dimension:490 mm×453 mm×68 mm

Protection Grade:IP20

Certification:CE

Working Temperature:0℃ ~ +60℃,non‑condensing;derating above 50℃

Storage Temperature:‑40℃ ~ +85℃

Humidity:5%‑95% non‑condensing

Application:Petrochemical,oil & gas,power plant ESD,HIPPS,BMS safety interlock system,supply stable power for controller,I/O and communication modules,system maintenance and spare‑part replacement.

Product Details

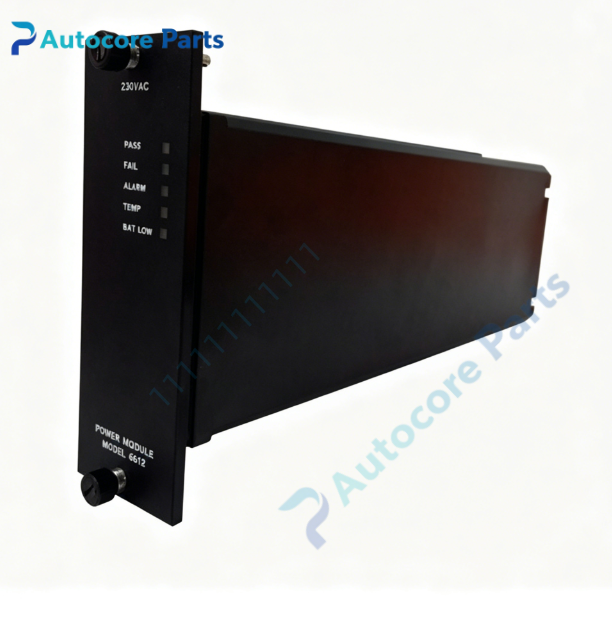

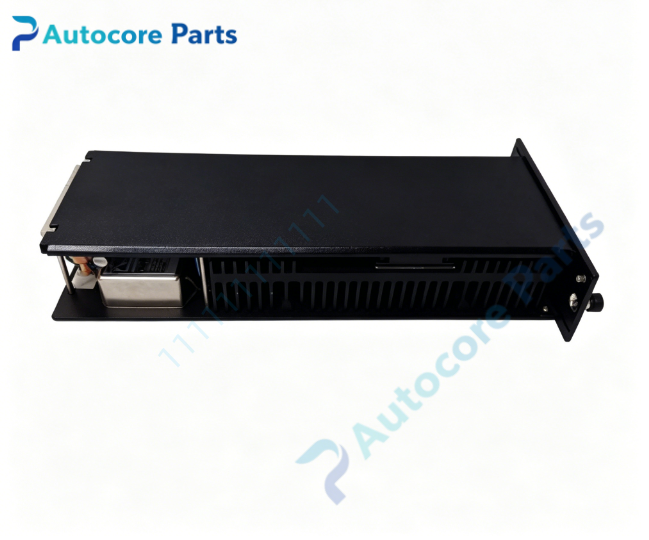

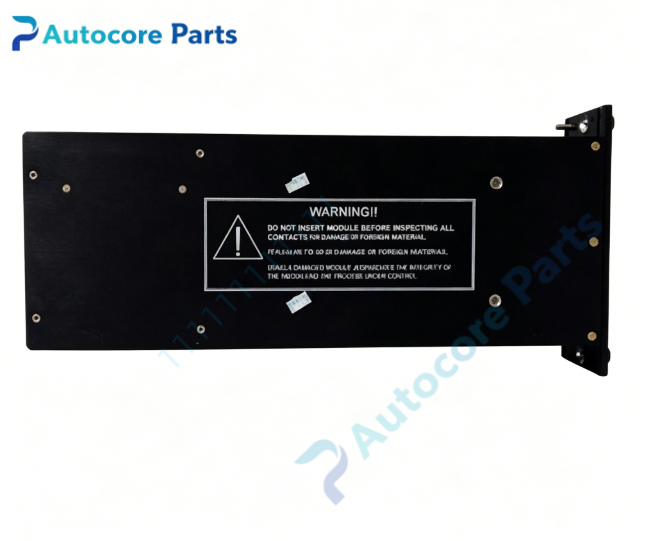

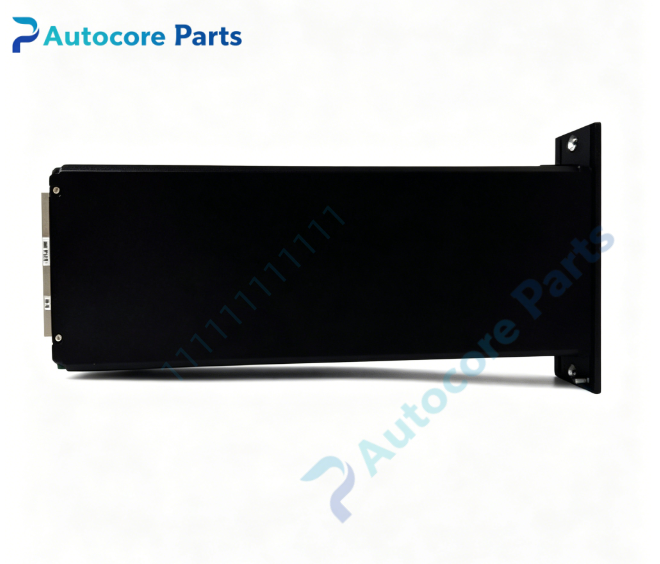

8312 is 230VAC input power supply module for Triconex Tricon SIS safety instrumented system,installed in the left‑hand power slot of Tricon chassis,converts AC mains into multi‑group regulated DC power for rack internal main processor,I/O modules and communication boards.

Supports N+1 redundant parallel running,hot‑swap design allows module replacement without SIS system shutdown. Built‑in variable‑speed fan and complete protection mechanism including over‑voltage,over‑current and over‑temperature shutdown. Front‑panel multi‑LED indicates running,fault,over‑temperature and low‑battery warning status,also provides hard‑wired alarm relay contacts for external alarm system connection.

Not applicable for cabinets requiring ATEX hazardous‑area certification;hazardous‑area scene shall select 8311 24VDC power module instead. Widely deployed in petrochemical,oil‑gas and thermal‑power safety‑critical SIS racks.
