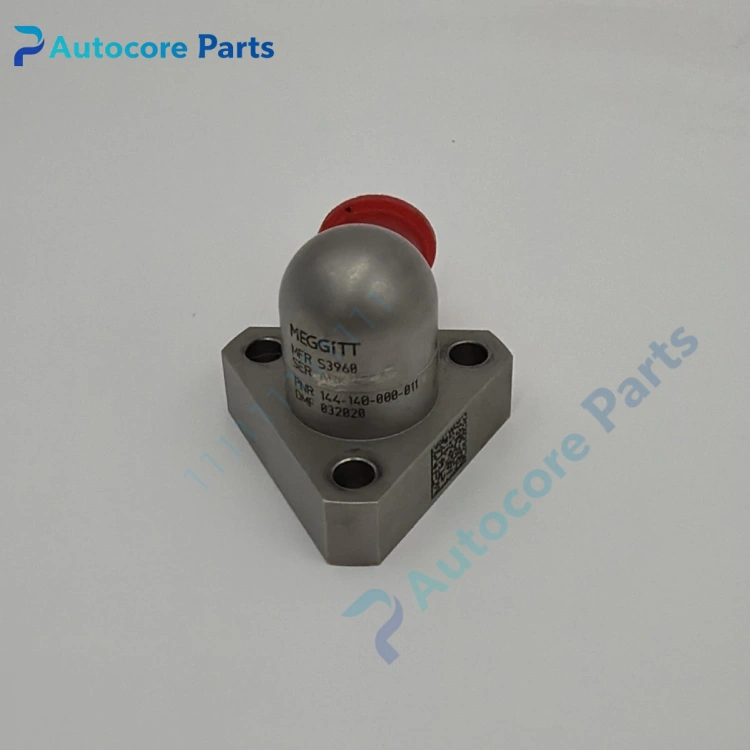

Vibro-Meter 144-140-000-011 CA140 Vibration Accelerometer Unit

Feature & Principle

It adopts piezoelectric sensing principle, built-in IEPE constant current drive circuit. Mechanical vibration acts on the piezo crystal and converts vibration acceleration into analog charge signal, then outputs standard IEPE signal to VM600 monitoring card. The system calculates vibration velocity/displacement value, realizes bearing vibration trending, alarm and turbine trip interlock protection.

Specifications

Model: 144-140-000-011 Brand: Vibro-Meter (Meggitt) Series: CA140 Signal type: IEPE Mounting: Stud mounting Housing: Stainless steel, hermetic sealing Compatible system: VM600 machinery monitoring system Working temperature: -55℃ ~ +125℃ Certification: CE, ATEX optional

Components & Diagnostics

Piezoelectric chip, built-in impedance converter circuit, metal sealed housing, MIL electrical connector. Common faults: no IEPE signal output, signal amplitude abnormal, intermittent signal dropout, connector pin corrosion, internal cable break.

Product Brief

144-140-000-011 accelerometer, Vibro-Meter TSI spare widely used for power plant steam turbine, gas turbine bearing vibration online monitoring and machinery protection system.
