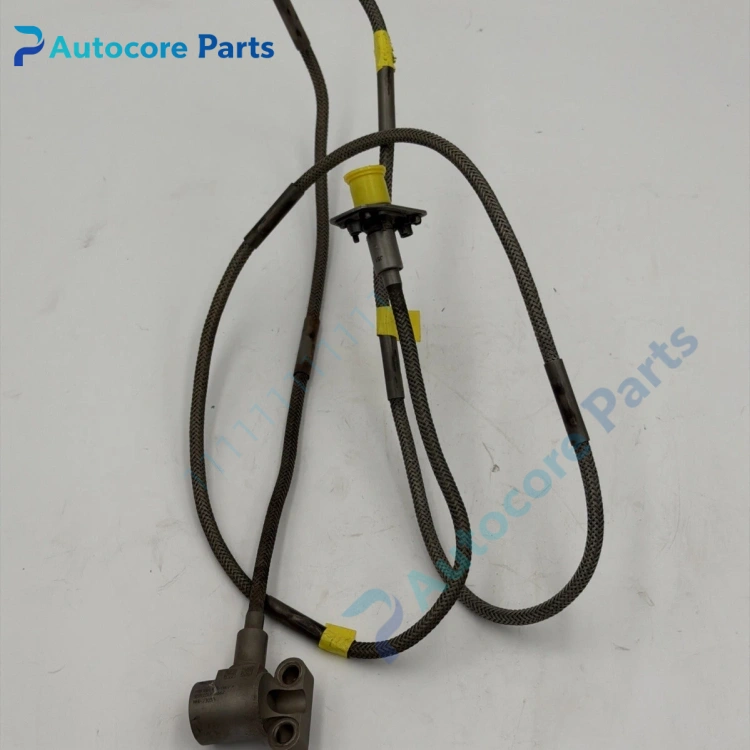

Bently Nevada 1020903-1 Proximity Probe Extension Cable Unit

Feature & Principle

It is a dedicated high-frequency coaxial cable for eddy current sensor system, transmitting high-frequency drive signal from proximitor to probe, and feeding back gap signal back to the monitor. Stable impedance ensures the gap voltage signal is not distorted, supporting shaft vibration, axial displacement and eccentricity monitoring of turbine and compressor.

Specifications

Model: 1020903-1 Brand: Bently Nevada (Baker Hughes) Type: Probe extension coaxial cable Matching: 3300 series eddy current probe system Connector: 2-pin microdot Working temperature: -55℃ ~ +177℃ Certification: CE, ATEX optional

Components & Diagnostics

Coaxial inner conductor, insulating layer, shielding layer, outer jacket, microdot connectors at both ends. Common faults: shielding damage, internal wire break, connector loose, impedance mismatch causing abnormal gap signal.

Product Brief

1020903-1 extension cable, Bently Nevada TSI spare widely used for power plant gas turbine, steam turbine and centrifugal compressor online condition monitoring system.
