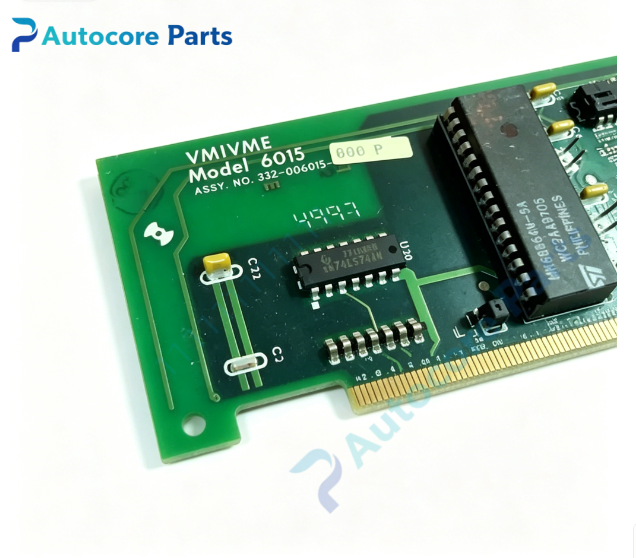

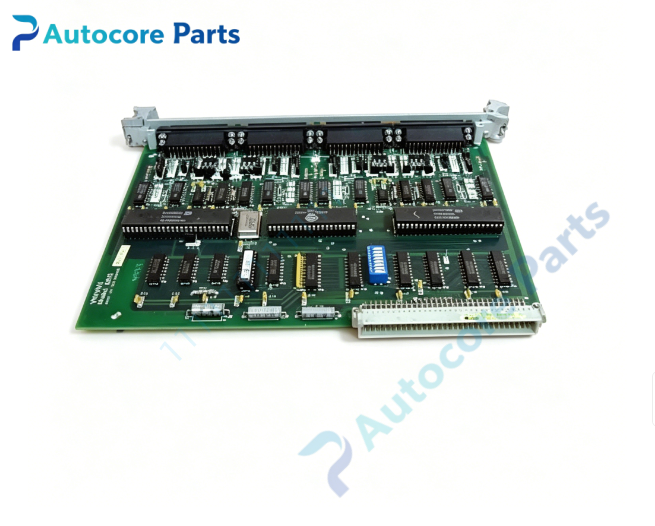

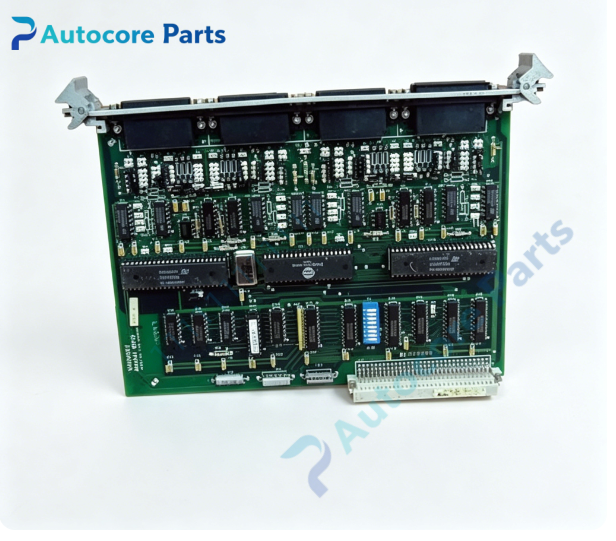

VMIC 332-006015-000 Signal Conditioning Assembly

Module Feature

332-006015-000 is a high-reliability auxiliary signal conditioning assembly manufactured by VMIC, designed for installation inside VME control cabinets. It serves as an intermediate signal conditioning unit between VME I/O boards and field sensors/actuators. The assembly integrates multi-channel low-pass filtering, transient surge clamping and common-mode noise suppression circuits to suppress voltage spikes and electromagnetic interference from field equipment. The printed circuit board adopts industrial grade components with vibration screening, supporting continuous long-term operation in power plant cabinet environments. Standard mounting holes are reserved for secure cabinet installation, and the pin definition of the matched connectors is consistent with original wiring harness. Widely used for maintenance replacement of gas/steam turbine monitoring systems, factory process control and semiconductor automation VME control racks.

Working principle

Field analog and digital signals enter the assembly, pass through RC filter network and transient protection components before outputting clean signals to VME I/O modules. The circuit absorbs inductive back EMF and electrostatic surge, reduces common-mode interference caused by ground potential difference, ensures stable signal acquisition of VMIC VME boards. It does not require software configuration and works passively once powered.

Onboard components

Custom printed circuit board, multi-channel RC filter array, TVS surge suppression diodes, ESD protection devices, multi-pin industrial connectors, metal mounting bracket, terminal pin header.

LED indicators

Power status LED, indicates normal power supply of the assembly.

Hardware self-diagnosis

Visual inspection of PCB, solder joints, connector pins and mounting bracket; pin-to-pin continuity test; insulation resistance test between signal line and ground; power-on signal quality verification with matched VME system.

Programming software

No dedicated configuration software, cooperate with VMIC VME diagnostic tool to verify overall system signal status.

Electrical & Process Parameters

Model: 332-006015-000 Brand: VMIC Device type: VME rack auxiliary signal conditioning assembly Control mode: Passive signal filtering and surge suppression Power supply: Matched with VME chassis auxiliary power Cooling: Convection cooling Protection: Transient surge suppression, ESD protection, common-mode noise filtering Mounting: Cabinet bracket mounting Protection class: PCB with optional conformal coating

Mechanical & Structure

Mounting: Cabinet bracket installation Protection class: PCB with optional conformal coating

Environmental

Operating temperature: 0℃ ~ +60℃ Storage temperature: -40℃ ~ +85℃ Ambient humidity: 5~95% non-condensing Certification: CE compliant Status: VMIC VME rack auxiliary signal conditioning spare assembly

Installation

Follow ESD safety procedure before handling. Fully power off VME chassis equipment. Secure 332-006015-000 assembly to cabinet mounting bracket. Plug matched wiring harness connectors in alignment. Check all wiring for short circuit risk. Power on equipment, run VMIC VME system signal check before commissioning.

Interface

Multi-pin signal connectors for field signal and VME I/O module, auxiliary power pins, ground terminal.

Diagnostic

No power LED: abnormal auxiliary power supply or loose connector contact. Signal distortion: filter component aging or ground loop interference. Signal discontinuity: broken wiring harness, PCB open circuit or corroded connector pins.

Product Brief

VMIC 332-006015-000 VME rack auxiliary signal conditioning assembly,with built-in noise filtering and surge suppression,for power plant turbine monitoring and industrial VME control system spare replacement.
