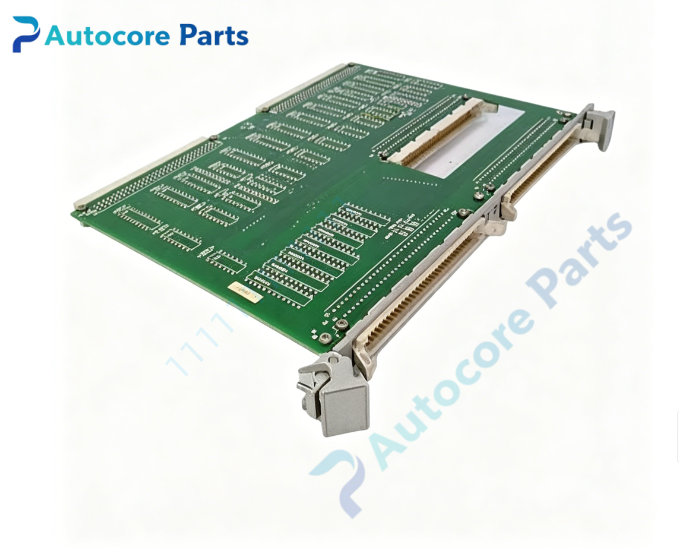

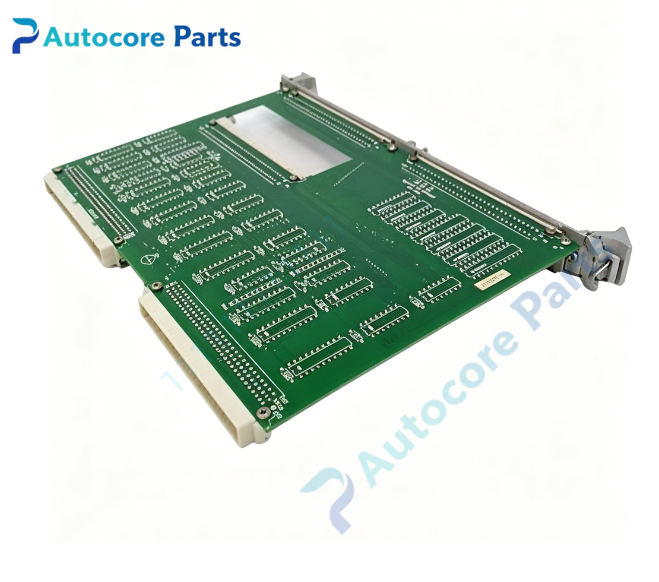

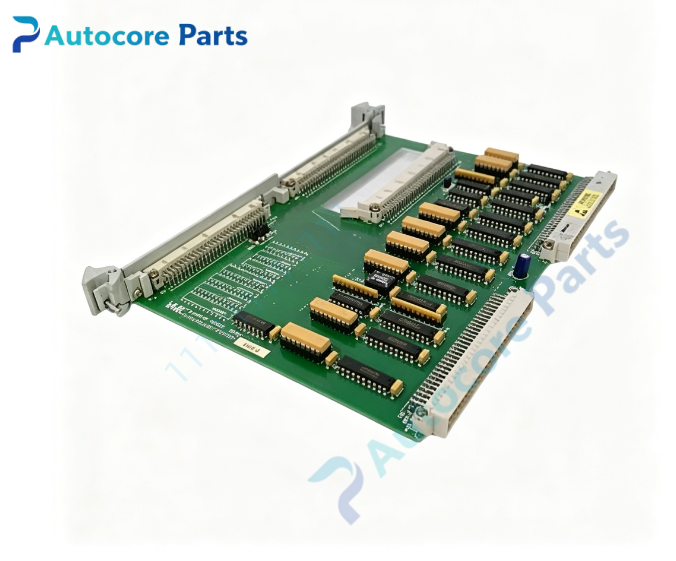

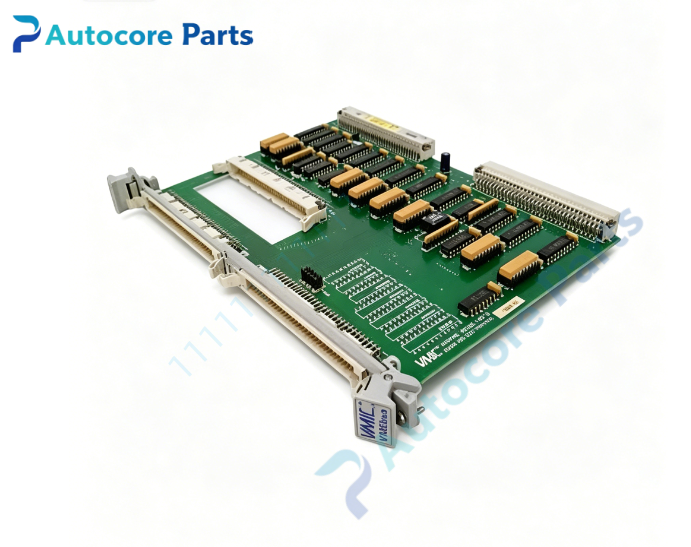

VMIC 332-999995-000 D RPTS Repeat Module

Module Feature

332-999995-000 D is a single-slot 6U VMEbus RPTS signal repeat module developed by VMIC,specially designed for VMIC fiber reflective memory ring network. It regenerates and reshapes serial fiber differential signals,restoring signal amplitude and timing integrity to extend the effective transmission distance of the reflective memory fiber ring. The module is fully interoperable with VMIC 5530M,VMIVME-5565,VMIPCI-5565 and other 5565 family reflective memory nodes. VME bus interface supports A16/A24 addressing and D08/D16/D32 data transfer,operates as VME slave for configuration and status readback. Dual fiber ports implement ring in and ring out connection;signal path uses hardware hardwired regeneration without software latency. Built-in BIT diagnostic continuously monitors optical receive power,signal lock status and power supply health;fault condition will latch alarm flag and drive front panel LED indicator. Rugged Eurocard PCB with conformal coating,shock and vibration screened for power plant cabinet environment,widely used in gas/steam turbine distributed control,hardware-in-loop real-time simulation,aerospace test and long-distance multi-node reflective memory VME chassis.

Working principle

In reflective memory fiber ring topology,the incoming serial optical signal is converted to electrical signal,clock and data are recovered,signal waveform is reshaped and re-amplified,then converted back to optical signal and forwarded to next ring node. This hardware regeneration eliminates signal attenuation and jitter accumulated over long fiber cable. VME interface only handles configuration and fault status reading;the main signal repeater path runs transparently independent of VME bus activity. BIT circuit monitors optical receiver power level and signal synchronization state to judge fiber link health.

Onboard components

VME interface FPGA,clock and data recovery chip,signal reshaping amplifier,duplex fiber transceiver pair,BIT optical power monitoring circuit,status register bank,VME J1/J2 edge connector,front-panel dual SC fiber ports,multi-status LED array.

LED indicators

Front panel LED indicators for board +5 V power,input fiber signal lock,ring activity and link fault alarm.

Hardware self-diagnosis

Visual inspection of PCB,front ejectors and solder joints;board ID register readback verification;optical power level measurement;signal lock detection test;transparent ring throughput test;VME A16/A24 read/write communication test.

Programming software

VMIC reflective memory driver library,universal board configuration and BIT diagnostic utility,supports VxWorks,Linux and QNX real-time operating systems;software tool for fault status reading and alarm log retrieval.

Electrical & Process Parameters

Model: 332-999995-000 D Brand: VMIC Device type: 6U VMEbus RPTS fiber signal repeater module Bus standard: VMEbus, A16/A24 addressing, D08/D16/D32 transfer Fiber interface: Dual SC fiber ports Function: Serial signal regeneration,clock recovery,ring distance extension Control mode: VME slave for status readout,transparent hardware repeat,BIT built-in self-test,optical power monitoring Power supply: +5 V from VME backplane Cooling: Convection cooling Protection: Optical over-power protection,ESD protection,overcurrent protection Mounting: Standard 6U VME front panel ejector locking Protection class: PCB with optional conformal coating

Mechanical & Structure

Mounting: Standard single-slot 6U VME Eurocard Protection class: PCB with optional conformal coating

Environmental

Operating temperature: 0℃ ~ +65℃ Storage temperature: -40℃ ~ +85℃ Ambient humidity: 5~95% non-condensing Certification: CE compliant Status: VMIC 6U VME RPTS reflective memory fiber repeater board

Installation

Follow ESD safety procedure before handling.Fully power off VME chassis.Insert 332-999995-000 D into vacant 6U VME slot and lock front panel ejector latches.Connect incoming fiber ring to RX port and outgoing fiber to TX port to insert module into existing reflective memory ring.Power on chassis,load VMIC RFM driver,run BIT optical diagnostic before commissioning.

Interface

VME J1/J2 backplane connector,front-panel dual SC fiber ports,fault status signal pins.

Diagnostic

Board undetected: poor VME backplane contact,damaged edge connector or incorrect base address jumper setting. No signal lock: reversed TX/RX fiber wiring,low optical input power or transceiver fault. Ring communication interrupt: fiber cable damage or repeater hardware failure. BIT alarm triggered: optical power out of operating threshold.

Product Brief

VMIC 332-999995-000 D single height 6U VME RPTS repeat module,transparent hardware fiber signal regeneration and clock recovery function,extends reflective memory fiber ring distance,compatible with VMIC 5565 series RFM nodes,for long-distance distributed real-time control and hardware-in-loop simulation VME systems.
