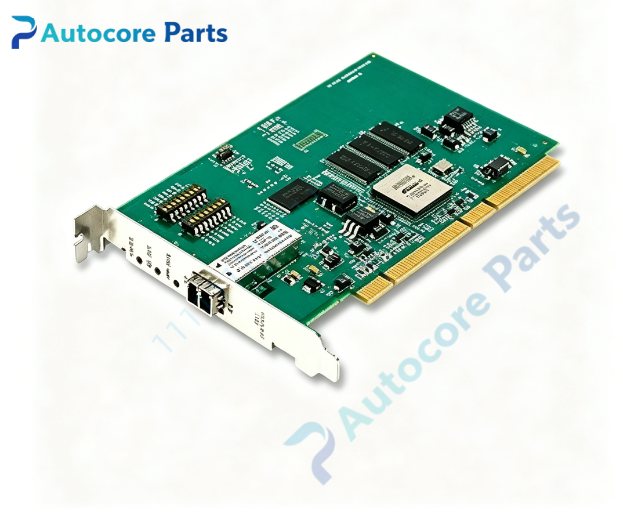

VMIC CPCI-5565PIORC-210000 Reflective Memory Board

Module Feature

VMIC CPCI-5565PIORC-210000 is a CPCI form factor reflective memory interface board. It supports high-speed real-time reflective memory network data transmission between multiple nodes, featuring low transmission latency and strong determinism. Onboard dedicated control logic to achieve automatic data mirroring across the whole network without heavy CPU intervention. Equipped with interrupt trigger mechanism and status register for system event notification. Rugged board-level design, good shock and vibration resistance, suitable for embedded industrial, test and simulation systems. Widely used in real-time simulation, aerospace test, distributed motion control applications.

Working principle

The reflective memory card maps a shared physical memory space across all network nodes. Once any node writes data to local memory, the hardware automatically broadcasts the data to all other reflective memory nodes on the network, updating their local memory copies immediately. The host CPU accesses the shared memory directly just like local RAM. Hardware interrupt signals can be sent between nodes for synchronization and event trigger.

Onboard components

Reflective memory controller, high-speed serial transceiver, shared memory chip, CPCI bus interface circuit, interrupt logic circuit, status LED indicators, external fiber/coax connector interface.

LED indicators

Front panel LED indicators for power status, network link, data activity and fault alarm.

Hardware self-diagnosis

Visual inspection of PCB, connectors and soldering joints; register readback test for board identification and firmware version; memory read/write loop test; network link and node communication test; interrupt function verification.

Programming software

VMIC Reflective Memory driver and API library, supporting Windows, VxWorks, Linux real-time operating systems, configuration utilities for node ID, memory size and interrupt setup.

Electrical & Process Parameters

Model: CPCI-5565PIORC-210000 Device type: CPCI reflective memory interface module Bus standard: CompactPCI Memory type: Reflective shared memory Control mode: Hardware auto mirroring, interrupt synchronization Power supply: +5 V / 3.3 V from CPCI backplane Cooling: Conduction / convection cooling Protection: Over current, over voltage and ESD protection Mounting: CPCI standard front panel mounting Protection class: Conformal coating optional

Mechanical & Structure

Mounting: Standard 3 U CPCI board Protection class: PCB with optional conformal coating

Environmental

Operating temperature: -40℃ ~ +85℃ Ambient humidity: 5~95% non-condensing Certification: CE compliant Status: VMIC reflective memory CPCI module

Installation

Follow ESD safety procedure before installation. Power off CPCI chassis completely before inserting module into CPCI slot. Fasten front panel locking screws. Connect fiber or coaxial network cable between reflective memory nodes. Configure node ID by hardware switch or software. Load VMIC driver and run communication test before formal operation.

Interface

CPCI backplane connector, reflective memory network port (fiber or coax), interrupt output, status signal pins.

Diagnostic

Board not recognized: poor CPCI backplane contact, damaged edge connector, missing driver or wrong firmware. Network communication failure: incorrect node ID, cable damage, terminator missing, power abnormality. Data error: unstable power supply, temperature out of range, faulty memory chip. Interrupt abnormal: wrong interrupt mapping, firmware mismatch.

Product Brief

CPCI-5565PIORC-210000 VMIC CPCI reflective memory board,hardware driven real-time shared memory,for distributed simulation,industrial real-time control and aerospace test systems.
