VMIC VMIVME-7452 Eurocard IDE Storage Module

Module Feature

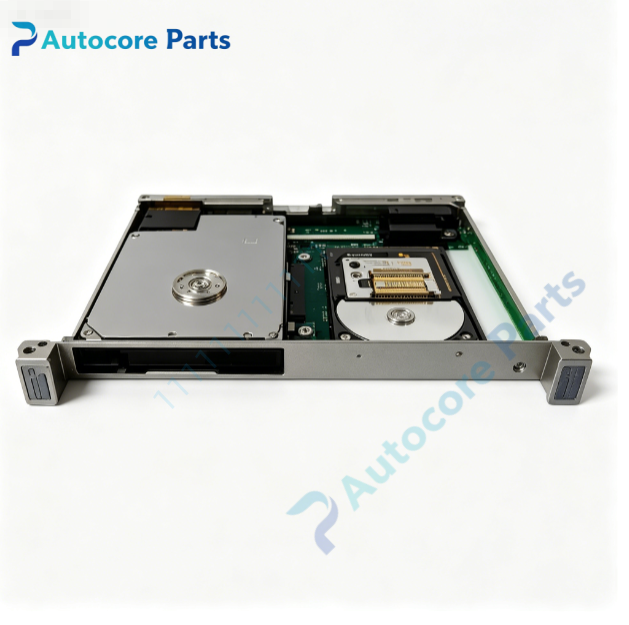

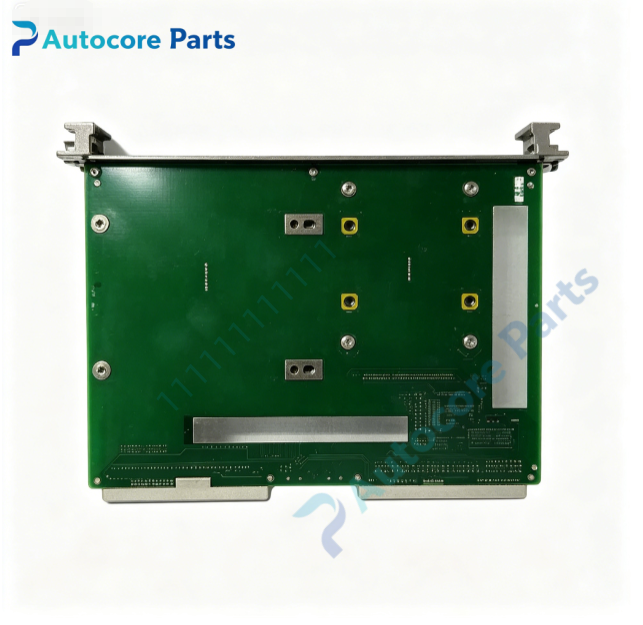

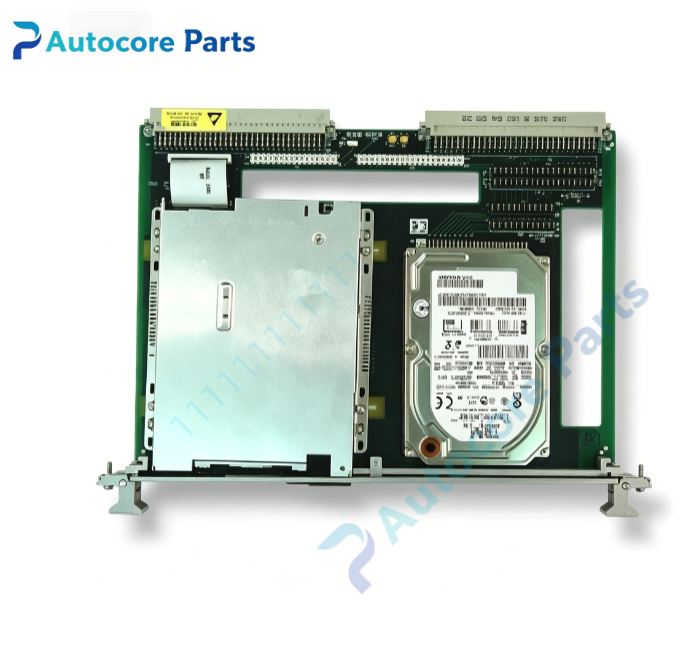

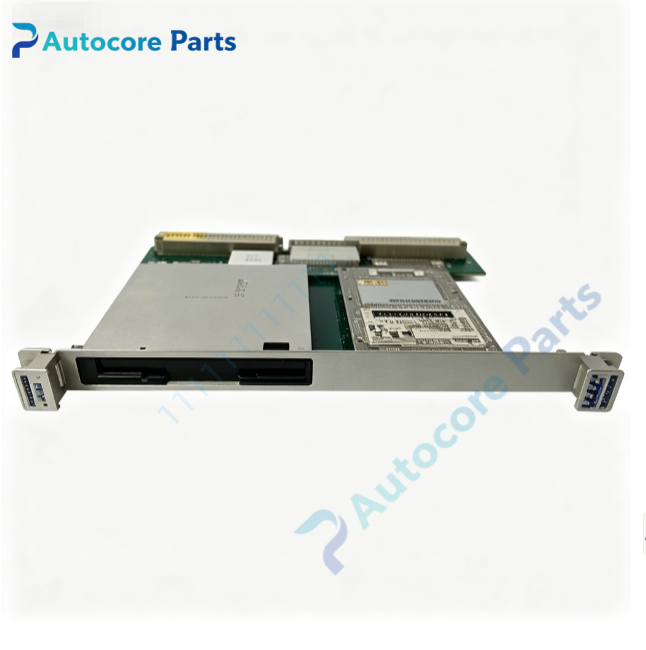

VMIVME-7452 is a single-slot 6U VMEbus storage module developed by VMIC (GE Fanuc / Abaco Systems). It adopts integrated mechanical carrier design inside standard 6U VME card frame,supports installation of 2.5 inch IDE hard disk and 3.5 inch floppy disk drive. The carrier comes with shock damping structure to protect mechanical disk media under industrial vibration environment. The board works as VME slave device and communicates with VME single board computer via VME bus. Front panel is fitted with disk eject opening and activity LED indicator. Onboard FPGA converts VME bus protocol to standard IDE ATAPI control signals. Built-in BIT diagnostic continuously monitors drive power supply,media presence and read/write error events;fault status can be read through VME control register. Rugged Eurocard PCB with conformal coating,shock and vibration screened for power plant cabinet environment,widely used in gas/steam turbine VME control chassis local historical data storage,aerospace ground test bench and hardware-in-loop real-time simulation VME chassis.

Working principle

VME host controller sends IDE read/write commands to VMIVME-7452 over VME bus. Onboard VME interface FPGA converts VME bus address and data signals into IDE control signals to operate the hard disk and floppy drive. Disk data is temporarily cached and transmitted back to VME CPU. BIT circuit monitors disk power rail,media detection and access errors in real time,refreshing activity LED and fault status register accordingly.

Onboard components

VME interface FPGA,IDE & floppy control logic,data buffer register,shock-damped mechanical disk carrier,power regulation circuit,BIT health monitoring hardware,VME J1/J2 edge connector,front-panel status LED array.

LED indicators

Front panel LED indicators for disk read/write activity and module fault alarm.

Hardware self-diagnosis

Visual inspection of PCB,components and solder joints;board ID register readback verification;media presence detection test;IDE disk read/write test;VME A16 register read/write communication validation.

Programming software

VMIC storage driver library and configuration utility,supports VxWorks,Linux and QNX real-time operating systems;software tool for disk mounting,media formatting and BIT error log reading.

Electrical & Process Parameters

Model: VMIVME-7452 Brand: VMIC Device type: 6U VMEbus IDE hard disk & floppy storage module Bus standard: VMEbus, A16 short addressing, D08/D16/D32 data transfer Supported Drives:2.5 inch IDE hard disk,3.5 inch floppy disk drive Control mode: VME slave access,onboard shock-damped disk carrier,BIT disk health monitoring,overcurrent power protection Power supply: +5 V, +12 V from VME backplane Cooling: Convection cooling Protection: Disk power overcurrent cutoff,transient surge clamping Mounting: Standard single-height 6U VME front panel ejector locking Protection class: PCB with optional conformal coating

Mechanical & Structure

Mounting: Single-slot 6U VME Eurocard Protection class: PCB with optional conformal coating

Environmental

Operating temperature:0℃ ~ +50℃ Storage temperature:-40℃ ~ +85℃ Ambient humidity:20~80% non-condensing Certification: CE compliant Status: VMIC 6U VME single-slot IDE mechanical storage board

Installation

Follow ESD safety procedure before handling.Fully power off VME chassis.Insert VMIVME-7452 into vacant 6U VME slot and lock front panel ejector latches.Install IDE hard disk and floppy drive into onboard carrier.Set master/slave jumper for IDE device.Power on chassis,load VMIC storage driver,run BIT media detection diagnostic before commissioning.

Interface

VME J1/J2 backplane connector,onboard IDE and floppy drive headers,disk activity and fault status register pins.

Diagnostic

Board undetected: poor VME backplane contact,damaged edge connector or incorrect A16 address setting. Disk undetected: drive power failure or master/slave jumper misconfiguration. Disk read/write error: bad disk sector or IDE controller hardware fault. Fault LED lit: power rail overcurrent or media access timeout.

Product Brief

VMIC VMIVME-7452 single height 6U VME IDE storage module,onboard shock-damped carrier for 2.5 inch IDE hard disk and 3.5 inch floppy drive with BIT disk health monitoring,provides local persistent data storage for turbine control logs and aerospace hardware-in-loop simulation VME racks.
