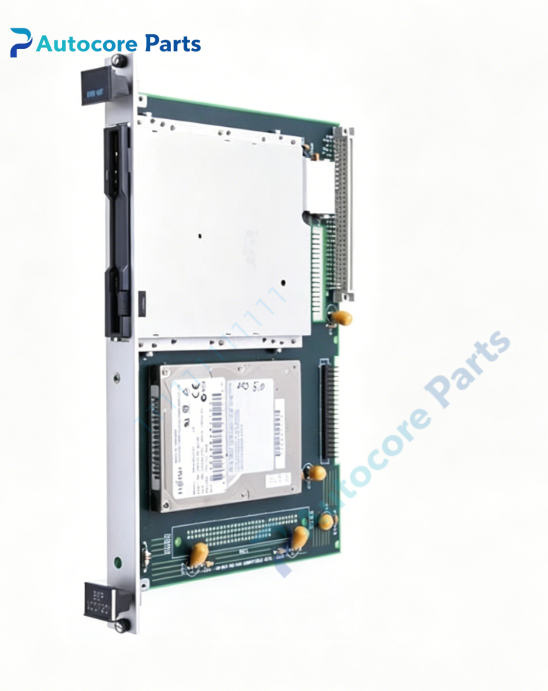

XYCOM 90636107 Digital I/O Module

Technical Specifications

Model:90636107

Brand:XYCOM

Product type:VME Bus Rack Mount Digital I/O Module

Power supply:5V,±12VDC

Bus type:VME bus

Signal type:Isolated digital input / relay digital output

Channel:Multi-channel isolated digital I/O

Mounting:3U VME rack slot

Weight:0.78kg

Operating temperature:0℃ ~ +70℃

Storage temperature:-40℃ ~ +85℃

Relative humidity:5%~95%,non-condensing

Certification:CE,UL

System compatibility

90636107 belongs to XYCOM VME series digital I/O module.

It can work with XYCOM VME bus SBC such as XYCOM 1840 and XVME series I/O modules.

Compatible with turbine,compressor and legacy DCS control systems.

Commonly used for power plant,oil & gas,petrochemical old equipment monitoring,maintenance and spare replacement.

Function

Multi-channel isolated digital signal acquisition and relay output control.

Collect field switch status,interlock signal,limit switch and alarm contact signal.

Relay output for valve control,auxiliary drive and fault trip command.

Opto-isolation design to separate field circuit and VME internal bus.

On-board self-diagnosis,channel break and power fault detection.

Support VME bus data read/write,channel parameter configuration and interrupt trigger.

Installation

Insert the module into 3U VME rack slot and fasten front panel screws.

Connect VME backplane power and bus signal.

Wire field dry contact or voltage digital signal to terminal block.

Power on,set VME base address and channel mode(input or output).

Test each channel signal acquisition and relay output action.

Interface

VME backplane connector,digital signal terminal block,LED indicators:RUN,FAULT,CHANNEL STATUS.

Feature

Standard 3U VME module,easy to integrate into existing XYCOM VME control rack.

Optoelectronic isolation between field side and control side,anti-interference for plant environment.

Combined digital input and relay output,suitable for interlock and trip logic of turbine system.

Discontinued obsolete industrial board,supply only for old production system spare replacement.

Rugged PCB design,shock and vibration resistance for continuous long-time operation.

Diagnostic

Check RUN,FAULT,CHANNEL STATUS LED;no communication:check VME backplane power and address setting;channel no signal:inspect field contact wiring and isolation circuit;relay no action:check output load and relay coil.

Product Brief

XYCOM 90636107 is VME bus 3U multi-channel isolated digital I/O module.

It collects field switch signals and executes relay output logic for legacy turbine and compressor control system,widely applied to spare replacement for petrochemical and power plant old DCS renovation.
