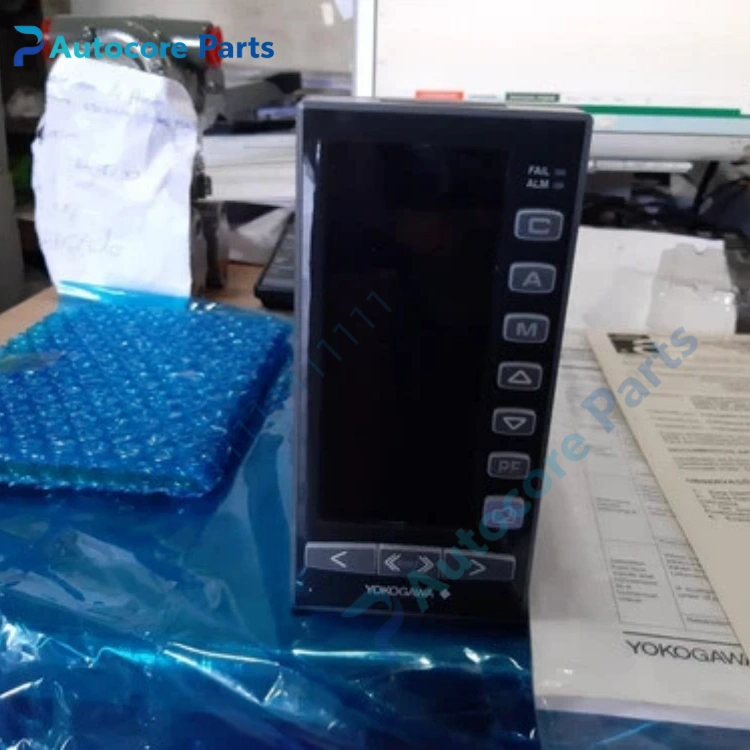

Yokogawa YS1700-000 Single Loop Controller

Feature & Principle

It is a panel-mounted programmable single-loop controller of Yokogawa YS1000 series. It receives analog signals from temperature, pressure and flow transmitters and executes dual PID closed-loop control. It supports function block programming and legacy text programming, compatible with old YS170 and SLPC program conversion. It integrates hard manual backup function to maintain valve output when communication or host system fails. It supports RS485 Modbus communication to exchange data with PLC, HMI or CENTUM DCS, widely used as independent control or DCS backup loop.

Specifications

Model: YS1700-000 Brand: Yokogawa Display: Color dot matrix LCD Control: Dual PID, auto-tuning Program mode: Text programming, function block programming Communication: RS485, Modbus Power supply: 100-240VAC / 24VDC optional Output: Analog 4-20mA, relay alarm Mounting: Panel cutout mount Application: Power boiler, petrochemical, chemical, water treatment process control Certification: CE, FM non-incendive optional

Components & Diagnostics

Main control board, color LCD module, analog input/output circuit, manual backup circuit, status LED, front keypad. Common faults: display failure, output drift, communication loss, calibration deviation, power supply damage.

Product Brief

YS1700-000 single loop controller, Yokogawa programmable PID control spare widely used for boiler and process control cabinet overhaul and replacement.
