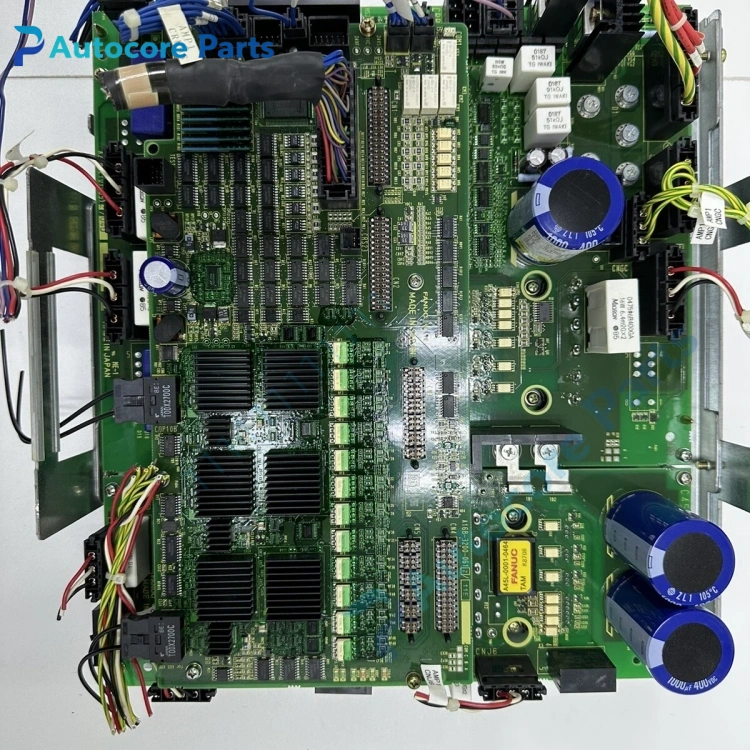

A16B-3200-0612 Servo Control Board Unit

Feature & Principle

It receives encoder position feedback signals from servo motors, completes closed-loop position, speed and torque operation calculation, outputs control instructions to the servo power unit. It supports synchronous control of up to 6 axes, realizes high-precision interpolation and motion control for milling, turning and composite CNC machine tools.

Specifications

Model: A16B-3200-0612 Brand: FANUC Function: 6-axis servo control Application: FANUC CNC system servo amplifier Installation: Plug into servo amplifier rack Certification: CE

Components & Diagnostics

DSP control chip, signal isolation circuit, encoder interface, bus connector, memory chip. Common faults: axis alarm, position deviation overrange, communication interruption, no servo ready, connector pin corrosion.

Product Brief

A16B-3200-0612 servo board, FANUC CNC spare widely used for machining center, lathe and multi-axis composite machine tool servo drive maintenance.
