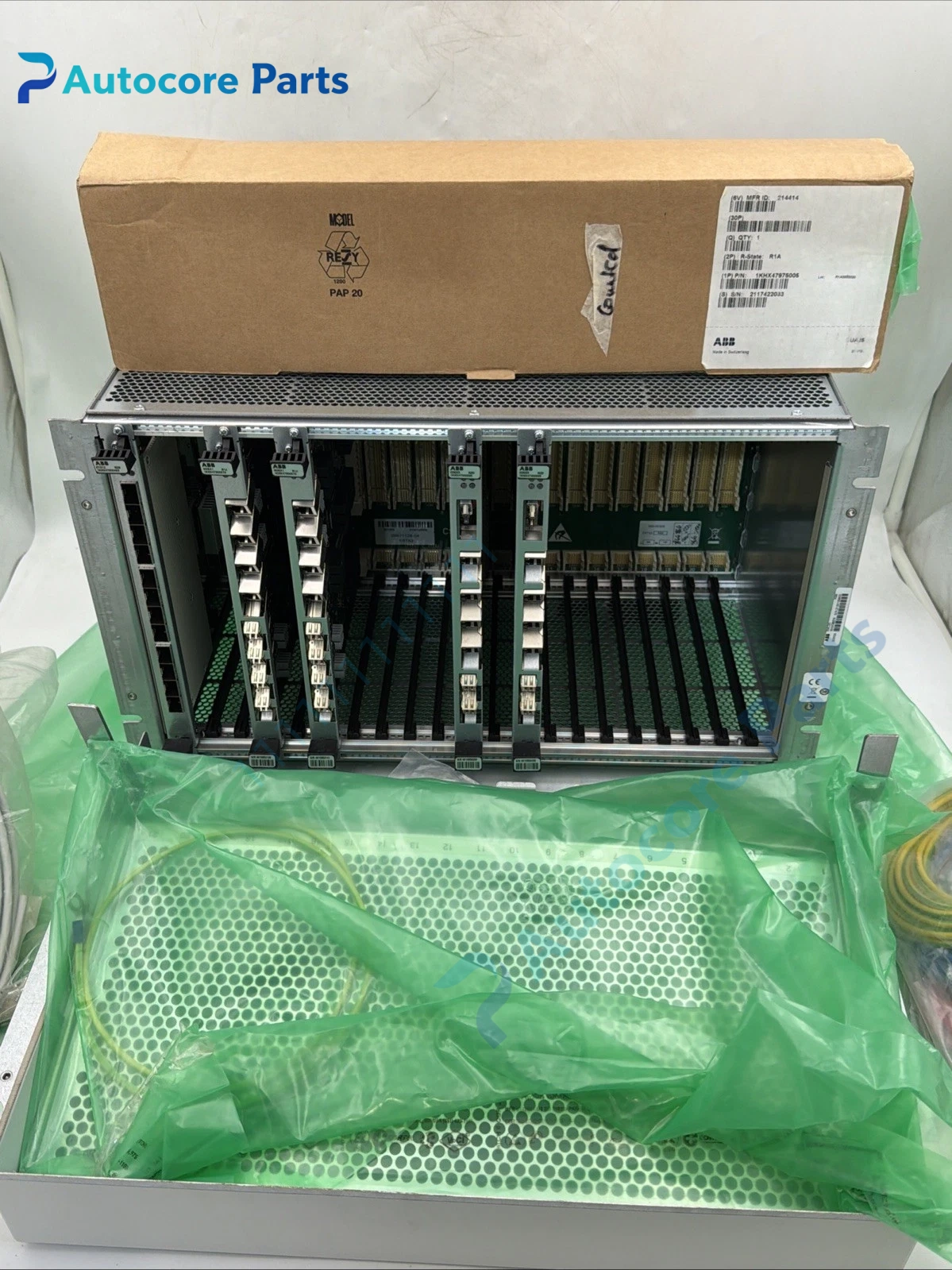

ABB 1KHX47950215 Converter Chassis Unit

Module Feature

1KHX47950215 is ABB high‑power converter mechanical chassis assembly for ACS800 series cabinet‑type frequency converters. It provides mechanical mounting positions for power unit, gate unit, control circuit boards, busbar and cooling fan components. The chassis supports installation of related spare parts such as 1KHX47900463,1KHX47900579,1KHX47900595 mentioned in the source list. It is a metal mechanical structural frame, no independent electronic function, used for assembling and fixing each functional component of the drive unit, widely used in heavy‑industry variable‑speed drive occasions.

Working principle

As mechanical bearing frame, it does not participate in electrical signal operation. Provide positioning, fixing and heat‑dissipation air‑duct layout for power modules, control boards and cooling components inside frequency converter. Ensure reliable installation of each component and guide cooling air flow to take away heat loss of power devices.

Onboard components

Metal frame main body, module mounting bracket, busbar fixing insulator, cooling air duct baffle, screw fastener, wiring support.

LED indicators

No LED indicators, belongs to pure mechanical structural part.

Hardware self‑diagnosis

No electronic self‑diagnosis function. Visual inspection for frame deformation, insulator crack, screw loosening during regular maintenance.

Programming software

No configuration software, mechanical assembly accessory.

Electrical & Process Parameters

Model:1KHX47950215 Brand:ABB Device type:Frequency Converter Chassis Assembly Applicable series:ACS800 high‑power cabinet drive Function:Mechanical support, component mounting and cooling air‑duct guiding for converter internal parts

Mechanical & Structure

Mounting:Installed inside ABB drive cabinet Protection class:IP20 (inside cabinet) Housing:Heavy‑duty coated metal frame assembly

Environmental

Operating temperature:-5℃ ~ +40℃ Storage temperature:-40℃ ~ +85℃ Ambient humidity:5~95% non‑condensing Certification:Compliant with ABB drive original mechanical specification Status:Original ABB converter mechanical spare chassis assembly

Installation

Install chassis frame inside frequency‑converter cabinet, fix mounting screws in place. Sequentially install power modules, gate units, control boards, busbars and cooling fan according to ABB assembly drawing. Check air‑duct sealing and all fastening torque after assembly.

Interface

Multiple mechanical mounting hole positions, busbar insulation fixing positions, cooling air‑duct interface.

Diagnostic

Abnormal vibration noise:Chassis mounting screw loose or component fixing bracket deformation. Air‑short‑circuit over‑heating:Air‑duct baffle missing or damaged, cooling airflow short‑circuited. Insulator flash‑over:Insulating part cracked or contaminated with dust.

Product Brief

ABB 1KHX47950215 mechanical chassis assembly, structural frame for ACS800 series cabinet‑type frequency converter, used for mounting power modules, circuit boards and cooling parts, realize mechanical fixation and cooling air‑flow guidance for drive internal components.
