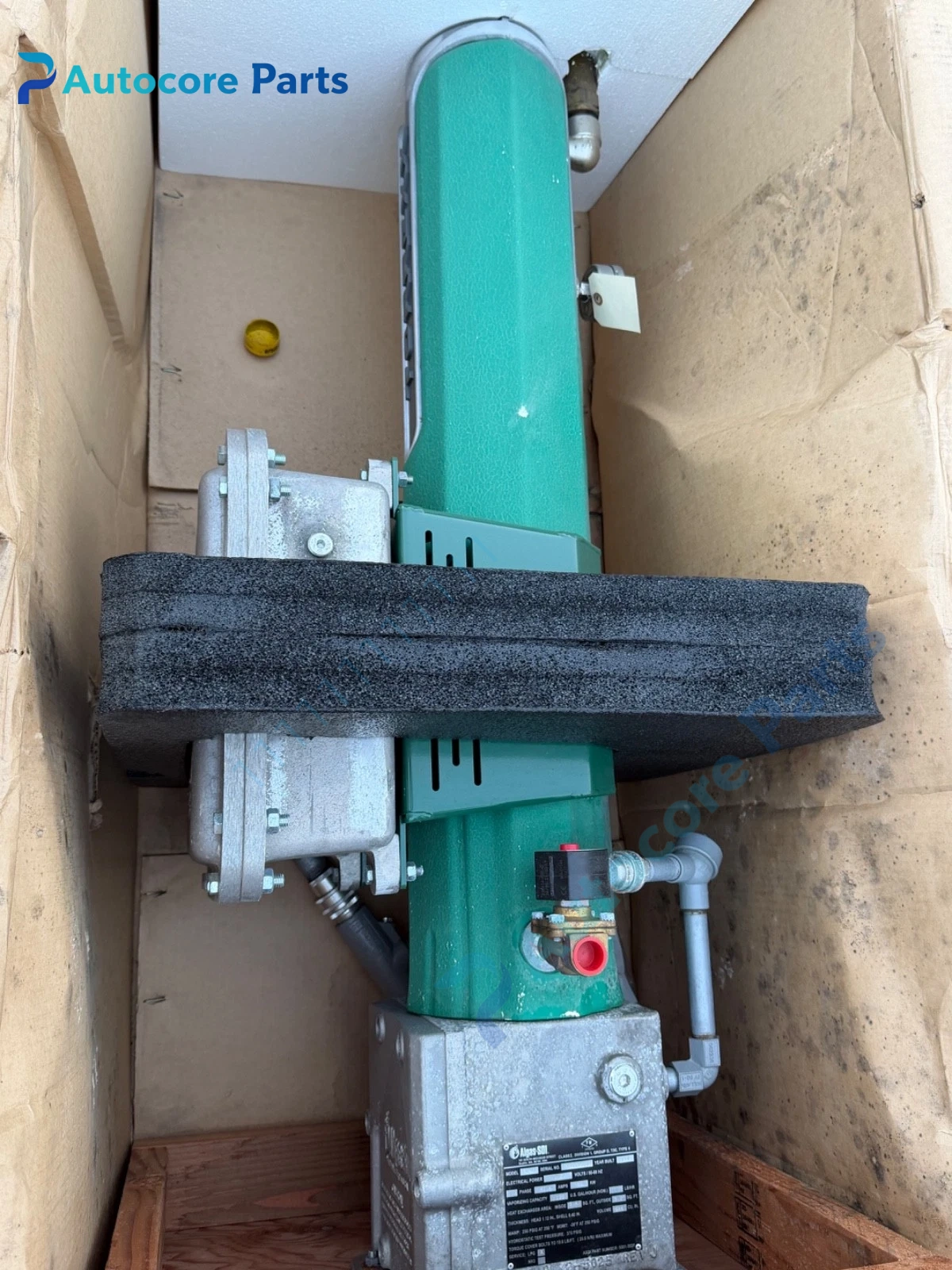

Algas‑SDI TX240‑X3H LPG Vaporizer Unit

Module Feature

TX240‑X3H is Algas‑SDI Torrexx series vertical electric single‑core explosion‑proof LPG vaporizerManualsLib. Model decoding: TX240 stands for base model with 120 GPH vaporization capacity; X3H means three‑phase 415V AC power variant. It adopts finned cast‑aluminum heating core with embedded heating elements, equipped with proprietary Liqui‑Safe anti‑liquid‑carry‑over safety valve, prevents liquid LPG from entering downstream gas pipeline. Explosion‑proof enclosure design, suitable for hazardous classified areas. It converts liquid propane / butane into gaseous LPG, widely used in petrochemical, industrial heating, gas mixing and large‑scale commercial gas supply systems.

Working principle

Liquid LPG flows into pressure vessel through inlet solenoid valve. Cast‑in electric heating elements heat the aluminum core, liquid absorbs heat and vaporizes into gas. Built‑in K‑type thermocouple maintains stable core temperature. Liqui‑Safe safety valve trips and provides visual indication once liquid carry‑over occurs, to protect downstream equipment, gaseous LPG outputs from vapor outlet port.

Onboard components

Cast‑aluminum finned heating core with embedded heating elements, K‑type thermocouple temperature sensor, Liqui‑Safe anti‑liquid‑carry‑over safety valve, liquid inlet solenoid valve, pressure relief safety valve, explosion‑proof electrical terminal box, vertical pressure vessel housing, gas outlet port, liquid inlet port.

LED indicators

Local explosion‑proof terminal box has power‑on / fault status indicator lamps; Liqui‑Safe valve provides mechanical visual trip indication for liquid carry‑over fault.

Hardware self‑diagnosis

Monitor core over‑temperature, heating element failure, solenoid valve anomaly and high pressure over‑limit. Over‑temperature protection cuts off heating power automatically; Liqui‑Safe mechanical trip alarm for liquid carry‑over fault.

Programming software

No upper‑computer configuration software; parameters set via local terminal wiring and internal temperature‑control circuit.

Electrical & Process Parameters

Model:TX240‑X3H Brand:Algas‑SDI Device type:Vertical Electric Explosion‑Proof LPG Vaporizer Vaporizing capacity:120 GPH Power supply:3‑Phase 415V AC Heating core:Cast‑aluminum finned core with cast‑in heating elements Safety feature:Liqui‑Safe liquid carry‑over prevention valve Medium:Liquefied petroleum gas (propane / butane) Function:Convert liquid LPG to gaseous LPG for industrial gas‑supply system

Mechanical & Structure

Mounting:Vertical floor‑stand mounting Protection class:Explosion‑proof hazardous‑area rated Housing:Vertical pressure vessel with cast‑aluminum heating core assembly

Environmental

Operating temperature:-40℃ ~ +55℃ Storage temperature:-40℃ ~ +65℃ Ambient humidity:5~95% non‑condensing Certification:UL / ASME pressure vessel, explosion‑proof hazardous‑location compliant Status:Algas‑SDI original Torrexx series electric vaporizer

Installation

Fix unit on solid foundation. Connect liquid LPG inlet pipeline and gaseous‑phase outlet pipeline, install safety relief valve vent pipe. Complete three‑phase 415V explosion‑proof electrical wiring. Perform pressure leak test, set temperature‑control parameters before putting into service.

Interface

Liquid LPG inlet port, gaseous LPG outlet port, safety relief valve port, three‑phase explosion‑proof electrical terminal interface.

Diagnostic

Insufficient gas output:Heating element partial damage or liquid inlet pressure abnormal. Liquid carry‑over trip:Liqui‑Safe valve actuated, check liquid‑line pressure and vaporizer load. Over‑temperature alarm:Cooling condition poor or temperature‑control circuit fault. No vapor generation:Heating power loss or inlet solenoid valve failure.

Product Brief

Algas‑SDI TX240‑X3H Torrexx vertical explosion‑proof electric LPG vaporizer, 120 GPH capacity, 415V three‑phase power, converts liquid LPG into gaseous fuel for industrial hazardous‑area gas‑supply applications.
