AuCom MVE‑0200‑V11 MV Soft‑Starter Unit

Module Feature

MVE‑0200‑V11 belongs to AuCom M‑Series MVE medium‑voltage soft‑starter product familyAuCom. Model decoding: 0200 = rated main‑circuit current 200 A; V11 = rated system voltage 10/11 kV. It adopts three‑phase high‑power SCR power phase‑arm assembly with fiber‑optic triggering. It realizes soft‑start and soft‑stop functions for medium‑voltage large‑power motors, effectively reducing inrush starting current, mechanical shock and grid voltage dip. It integrates comprehensive motor protection logic such as overload, locked‑rotor, phase loss, current unbalance and ground‑fault protection. Applied in mining, water‑supply, petrochemical industry for driving fans, pumps and compressors.

Working principle

Fiber‑optic signal triggers high‑voltage SCR thyristors, continuously adjusting thyristor conduction angle to raise motor terminal voltage smoothly, so as to limit starting current and complete soft‑starting. After motor speed‑up, the internal bypass contactor closes to short‑circuit the SCR power arms, and the motor runs at full‑voltage. Soft‑stop function gradually reduces output voltage to realize smooth ramp‑down shutdown, avoiding water‑hammer effect for pump loadsAuCom.

Onboard components

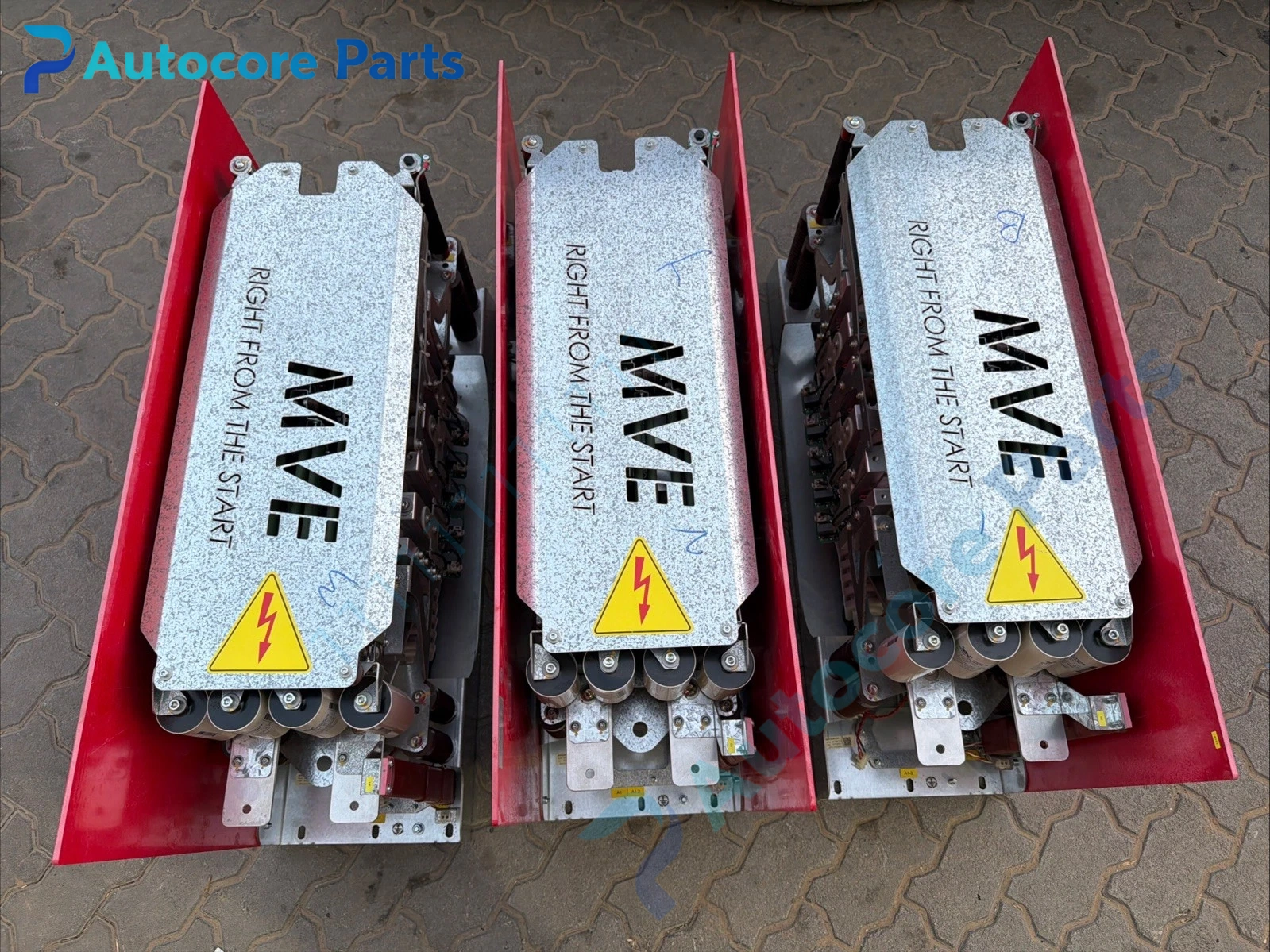

Three‑phase SCR thyristor phase‑arm assemblies, fiber‑optic trigger interface, bypass contactor unit, current transformer CT set, power interface board, multi‑lingual controller unit, optical fiber communication cable, high‑voltage metal‑enclosed cabinet assemblyAuCom.

LED indicators

Local controller panel has LED status lamps, showing power‑on, running, fault and alarm information; cabinet door also has auxiliary status indication lamps.

Hardware self‑diagnosis

Self‑diagnosis covers SCR short‑circuit fault, CT abnormality, fiber‑optic communication loss, over‑temperature, phase loss, current imbalance, ground fault. Fault codes and event logs can be viewed on the local controller or upper monitoring systemAuCom.

Programming software

Parameter configuration, start‑curve setting and fault‑log reading are performed via AuCom local controller panel; supporting upper‑computer software for data analysis.

Electrical & Process Parameters

Model:MVE‑0200‑V11 Brand:AuCom Device type:Medium‑Voltage Motor Soft‑Starter Rated current:200 A Rated system voltage:10/11 kV Control supply:85‑264 VAC / 90‑350 VDC Frequency:50 / 60 Hz Short‑time withstand current:50 kA 1 s Function:Soft‑start, soft‑stop and multi‑protection for 11kV medium‑voltage AC motor

Mechanical & Structure

Mounting:Complete cabinet‑type unit installed in industrial power‑distribution room Protection class:IP4X (IP54 optional)AuCom Housing:Hot‑dip galvanized metal cabinet

Environmental

Operating temperature:-10℃ ~ +60℃ (derating above 50℃) Storage temperature:-40℃ ~ +85℃ Ambient humidity:5~95% non‑condensing Certification:Compliant with IEC medium‑voltage equipment standards Status:AuCom original M‑Series medium‑voltage soft‑starter assembly

Installation

Fix the complete cabinet in power‑distribution room, connect medium‑voltage main‑circuit incoming / outgoing cables, connect control‑power supply and interlock signal wiring. Set starting current ramp, protection threshold parameters on local controller, then complete motor starting commissioning.

Interface

Medium‑voltage main‑circuit busbar terminals, control‑power terminals, dry‑contact signal interlock terminals, communication interface for upper monitoring.

Diagnostic

Excessive starting current:Improper starting‑current parameter setting or motor mechanical jamming. SCR fault alarm:Thyristor damage or fiber‑optic trigger channel anomaly. Cannot switch‑on bypass contactor:Bypass coil fault or mechanical interlock jam. Over‑temperature alarm:Cabinet cooling system failure or long‑time heavy‑load operation.

Product Brief

AuCom MVE‑0200‑V11 medium‑voltage soft‑starter, rated 200 A / 11 kV, adopts SCR phase‑arm + bypass‑contactor architecture, for soft‑start / soft‑stop and comprehensive protection of large‑power medium‑voltage motors in heavy‑industry sites.
