ABB 266DRHFSSB2S3 Differential Pressure Transmitter

Feature & Principle

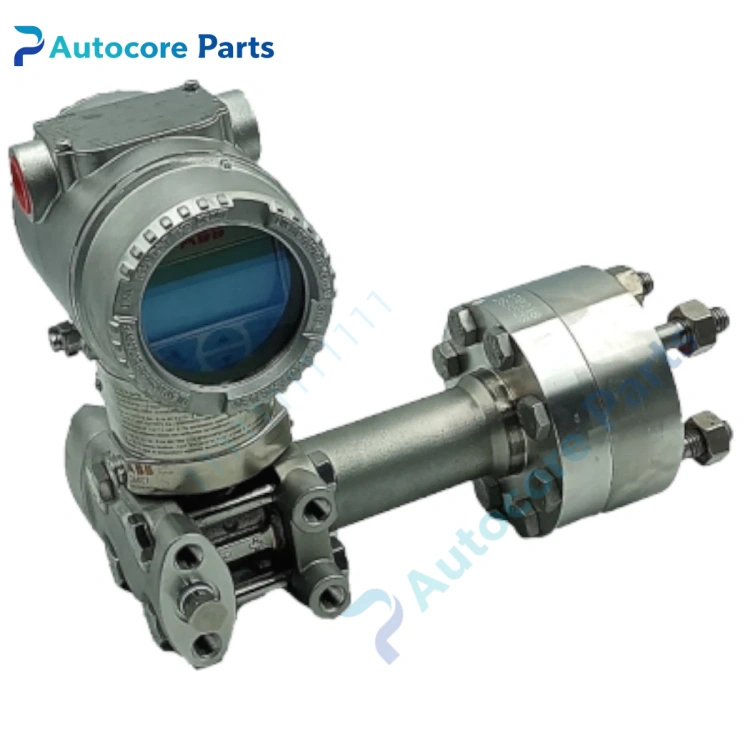

It is ABB 266DRH series capillary remote seal intelligent differential pressure transmitter. It adopts capacitive sensing element, matched with fully welded remote diaphragm seal and capillary filled with transmission fluid. The diaphragm isolates high-temperature, viscous or corrosive process medium to protect the sensor core. The pressure signal is transmitted to the sensing module through filling liquid, converted into 4-20mA analog plus HART digital signal. It supports TTG through-glass local operation without opening cover, built-in pipeline blockage diagnosis, plug-and-play electronic assembly for convenient on-site replacement.

Specifications

Model: 266DRHFSSB2S3 Brand: ABB Series: 2600T 266DRH Communication: 4-20mA + HART Basic accuracy: ±0.06% FS Seal structure: All-welded remote diaphragm seal with capillary Wetted material: 316L stainless steel diaphragm Protection class: IP66 / NEMA4X Safety certification: SIL2 single, SIL3 redundant Display: Local LCD display Mounting: Bracket mounting Application: Petrochemical, refining, chemical plant high viscosity, high temperature medium tank level and throttling flow measurement Certification: ATEX, IECEx, PED Cat III

Components & Diagnostics

Capacitance sensor module, electronic transmitter assembly, LCD display, capillary remote seal assembly, filling fluid, sealing gasket. Common faults: capillary leakage, signal drift, HART communication failure, diaphragm deformation and damage, zero point drift caused by liquid static pressure.

Product Brief

266DRHFSSB2S3 remote seal differential pressure transmitter, ABB 2600T series process instrument spare widely used for high temperature viscous medium level overhaul and replacement.
