Technical Specifications

Model:3BSE015088R1(PFSK162)

Brand:ABB

Product Type:Signal conditioning and processing board

Power Supply:24VDC,Power consumption 8‑15W

Signal Input:2‑4 channels load‑cell tension sensor input

Analog Output:4 channels,0‑10V /4‑20mA

Digital I/O:8DI /8DO

Communication Interface:Ethernet,Dual RS‑232

Isolation:120VDC channel isolation

Excitation Output:0.5A rms,330Hz regulated excitation current

Feature:On‑board DSP processing,front‑panel LED status indicator,rack plug‑in installation

System Compatibility:ABB Advant OCS,MasterPiece control system,paper‑machine tension control system

Remark:Legacy EOL spare component;confirm rack hardware version before replacement

Module Form:Rack‑mount plug‑in PCB board

Weight:3.50 kg

Dimension:220 mm×150 mm×75 mm

Protection Grade:IP20

Certification:CE

Working Temperature:‑10℃ ~ +60℃,non‑condensing

Storage Temperature:‑40℃ ~ +85℃

Humidity:5%‑95% non‑condensing

Application:Papermaking,film,textile industry,collect tension sensor signal,complete signal conditioning,calculation and output for web tension closed‑loop control,equipment overhaul and spare‑part replacement.

Product Details

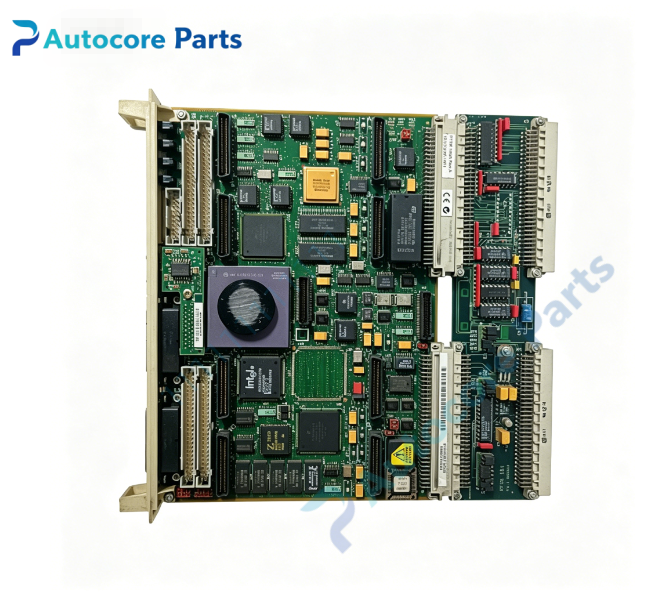

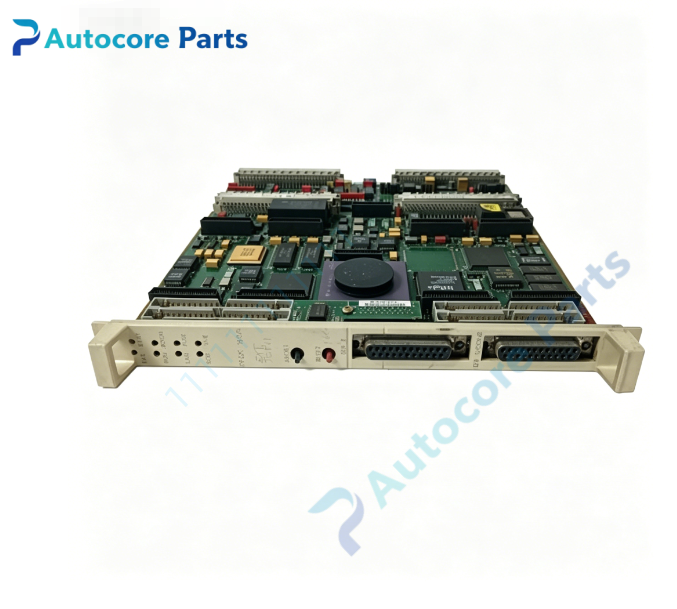

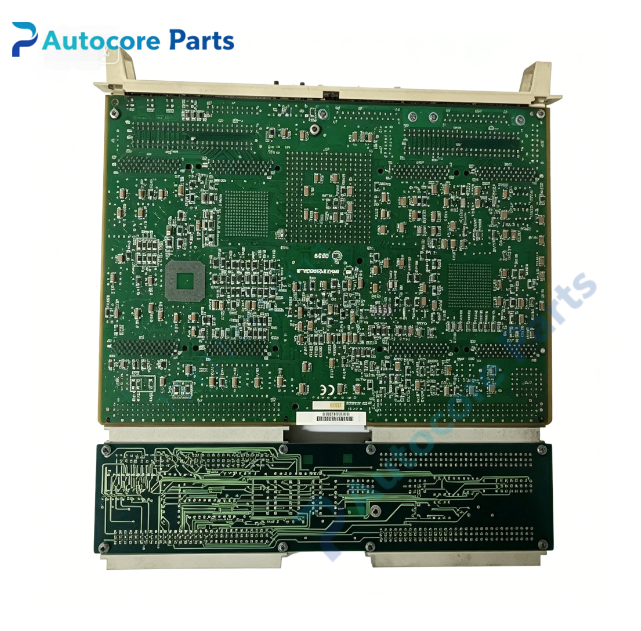

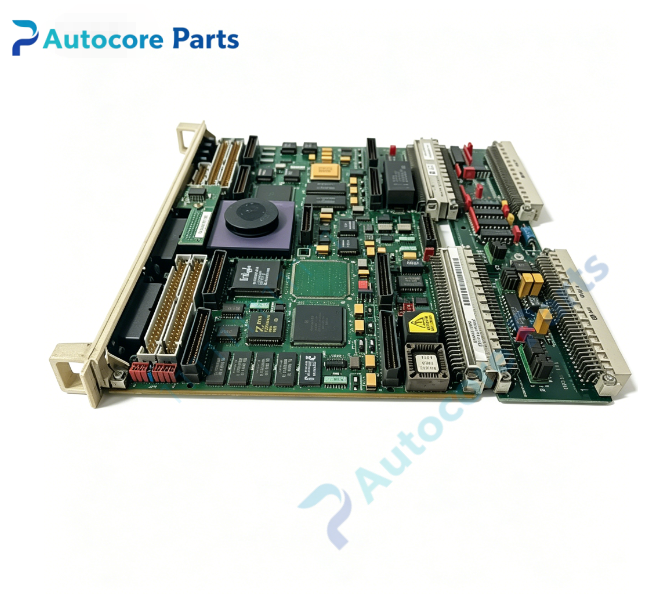

3BSE015088R1,type PFSK162,is ABB high‑performance signal conditioning and processing board,mainly used for Advant / MasterPiece system tension measurement control.

It receives signal from Pressductor tension load cell,provides regulated excitation power for sensor,completes signal conditioning,calculation and conversion. Equipped with multi‑channel analog and digital I/O,realizes field signal acquisition and control output. Ethernet and dual RS‑232 interfaces realize data interaction with upper host system.

Board failure will cause tension measuring value abnormal,tension control disorder,even web break accident. Widely used for paper‑making machine tension control system overhaul and spare‑part replacement.

Note:This is legacy EOL spare component,widely used for process industry spare‑part replacement.
